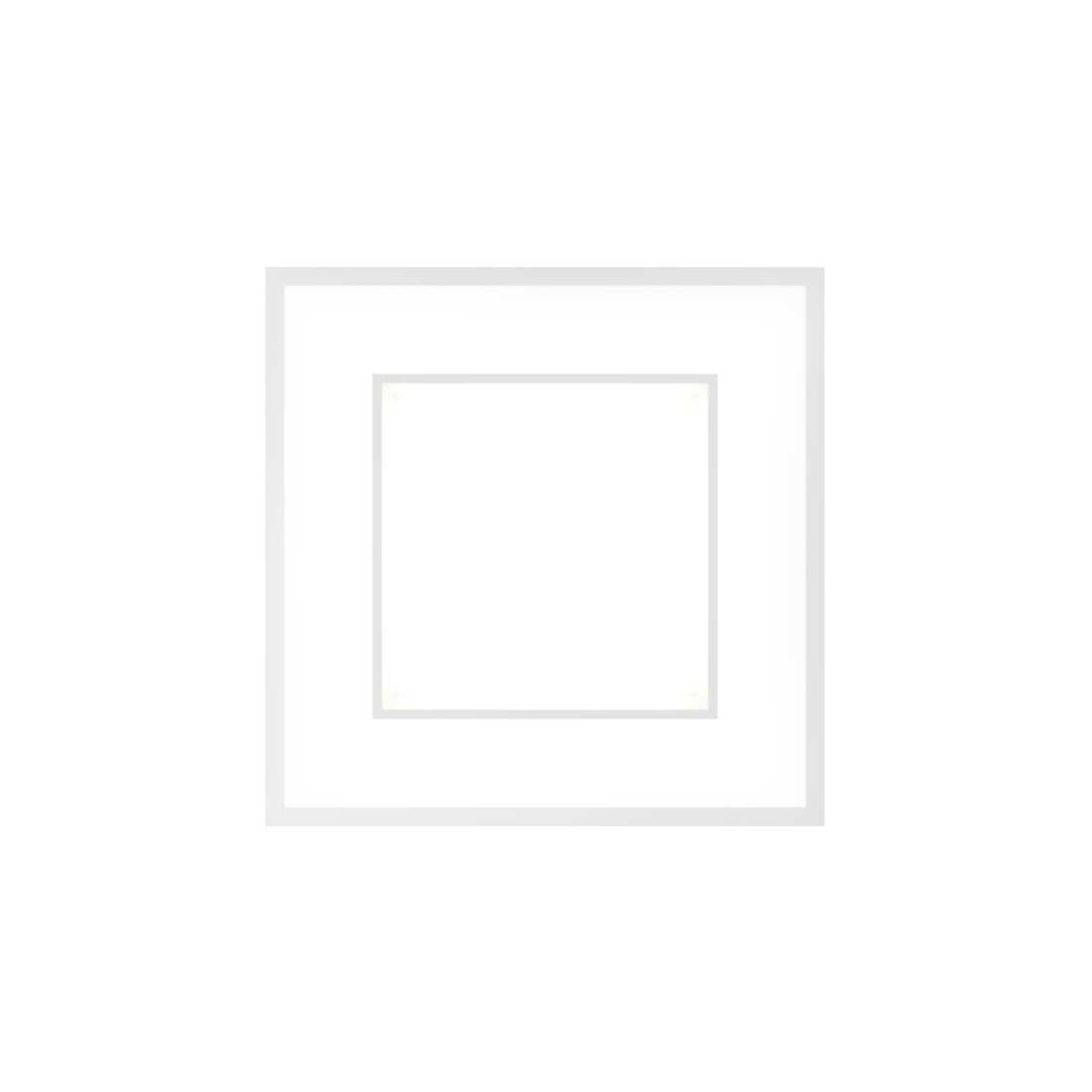

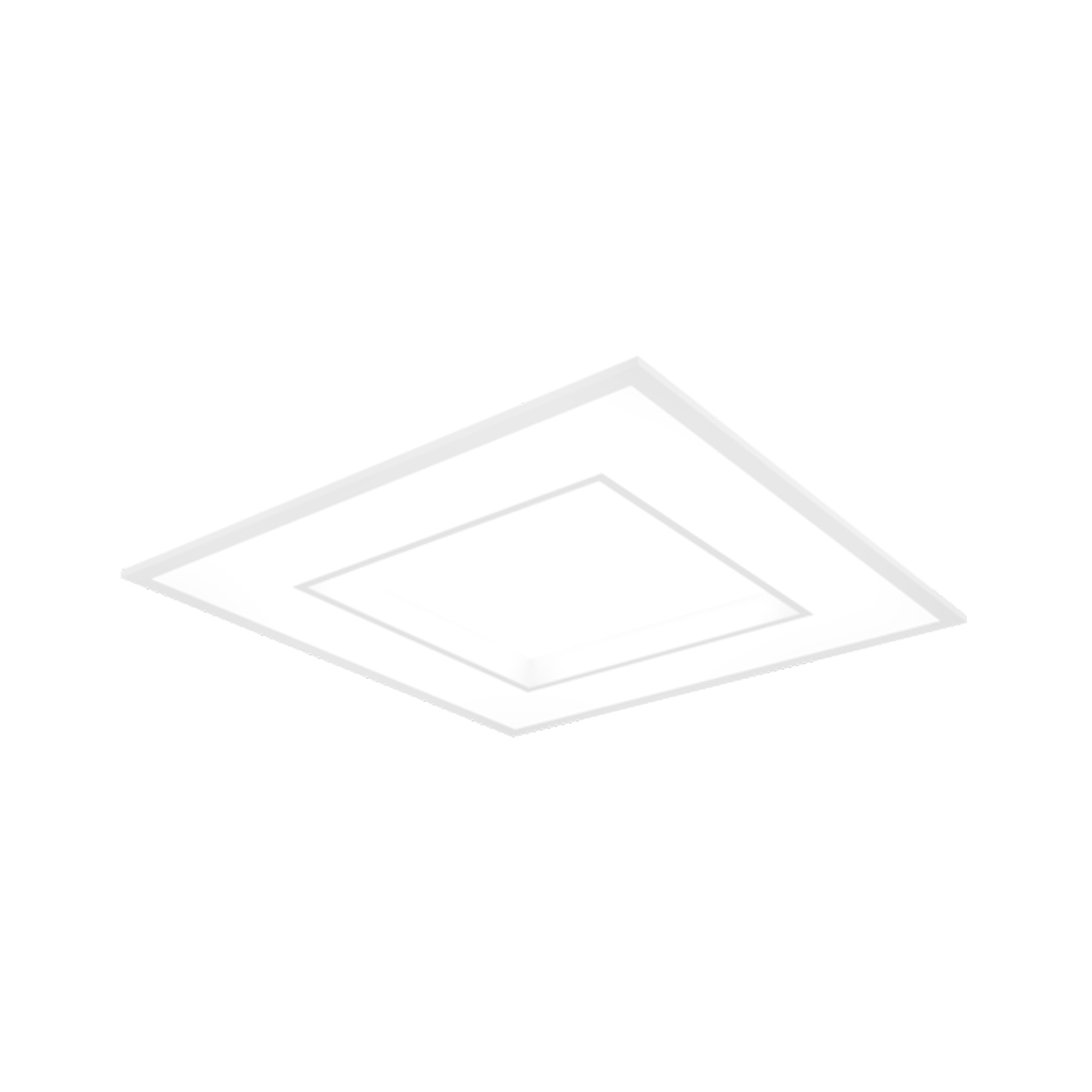

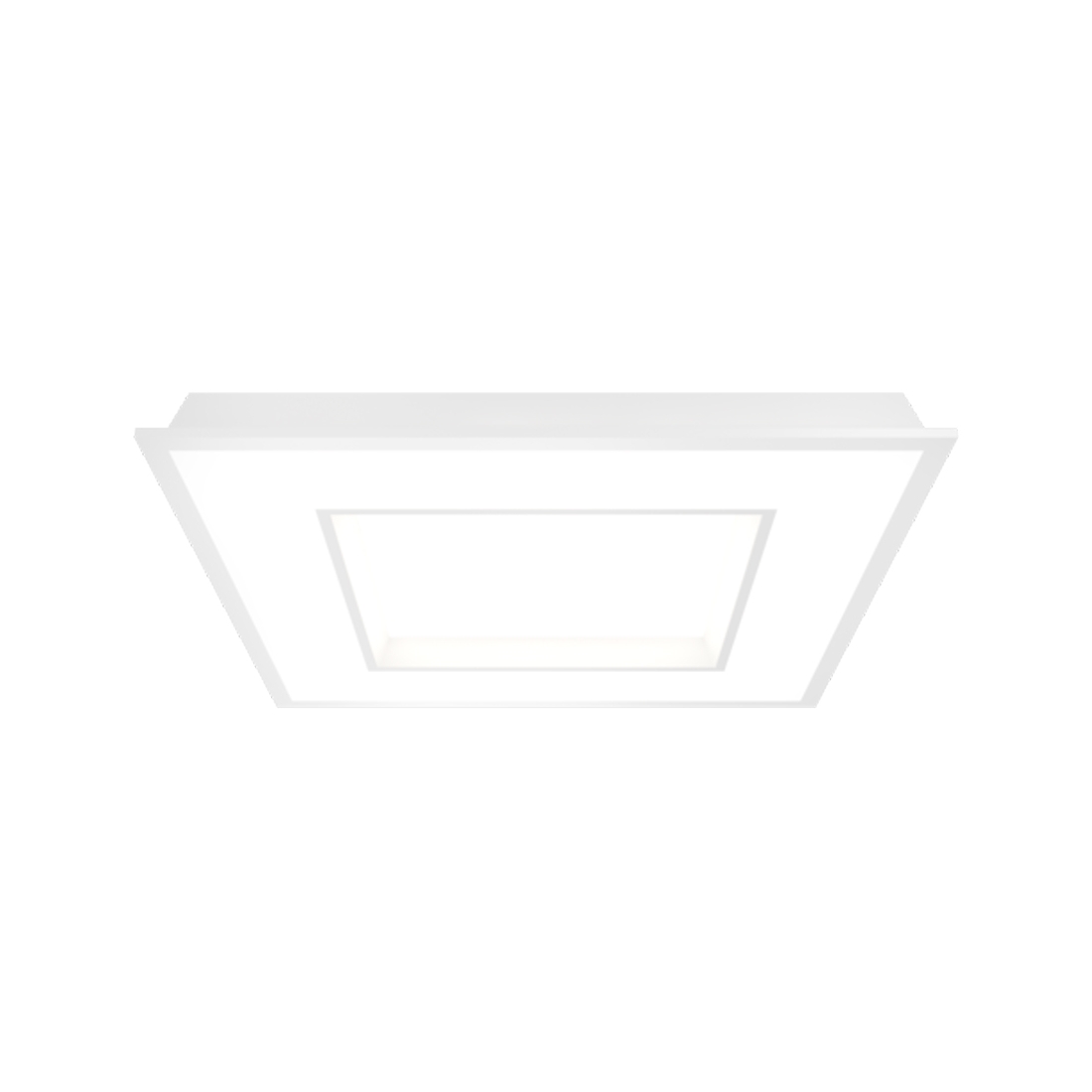

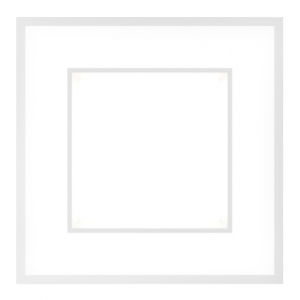

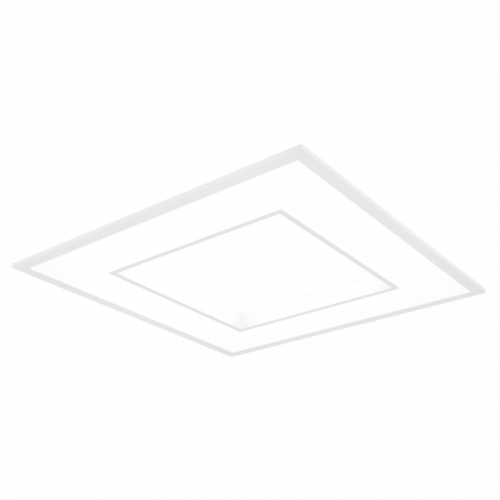

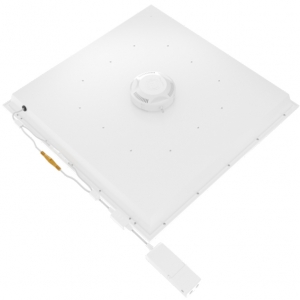

Ansell Lighting AQUAD/1 Quadro CCT White IP40 20-36W 2600-4300Lm 600x600mm Wattage & 3CCT Selectable Recessed UGR19 LED Modular Panel

Ansell Lighting AQUAD/1 Description

The Ansell Lighting AQUAD/1 Quadro CCT White Recessed LED Modular Panel has been developed to provide exceptional lighting performance for offices, schools, healthcare facilities and other commercial environments where visual comfort and energy efficiency are essential. Featuring four selectable power outputs (20W-36W) and 3CCT selection (3000K, 4000K and 6500K), installers can easily adjust both light output and colour temperature from a single luminaire, reducing stockholding and simplifying project specification. Its UGR<19 compliant design minimises glare, creating a more comfortable working environment for occupants while maintaining excellent illumination levels. Compatible with self-test emergency panel pods and sensor pods, and available with a range of dimming options, the AQUAD/1 offers a future-proof lighting solution for modern commercial installations. Push-fit loop-in/loop-out terminals further speed up installation, while the long-life LED technology and 7-year warranty provide dependable performance and reduced maintenance costs.

Ansell Lighting AQUAD/1 Features

• Ansell Lighting AQUAD/1 Quadro CCT recessed LED modular panel
• 600 x 600mm recessed modular panel for suspended T-grid and plasterboard ceilings
• Selectable wattage: 20W, 24W, 30W or 36W
• Delivers 2600-4300 lumens depending on selected power output
• 3CCT selectable: 3000K Warm White, 4000K Cool White and 6500K Daylight
• UGR<19 low-glare design for superior visual comfort
• Ideal for offices, schools, healthcare facilities and commercial interiors
• IP40 rated for indoor commercial applications
• 90° beam angle for uniform light distribution
• CRI 80 for accurate colour rendering

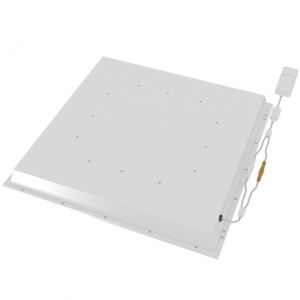

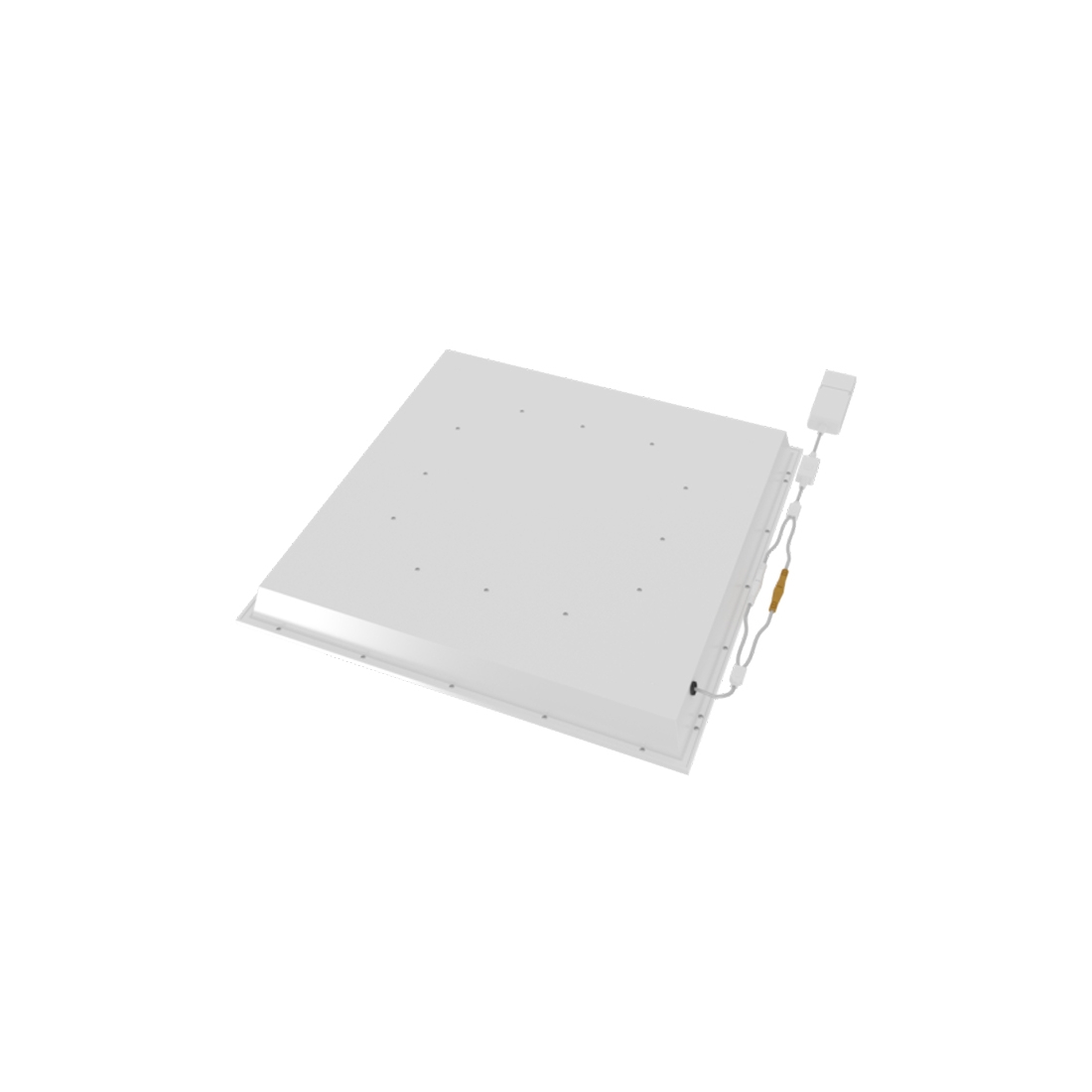

• Easy installation with push-fit loop-in/loop-out terminals
• Compatible with self-test emergency panel pod

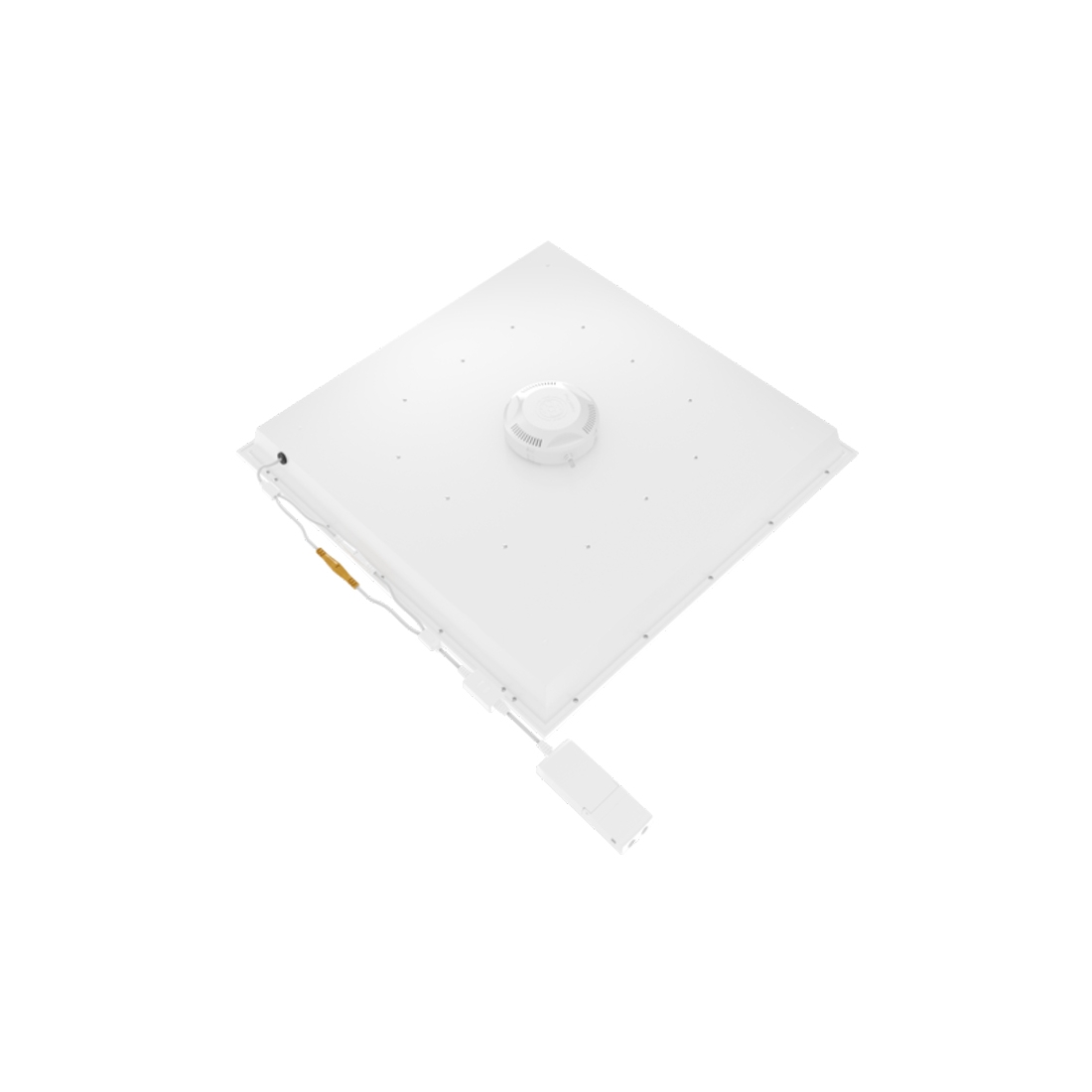

• Compatible with sensor pod for intelligent lighting control
• Available with Switch Dim, DALI, 1-10V, Tunable White and OCTO smart lighting options across the Quadro range
• 220-240V AC, 50/60Hz
• Class I construction
• L80 54,000-hour LED lifetime
• Dimensions: 595 x 595mm
• Backed by Ansell's 7-year manufacturer's warranty
