JCC Lighting JC080224 Skytile Base CCT White 30W 3200-3600Lm 1200x300mm CCT LED Panel With 3 Colour Selectable LEDs & TP(a) Opal Diffuser

JCC Lighting JC080224 Description

The JCC Lighting Skytile Base JC80224 is a white IP40 30W 3 colour selectable 1200mm x 300mm LED panel that delivers high-efficiency lighting in a variety of commercial and workplace environments.

White aluminium frame with TP(a) opal polycarbonate diffuser making it suitable for all applications.

Supplied with a flicker free non dimmable driver as standard - ensuring a comfortable and productive work environment.

Rated at 30W, choose from the three colour temperatures options - warm white (3000K), cool white (4000K) and daylight white (5700K) to create the desired light effect for any workspace.

Features an extended lifespan of up to 54,000 hours, reducing maintenance costs and ensuring long-term reliability.

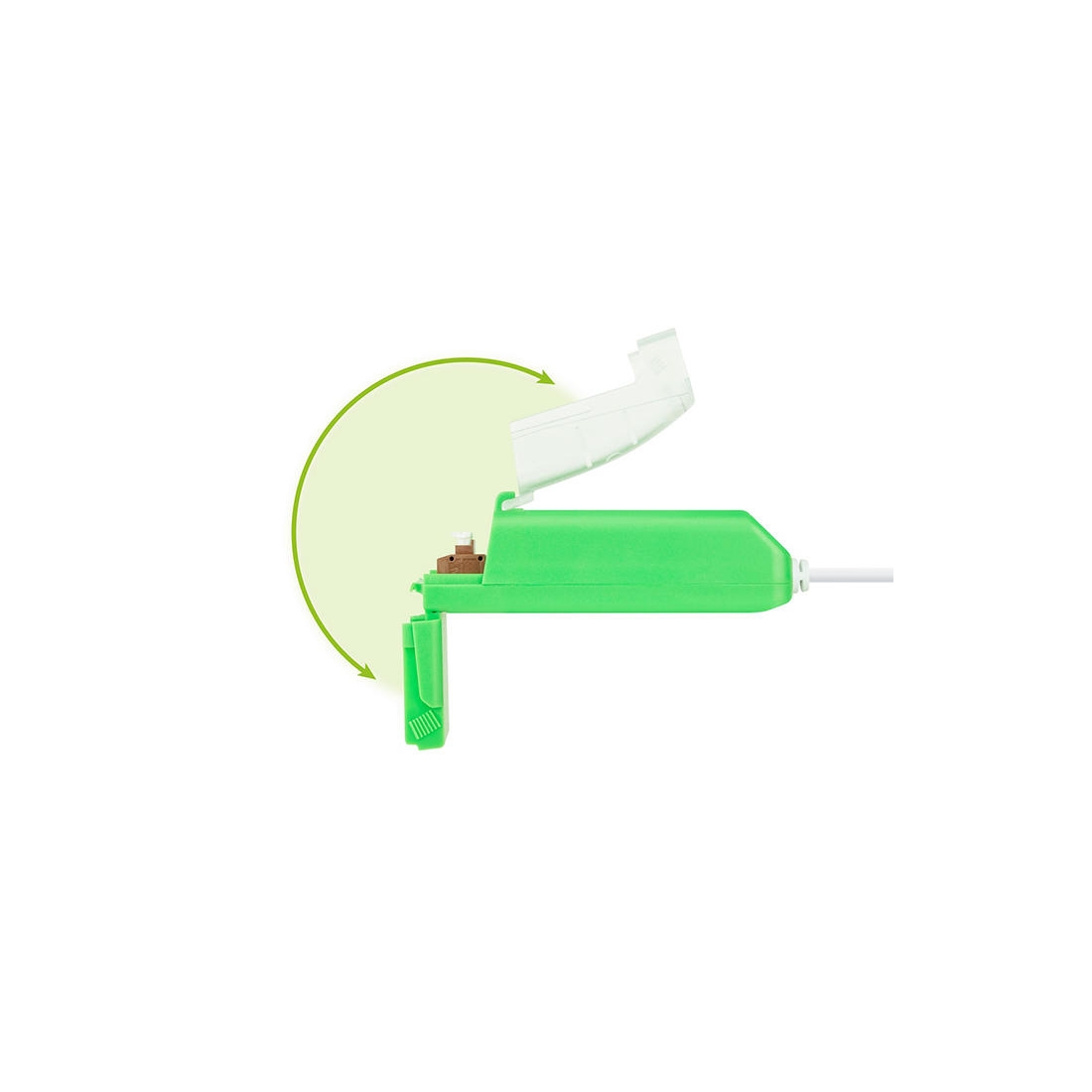

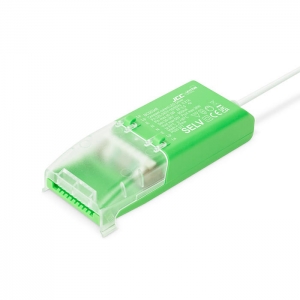

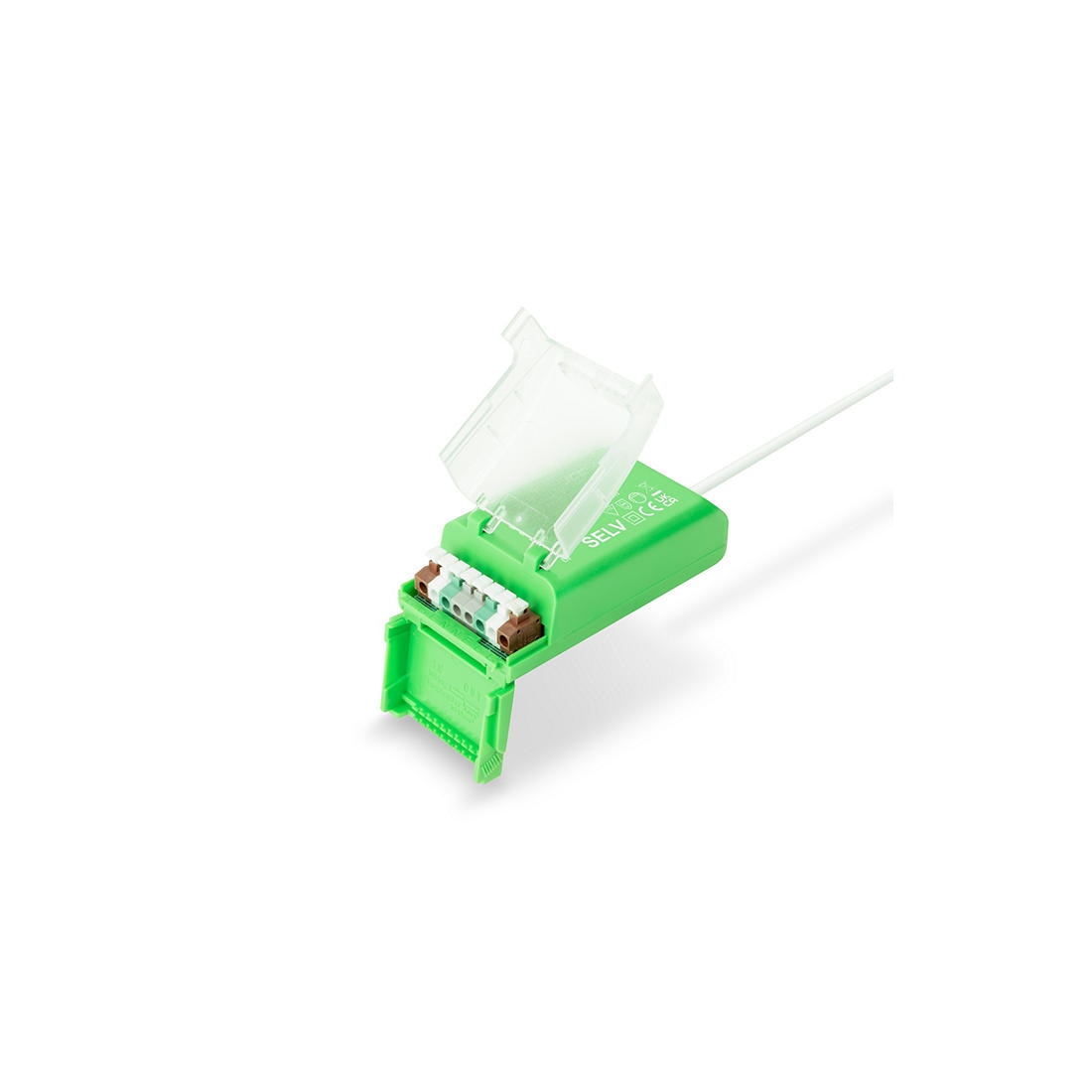

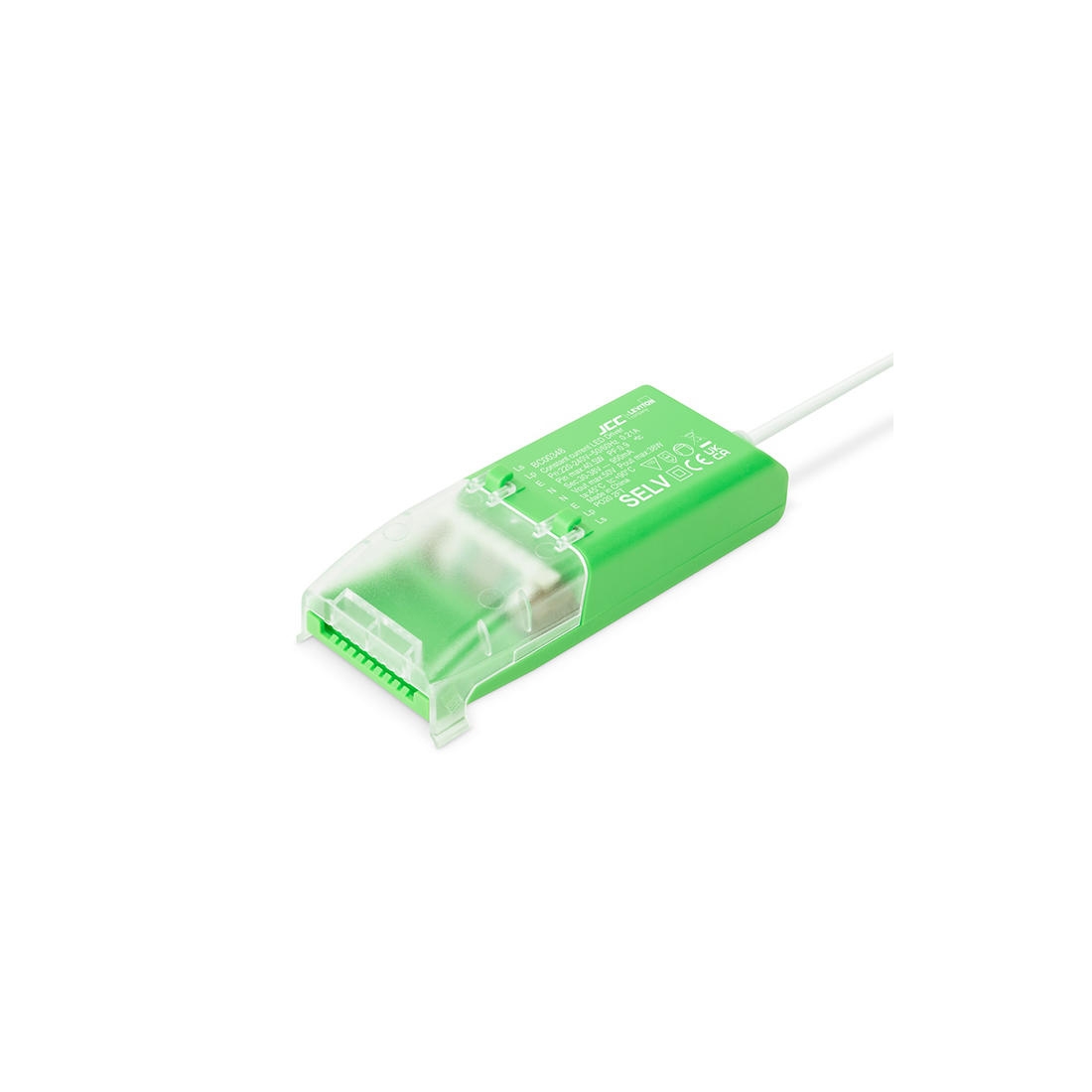

Features an 8-pole loop in/loop out double-hinged driver with permanent live and earth, this panel light allows for continuous wiring, ensuring seamless installation.

Compatible with the Skytile surface mount tray (JC71299), Suspension kit (JC080050), Plug and play emergency pack (JCEM002), and Self test plug and play EM pack (JCEM002ST).

With its sleek and modern design, this versatile luminaire offers exceptional performance, energy efficiency and ease of installation.

Also available in low and high output options, to cater for various lighting needs, including areas with higher ceilings or requiring greater light levels.

JCC Lighting JC080224 Features

• JCC Lighting JC080224 1200x300mm 3 colour selectable LED panel
• White aluminium frame with TP(a) opal polycarbonate diffuser
• Supplied with a flicker free non dimmable driver as standard
• IP40 rated
• Rating : 30W 240V~
• LED Colour: Warm White (3000K) | Cool White (4000K) | Daylight White (5700K)
• Lumens: 3000K 3200Lm 107Lm/W | 4000K 3600Lm 120Lm/W | 5700K 3400Lm 113Lm
• LED Lifetime: 54,000hrs
• Non-Dimmable
• 8 pole loop in/loop out double hinged driver with permanent live and earth for continuous wiring
• For Use with T-Grid Suspended Ceilings
• Emergency remote pack options available
• Widely used in hotels, offices, hospitals, schools, factories, commercial lighting, shopping malls and supermarkets
• Dimensions: Length: 1195mm | Width: 295mm | Depth: 28mm
