Ansell Lighting AAVIO/1/BK/PIR Avio Black IP66 6W-24W 570-2200Lm 930mm Wattage & 2CCT Selectable LED Bollard With PIR & Lensed Optic

Ansell Lighting AAVIO/1/BK/PIR Description

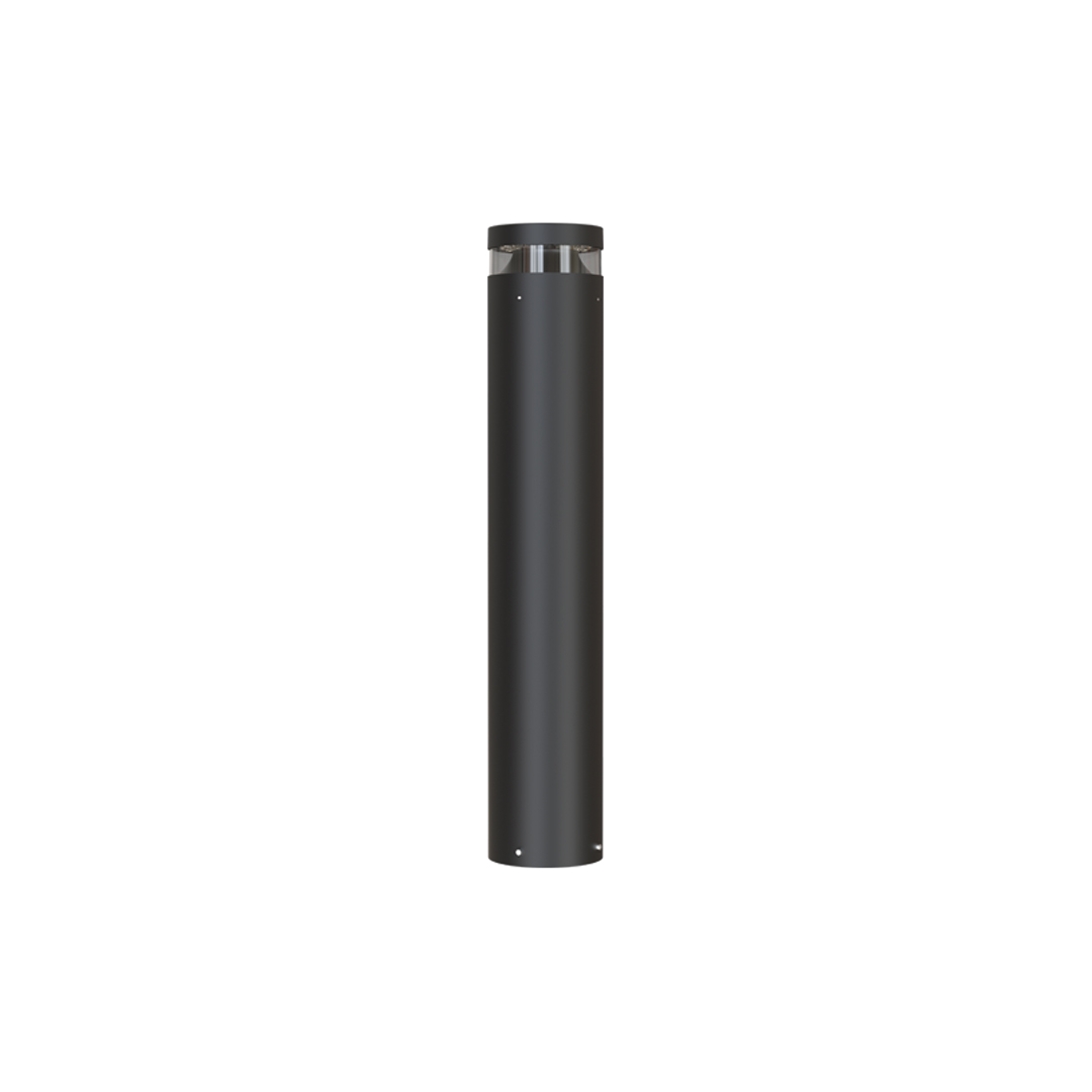

The Ansell AAVIO/1/BK/PIR Avio Black LED Bollard is a premium architectural outdoor lighting solution designed to provide exceptional performance, flexibility, and energy savings. Featuring an integrated PIR motion sensor with switchable photocell functionality, this intelligent bollard automatically responds to movement and ambient light levels, helping to reduce energy consumption while enhancing safety and security in outdoor environments.

Constructed from robust die-cast aluminium with a contemporary textured black finish, the Avio PIR bollard is ideal for illuminating pathways, car parks, commercial developments, hospitality venues, educational facilities, healthcare environments, and landscaped public spaces. Its advanced power-selectable design allows adjustment between 6W, 12W, 18W and 24W, while dual 3000K warm white and 4000K cool white CCT selection enables installers to customise both light output and ambience on-site.

Delivering between 570 and 2200 lumens, the Avio features a precision-engineered lensed optic that provides uniform light distribution, excellent visual comfort, and maximum lighting efficiency. The removable head design offers convenient access to the integrated wattage and CCT switches, simplifying installation and future maintenance.

Engineered for long-term reliability, the Avio PIR bollard benefits from an IP66 weatherproof rating, IK08 impact protection, and an impressive 60,000-hour L80 lifespan, making it an ideal choice for professional outdoor lighting projects where durability and performance are essential.

Ansell Lighting AAVIO/1/BK/PIR Features

• Contemporary architectural LED bollard with integrated PIR motion sensor
• Built-in switchable photocell for enhanced energy management
• Selectable wattage settings: 6W / 12W / 18W / 24W
• Selectable colour temperatures: 3000K Warm White / 4000K Cool White
• Adjustable light output: 570lm – 2200lm
• Precision-engineered lensed optic for uniform illumination and visual comfort
• Robust die-cast aluminium construction with textured black finish
• Ideal for pathways, commercial landscapes, public spaces and perimeter lighting
• Optional half-shield accessory available for directional light output

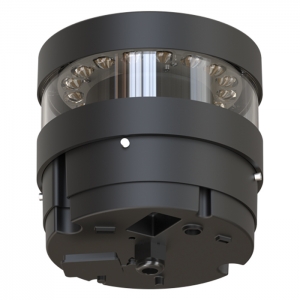

• Removable head design for easy access to wattage and CCT switches
• Supplied with AFIXIP/1/SC/3C IP-rated connector for fast installation
• IP66 rated for protection against dust and powerful water jets
• IK08 impact resistance rating
• Beam angle: 140°
• Colour Rendering Index: CRI Ra80
• Colour consistency: SDCM 3
• Input voltage: 220-240V AC, 50/60Hz
• Operating temperature: -30°C to +50°C
• Lifetime: L80 60,000 hours
• Class I electrical construction
• Corrosion resistance up to C4M
• Diameter: 170mm
• Height: 930mm
• Supplied complete with base plate
• Optional root mounting kit available
• 5-year warranty
