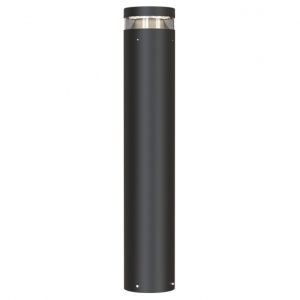

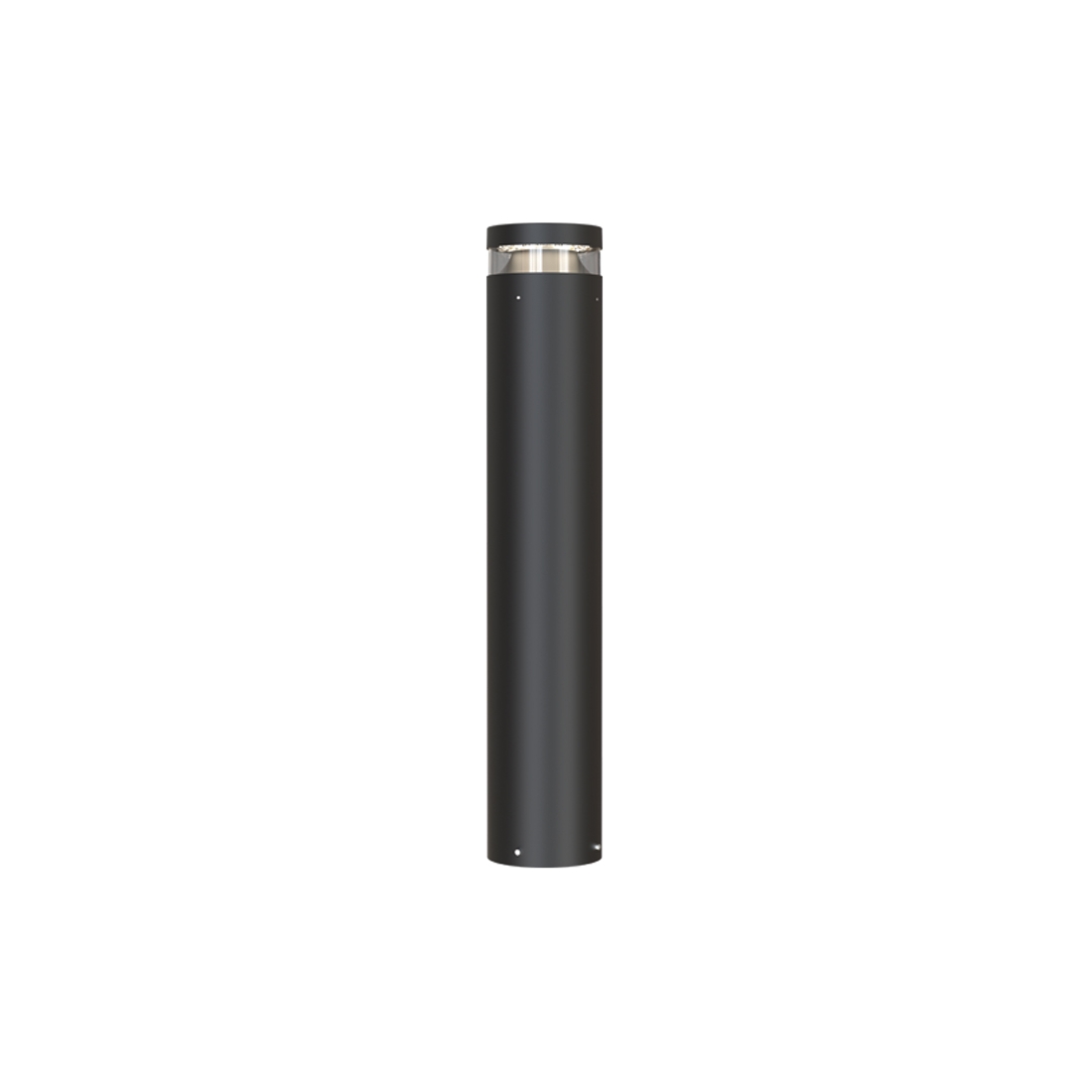

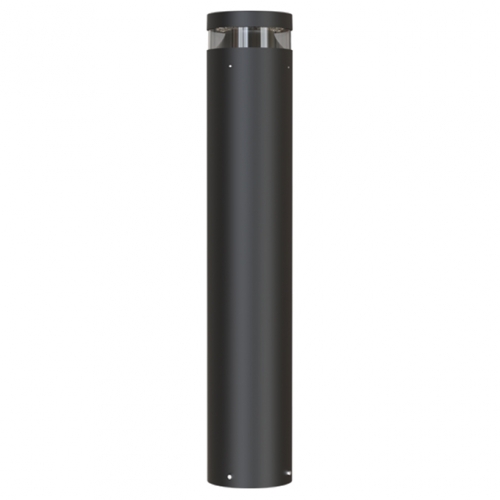

Ansell Lighting AAVIO/1/BK/SM3 Avio Black Self-Test Emergency IP66 6W-24W 570-2200Lm 930mm Wattage & 2CCT Selectable LED Bollard With Lensed Optic

Ansell Lighting AAVIO/1/BK/SM3 Description

The Ansell AAVIO/1/BK/SM3 Avio Black Self-Test Emergency LED Bollard is a premium outdoor lighting solution designed for commercial, public realm, and high-specification landscape projects where both illumination and emergency lighting compliance are essential. Combining contemporary styling with advanced LED technology, this architectural bollard provides reliable everyday lighting alongside integrated 3-hour self-test emergency operation for added peace of mind.

Manufactured from durable die-cast aluminium and finished in a modern textured black coating, the Avio Emergency Bollard is engineered to withstand demanding outdoor environments. Its innovative design incorporates wattage selectable technology, allowing installers to choose between 6W, 12W, 18W and 24W outputs, while integrated dual CCT selection enables switching between 3000K warm white and 4000K cool white to suit different applications and lighting schemes.

Providing a versatile lumen output range from 570 to 2200 lumens, the Avio delivers efficient and uniform illumination through its precision-engineered lensed optic. Ideal for pathways, pedestrian areas, commercial developments, educational facilities, healthcare environments, hospitality venues and public spaces, it offers excellent visual comfort while maintaining a clean architectural appearance.

The integrated self-test emergency system automatically performs routine functional and duration tests, helping simplify maintenance and ensuring compliance with emergency lighting requirements. With an IP66 weatherproof rating, IK08 impact resistance, and a long-life 60,000-hour L80 LED lifespan, the Avio Emergency Bollard provides dependable performance in even the most challenging outdoor conditions.

Ansell Lighting AAVIO/1/BK/SM3 Features

• Architectural LED bollard with integrated self-test emergency functionality
• Provides 3-hour emergency operation in the event of mains power failure
• Automatic self-test system simplifies maintenance and compliance checks
• Selectable wattage settings: 6W / 12W / 18W / 24W
• Selectable colour temperatures: 3000K Warm White / 4000K Cool White
• Adjustable lumen output: 570lm – 2200lm
• Precision-engineered lensed optic for uniform light distribution
• Modern textured black finish
• Robust die-cast aluminium construction
• Suitable for commercial, public realm, healthcare, hospitality and educational applications

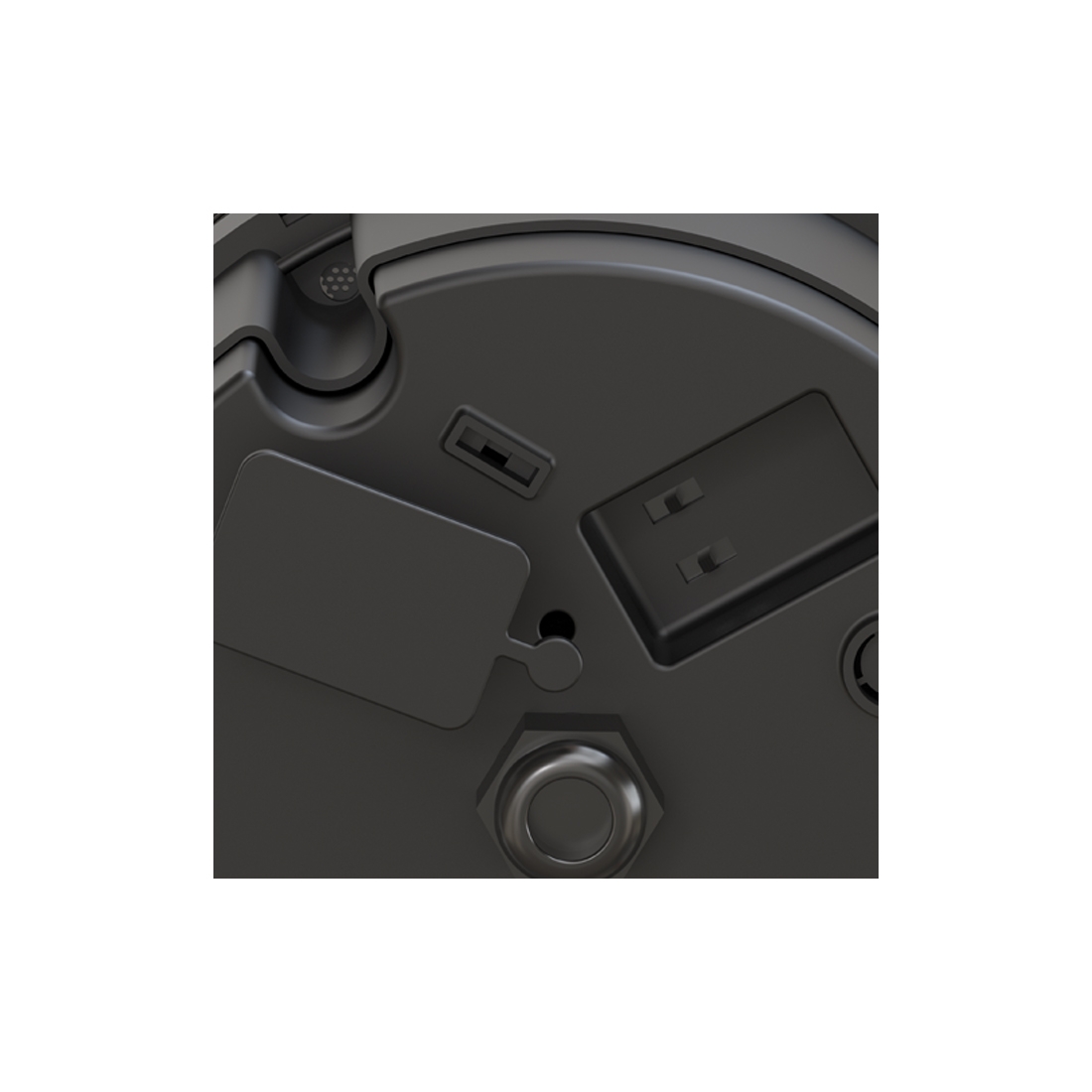

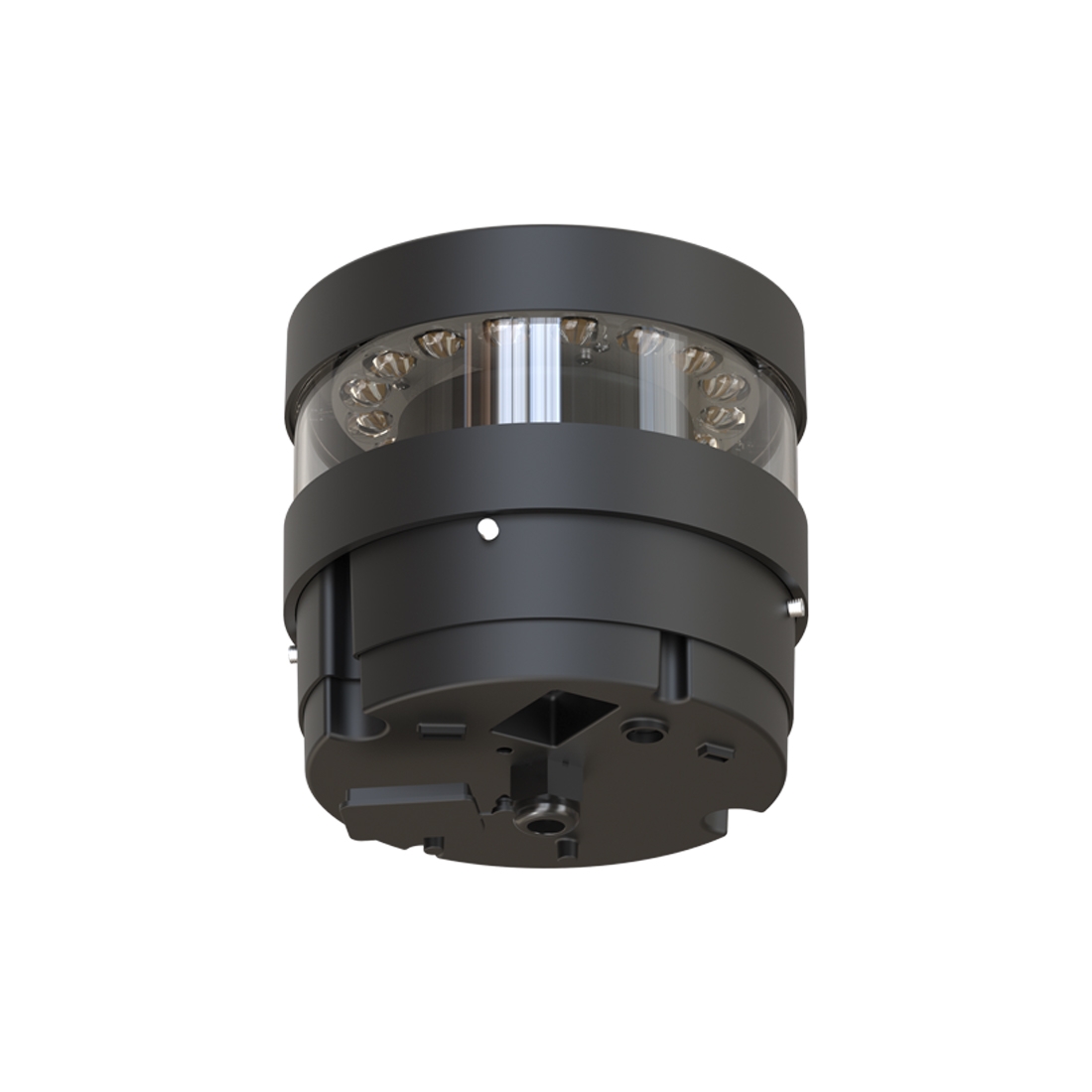

• Removable head for easy access to wattage and CCT selection switches
• Supplied with AFIX IP-rated connector for fast and secure installation
• IP66 rated for protection against dust and powerful water jets
• IK08 impact resistance rating
• Beam angle: 140°
• Colour Rendering Index: CRI Ra80
• Colour consistency: SDCM 3
• Input voltage: 220-240V AC, 50/60Hz
• Operating temperature: -30°C to +50°C
• Lifetime: L80 60,000 hours
• Class I electrical construction
• Corrosion resistance rating: C4M
• Diameter: 170mm
• Height: 930mm
• Supplied with mounting base plate
• Optional root mounting kit available
• 5-year warranty
