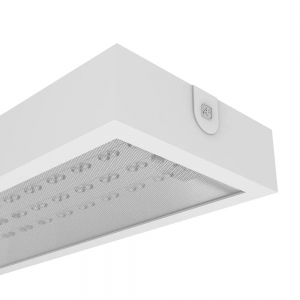

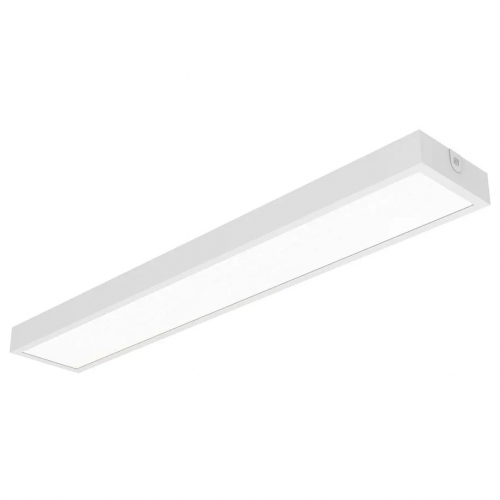

Ansell AGEM4/1 Gemini UGR19 4ft 17-34W 2200-5100Lm Wattage & 3CCT LED UGR19 Linear Luminaire With Microprism Diffuser

Ansell AGEM4/1 Description

The Ansell AGEM4/1 Gemini UGR19 Linear LED Luminaire is a high-specification lighting solution developed for commercial, educational, healthcare, and retail environments where visual comfort and performance matter. Engineered to meet UGR<19 low-glare standards, this 4ft luminaire reduces eye strain and enhances occupant comfort — especially in workplaces with display screens and prolonged occupancy.

Featuring wattage selectable power from 17 W to 34 W and 3-CCT selectable colour temperatures (3000 K, 4000 K and 5000 K), the AGEM4/1 offers flexible lighting options from a single fitting. The robust microprism diffuser optimises photometric performance for smooth, uniform illumination.

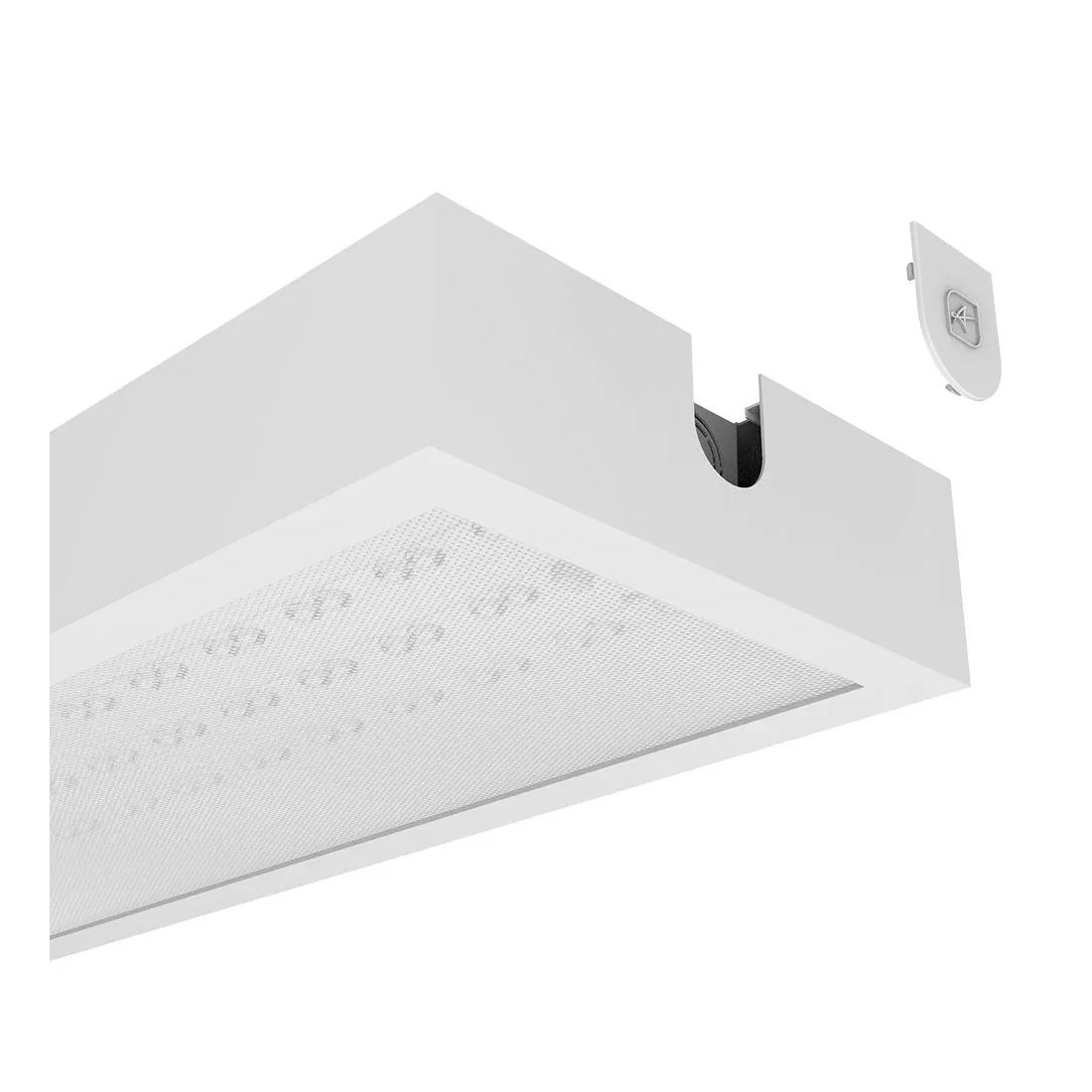

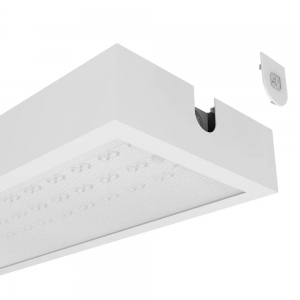

Designed for both surface and suspended mounting, the luminaire includes an easy-install base plate and push-up, clip-in body design for fast, professional installation. Removable end cap covers allow simple access for surface conduit wiring.

Ansell AGEM4/1 Features

• 4ft (1200 mm) professional lighting solution
• Wattage selectable: 17 W – 34 W (offers choice of output levels)
• 3CCT selectable: 3000 K / 4000 K / 5000 K for adaptable lighting colour
• Delivers 2200 – 5100 lm depending on selected power and CCT
• UGR<19 low-glare design for visual comfort in offices and screen environments
• Microprism diffuser for excellent light distribution
• Dimensions: ~1200 mm (L) × ~200 mm (W) × ~64 mm (H)
• IP20 rated – suitable for indoor environments
• IK06 impact resistance – durable construction
• CRI ≈ 80 typical for good colour rendering
• Beam angle ~90° for effective illumination spread
• Robust steel body with easy-access wiring
• Suitable for surface or suspended mounting
• LED lifetime: ~50 000 h L80
• Operating temp range: –20 °C to 40 °C
• Class I protection and CE marked
• 5-year warranty for peace of mind
