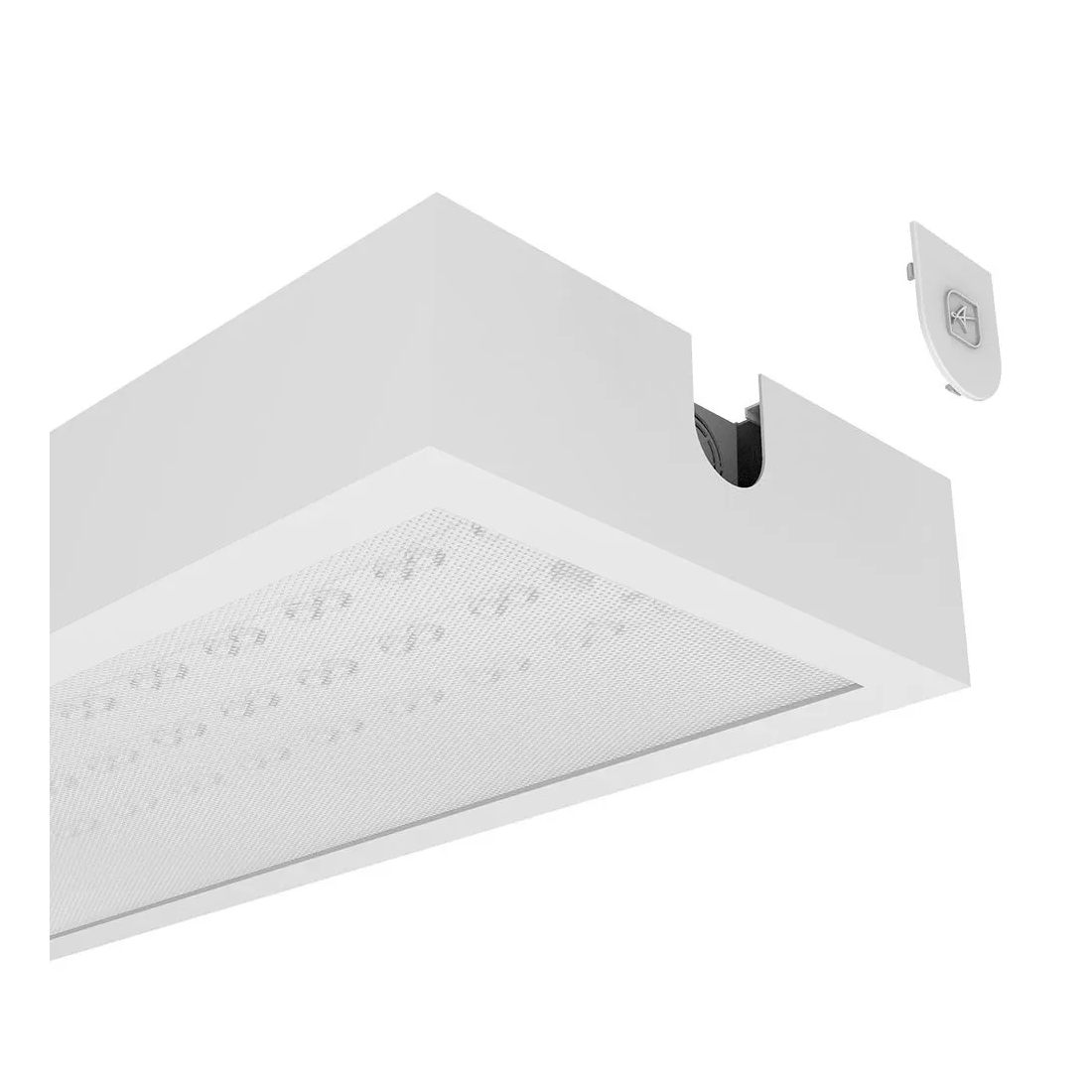

Ansell AGEM5/1 Gemini UGR19 5ft 25-40W 3300-5800Lm Wattage & 3CCT LED UGR19 Linear Luminaire With Microprism Diffuser

Ansell AGEM5/1 Description

The Ansell AGEM5/1 Gemini UGR19 5ft LED Linear Luminaire is a high-performance lighting solution engineered for commercial, educational, healthcare, and retail environments where visual comfort and adaptability are essential. Designed to reduce eye strain and provide consistent, uniform illumination, this linear fitting complies with UGR < 19 low-glare standards, making it ideal for offices, classrooms, corridors, and collaborative spaces.

With wattage selectable settings from 25 W to 40 W and 3CCT selectable colour temperatures (3000 K / 4000 K / 5000 K), the AGEM5/1 allows installers to tailor both output and light tone on site, reducing stock variants and increasing flexibility.

The microprism diffuser enhances photometric performance for smooth, even illumination, while the robust steel construction ensures durability. The luminaire supports both surface mounting and suspension, and its intelligent push-up, clip-in body design simplifies installation.

Ansell AGEM5/1 Features

• 5ft (1500 mm) professional lighting solution
• Wattage selectable: 25 W – 40 W for adaptable output
• 3CCT selectable: 3000 K / 4000 K / 5000 K for flexible lighting design
• Lumen output range: 3300 – 5800 lm (dependent on power & CCT)
• UGR < 19 low-glare optical system for visual comfort in offices, classrooms & healthcare spaces
• Microprism diffuser for enhanced light uniformity
• Dimensions: approximately 1500 mm (L) × 200 mm (W) × 64 mm (H)
• IP20 rated – suitable for internal environments
• IK06 impact resistance for robust performance
• CRI ≈ 80 for accurate colour rendering
• Beam angle: ~90° for broad, even illumination
• Suitable for surface mounting or suspension
• LED lifetime: ~50 000 h L80
• Operating temperature: –20 °C to +40 °C
• 5-year warranty for peace of mind
