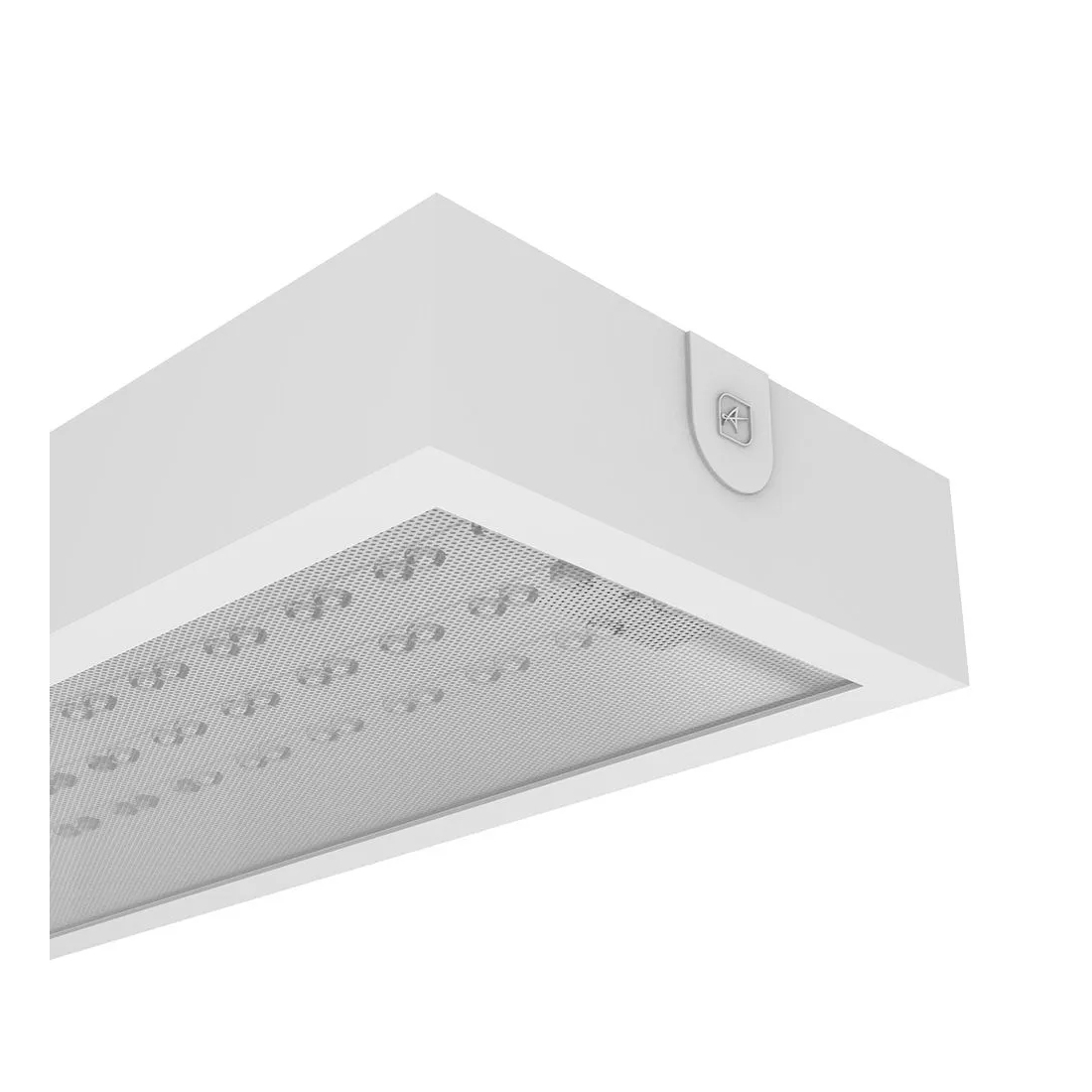

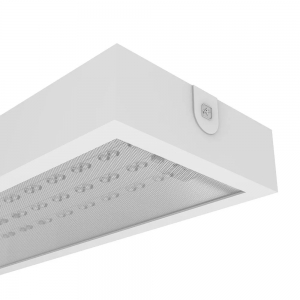

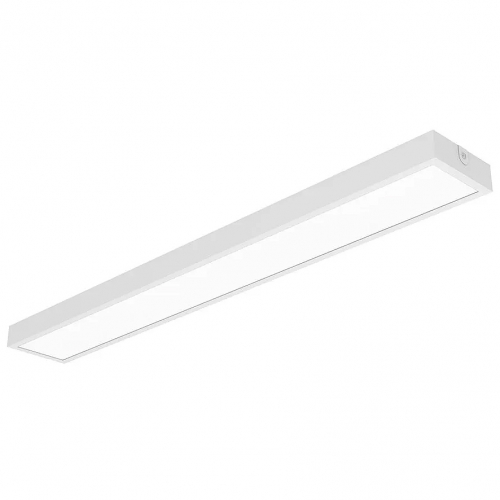

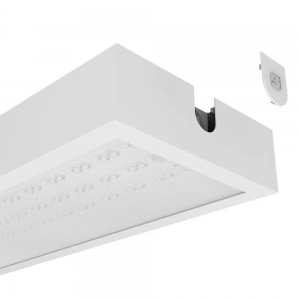

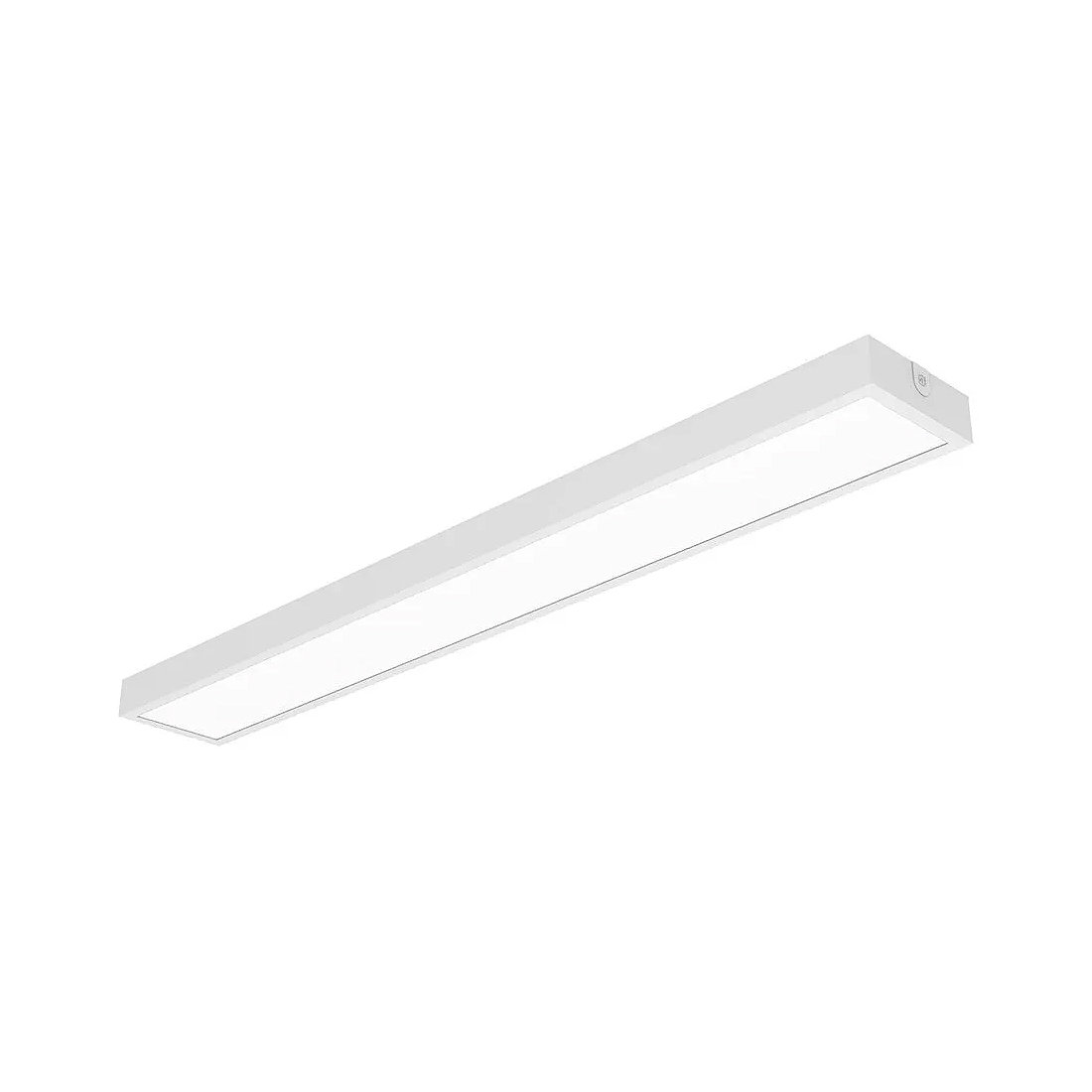

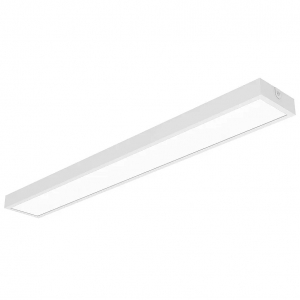

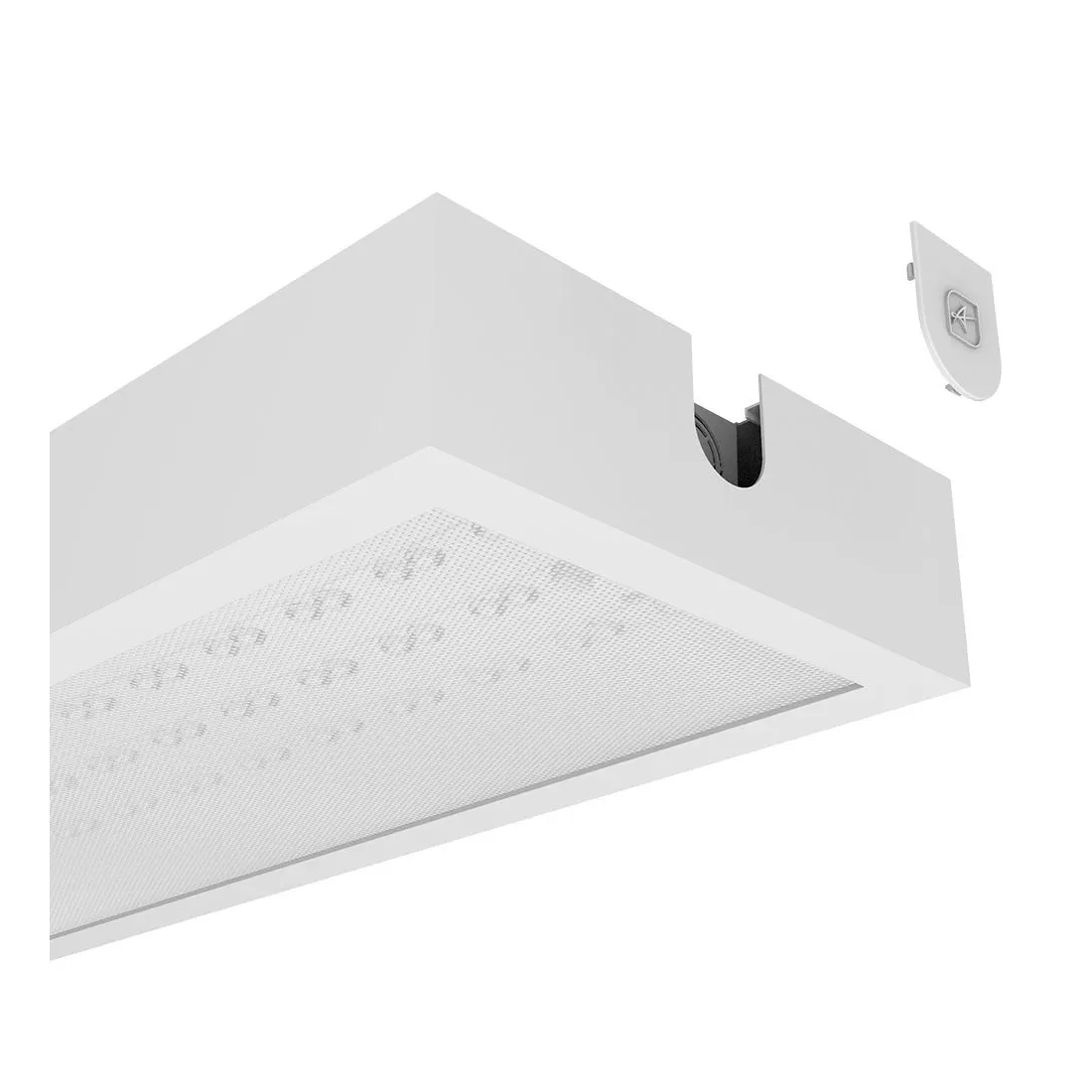

Ansell AGEM5/1/SM3 Gemini UGR19 5ft Self-Test Emergency 25-40W 3300-5800Lm Wattage & 3CCT LED UGR19 Linear Luminaire With Microprism Diffuser

Ansell AGEM5/1/SM3 Description

The Ansell AGEM5/1/SM3 Gemini UGR19 5ft LED Linear Luminaire with Self-Test Emergency combines everyday illumination and emergency readiness in one advanced lighting solution. Engineered for commercial, education, healthcare, and office environments, this luminaire offers uniform, high-quality light with a UGR<19 low-glare rating, ideal for visual comfort in screen-based, collaborative, and task-critical spaces.

Featuring wattage selectable output from 25 W to 40 W and 3CCT selectable colour temperatures (3000 K / 4000 K / 5000 K), the AGEM5/1/SM3 allows installers to tailor both brightness and colour tone on site — reducing stock variants and delivering tailored light for each space.

The integrated self-test emergency system monitors and tests itself automatically, helping ensure compliance and reducing maintenance time. In the event of a power failure, the luminaire provides minimum 3 hours of emergency illumination, supporting safety and escape lighting requirements without rewiring. The microprism diffuser enhances photometric performance, delivering smooth, uniform light distribution.

Ansell AGEM5/1/SM3 Features

• 5ft (1500 mm) professional lighting solution with self-test emergency
• Self-test emergency functionality for automatic routine checks
• Wattage selectable: 25 W – 40 W for adaptable output
• 3CCT selectable: 3000 K / 4000 K / 5000 K for flexible lighting design
• Lumen output range: 3300 – 5800 lm (dependent on power & CCT)
• UGR<19 low-glare design for visual comfort in offices, education & healthcare
• Microprism diffuser for uniform, anti-glare light distribution
• Emergency duration: minimum 3 hours compliant lighting
• Dimensions: ~1500 mm (L) × ~200 mm (W) × ~64 mm (H)
• IP20 rated – suitable for indoor environments
• IK06 impact resistance for durability
• CRI ≈ 80 for accurate colour rendering
• Beam angle: ~90° for broad, even coverage
• Surface or suspended mounting compatible
• LED lifetime: ~50 000 h L80
• Operating temperature: –20 °C to +40 °C
• 5-year warranty for peace of mind
