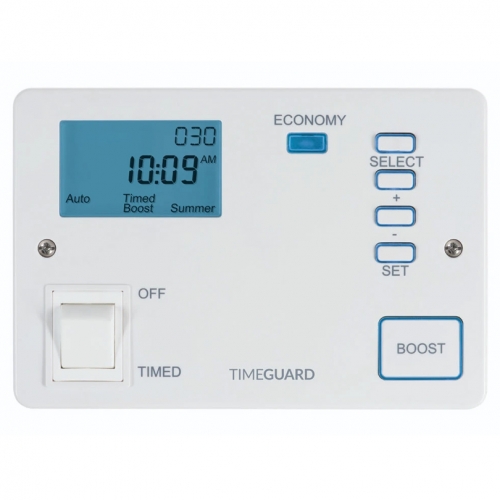

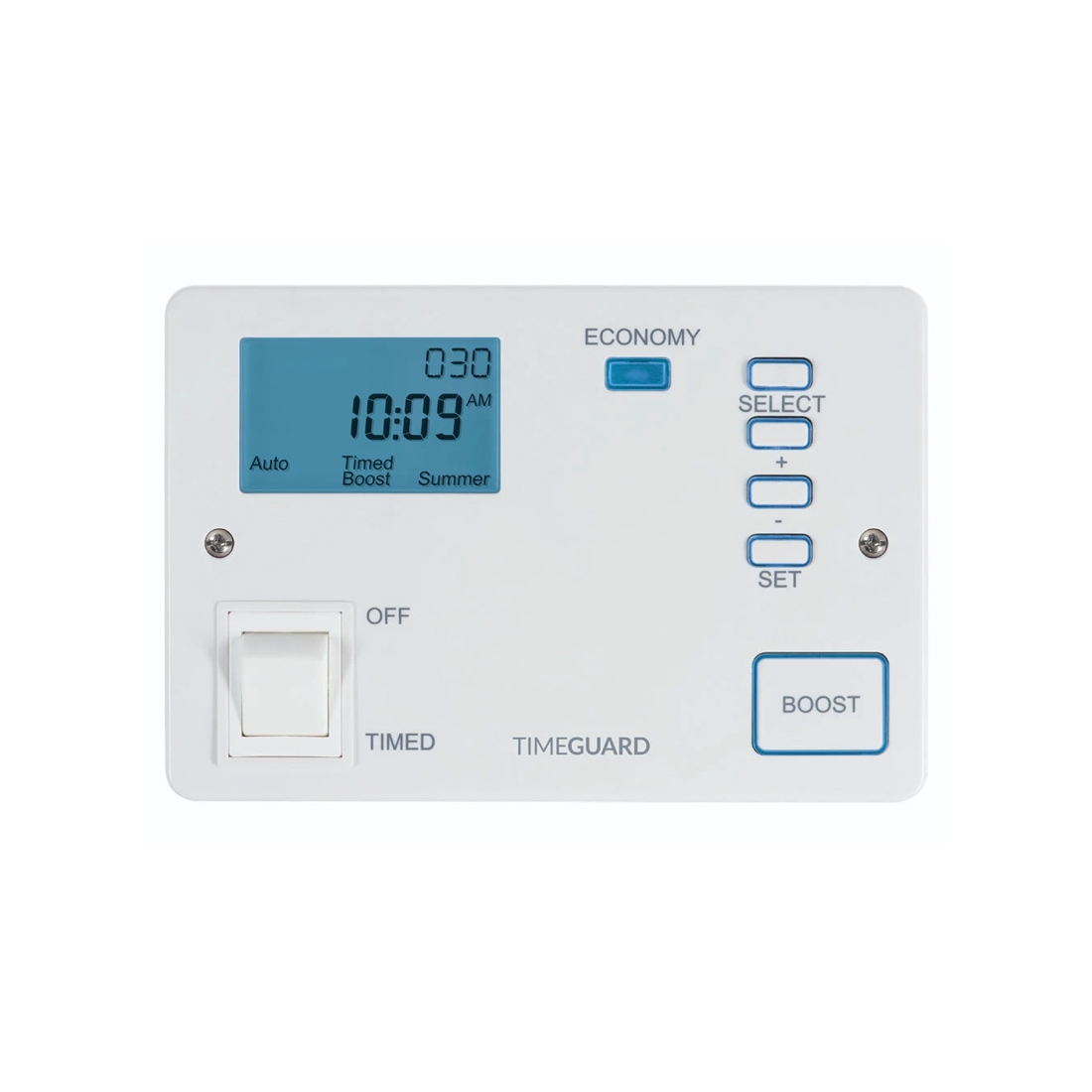

Timeguard TRTD7N Programastat+ White 24 Hour Digital Economy7 Water Heating Programmer With Boost & Economy7 Wall Box 0°C - 35°C 13A 230V

Timeguard TRTD7N Description

The Timeguard TRTD7N Programastat+ 24 hour digital programmer with boost control is designed for use with Economy 7 off peak rate overnight electricity plans. Suitable for use with single, dual or twin element immersion heaters.

Delivers complete flexibility for off peak programming with up to 3 pre-selected off-peak hot water or heating periods every 24 hours allowing customised programming. Includes automatic summer/winter changeover.

Features simple push button setting and select modes for ease of use with an easy view 12 hour am/pm clock/timer display illuminates settings

The boost control offers instant ON/OFF control that can be set for either 30 min, 1 hour or 2 hours. A useful countdown boost display which shows the remaining boost time

The programmer fits and is supplied with a standard size Economy 7 wall box for installation, and is interchangeable with previous versions of Sangamo and Hortsmann Economy 7 units.

The TRTD7N features a 2 year factory fitted battery for memory back-up.

Timeguard TRTD7N Features

• Interchangeable with Sangamo and Horstmann Economy 7 units.
• Suitable for use with single, dual or twin element immersion heaters.
• Designed for use with Economy 7 off peak rate overnight electricity plans.
• Pre-programmed automatic boost and three on-demand options – 30 minutes, 1 & 2 hours.
• Countdown boost display shows boost time remaining.
• Automatic summer/winter changeover.
• 2 year factory fitted battery for memory backup.
• Fits and supplied with a standard size Economy 7 wall box.
• Accommodates up to 3 off-peak hot water or heating periods every 24 hours.
• Easy view 12 hour am/pm clock/timer display illuminates settings.
• Simple push button setting and select modes.
• IP30 enclosure protection and class 1 shock protection.
• Contact rating: 13A suitable for immersion heaters up to 3kW.
• Operating temperature: 0°C to +35°C.
• Contact type: Micro-disconnection ON control.
• Disconnection to immersion heater(s) via double pole rocker switch.
