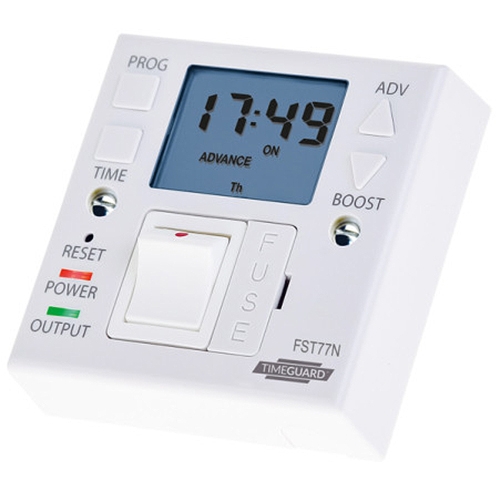

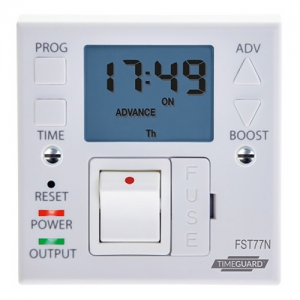

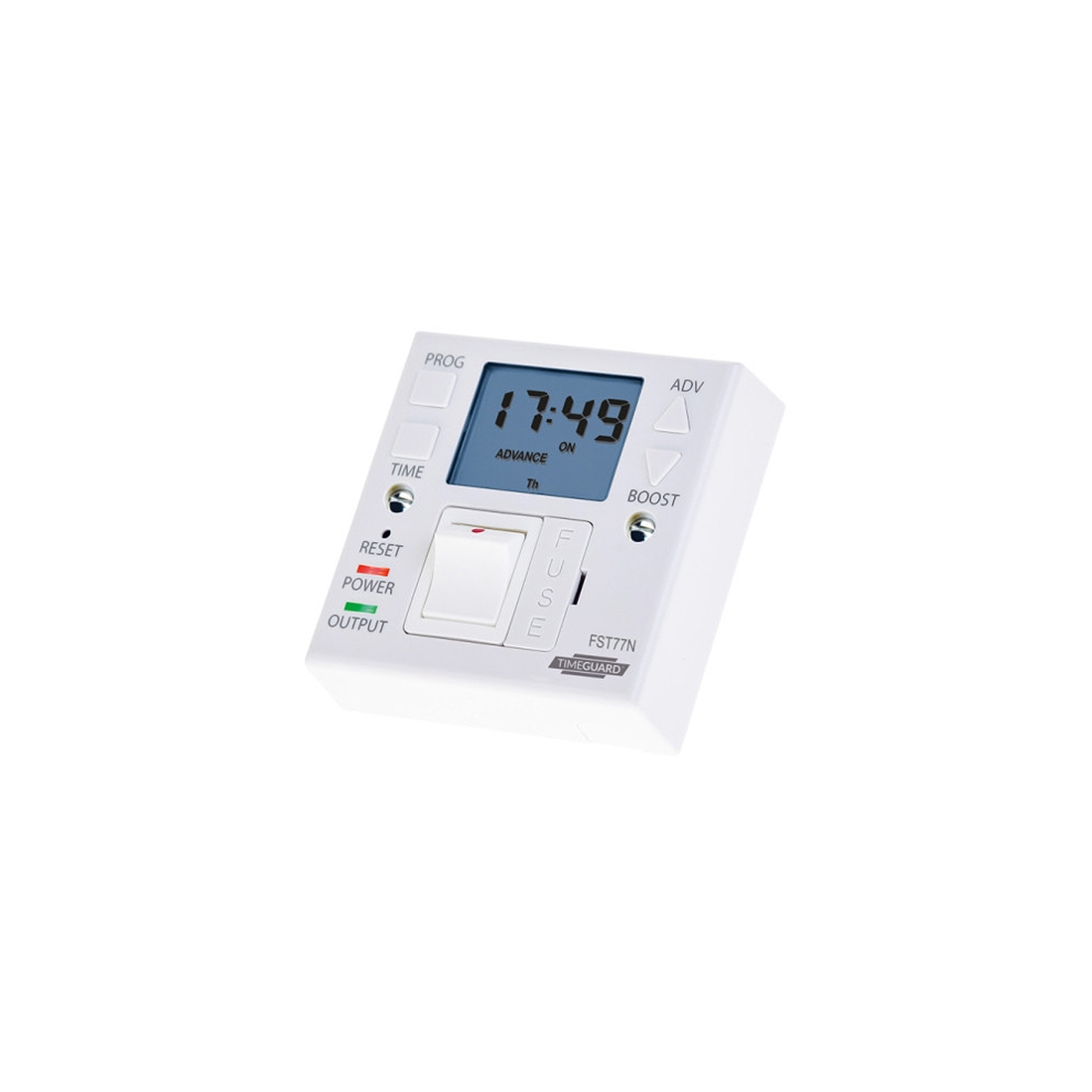

Timeguard FST77N White 7 Day DP Fused Spur Time Switch With Up To 2 Hour Boost & 56 ON & OFF Programs

Timeguard FST77N Description

The FST77N allows the user to control when their appliance should be regulated and how often.
With a Boost feature - periods for up to 120 minutes (2 hours). The permanent ON/OFF override is a self-cancelling override until the next programme change.
This fused spur time switch allows for 8 ON/OFF programmable slots per day and has a 28-day battery backup to maintain programming in the event of a power cut or extended maintenance.

Timeguard FST77N Features

• Up to 8 ON and OFF programmes available (5 day plus 2 or 7 day programmes) giving up to 56 ON and OFF programmes per week
• Suitable for use with up to 3kW immersion heaters
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
• Permanent ON/ OFF and timed outputs available
• Easy view 24 hour digital clock/timer display
• Optional 30, 60, 90 and 120 minute boost facility
• Automatic summer/winter time changeover
• Self-cancelling override
• Programme advance and review options
• Integral memory back up battery retains programmes in event of power failure
• Ideal for replacing single gang connection unit or fixed appliance outlets
• Double pole isolation switch for ease of control. BS1362 fuse replaceable from front

Operating Voltage: 230V AC
Frequency: 50Hz
Installation Type: Flush Wall Box / Surface Mount Patress Box
Earth Class Rating: Class II
Operating Temperature: 0°C to 40°C
Ingress Protection Rating: IP20
Battery Type: NiMH 1.2V 80mAh Rechargeable Battery (Non Replaceable)
Power Reserve: 672 Hours (28 Days)
Program Modes: 24 Hour/7 Day, 30, 60, 90 & 120 Minute Boost
Number Of Channels: 1
Switch Rating: 13A Resistive, 750W Incandescent/Halogen, 500W Fluorescent, 200W LED, 100W CFL
Programmable Slots: 8 ON, 8 OFF
