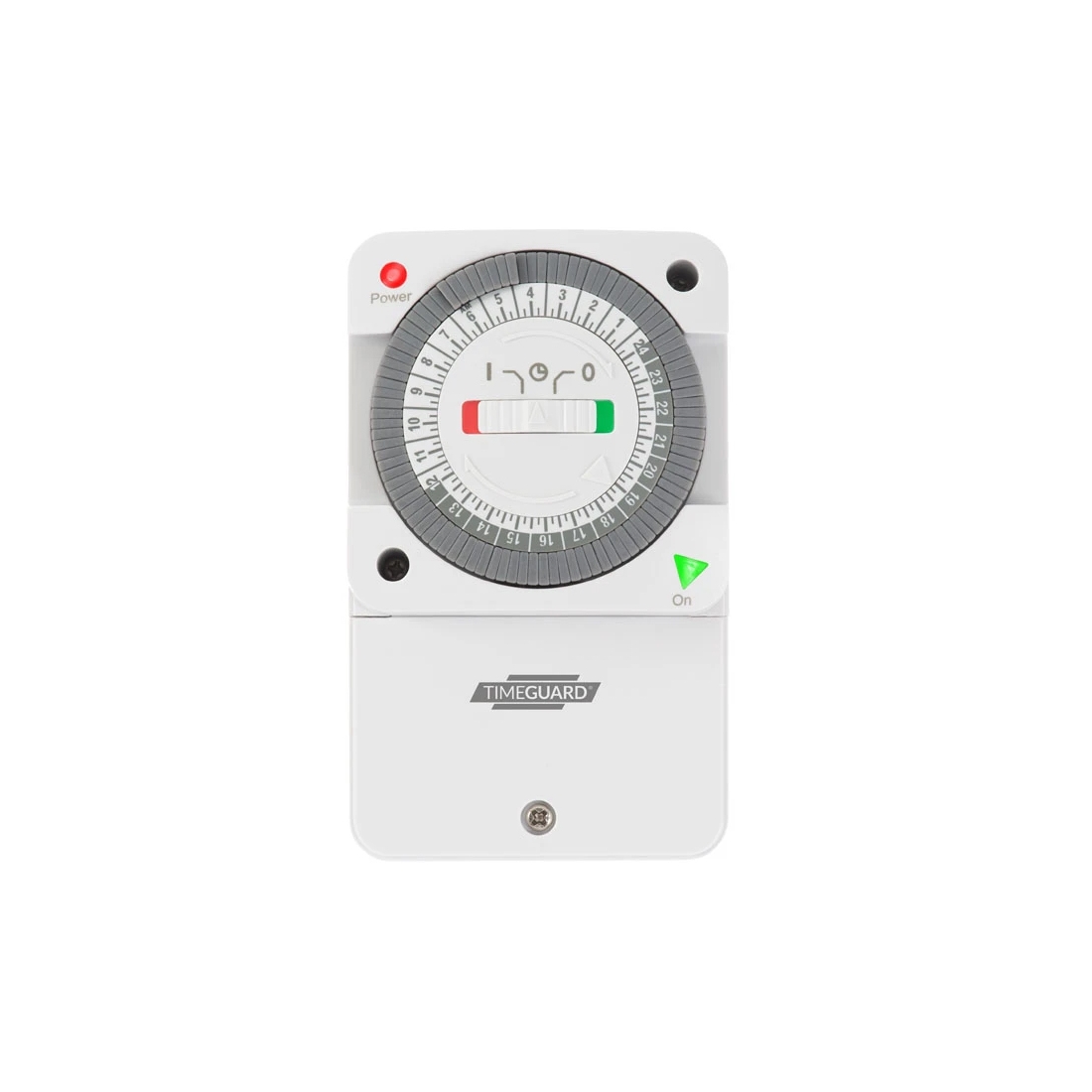

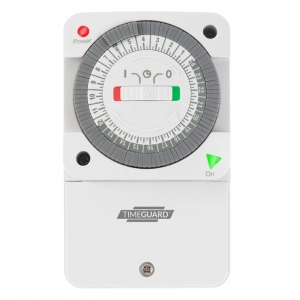

Timeguard NTT05 24 Hour Slimline Segment General Purpose Timeswitch With 48 ON + OFF Programs & Voltage Free Contacts 16(8)A
The Timeguard NTT05 24Hr Slimline Segment General Purpose Timeswitch is a slimline general purpose 24 hour segment time switch offers up to 96 quick-set segments of 15 minutes each for up to 48 on/off programmable periods per day. Set-up is done using the easy-to-use captive segment dial with permanent ON/OFF control.
within 1-2 working days
Timeguard NTT05 Description
The NTT05 is a slimline general purpose 24 hour segment time switch offers up to 96 quick-set segments of 15 minutes each for up to 48 on/off programmable periods per day. Set-up is done using the easy-to-use captive segment dial with permanent ON/OFF control. Features a red LED Mains ON and green LED Output indicators for easy viewing.
It can control outputs of up to 16A which makes it suitable for domestic immersion heaters. Features a link which can be removed to provide volt free contacts if required, making it suitable for a wider range of switching applications. If volt free is not required, the link must be left in place.
Suitable for wall mounting, it will fit a standard flush or surface mount box with 32mm minimum depth.
The NTT05 is designed for installation in both existing and new systems as well as general purpose halogen, incandescent, CFL and fluorescent lighting loads.
Timeguard NTT05 Features
- 16(8)A load rating.
- 96 quick-set segments for up to 48 ON/48 OFF programmes.
- Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (cfl’s). Not suitable for discharge lighting.
- Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
- Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.
- Switches ON and OFF at preset times.
- Easy to use captive segment dial.
- Permanent ON/OFF control.
- Voltage free contacts.
Brand : | Timeguard |
Part No : | NTT05 |
GTIN : | 5012483012369 |
Colour : | Black |
Current Rating : | 16A |
Voltage Rating : | 230V |
Type : | Mechanical |
Mounting : | Wall |
Height : | 115mm |
Width : | 7mm |
Guarantee : | 3 Years |
Depth : | 4mm |
Number of On Offs : | 48 |
