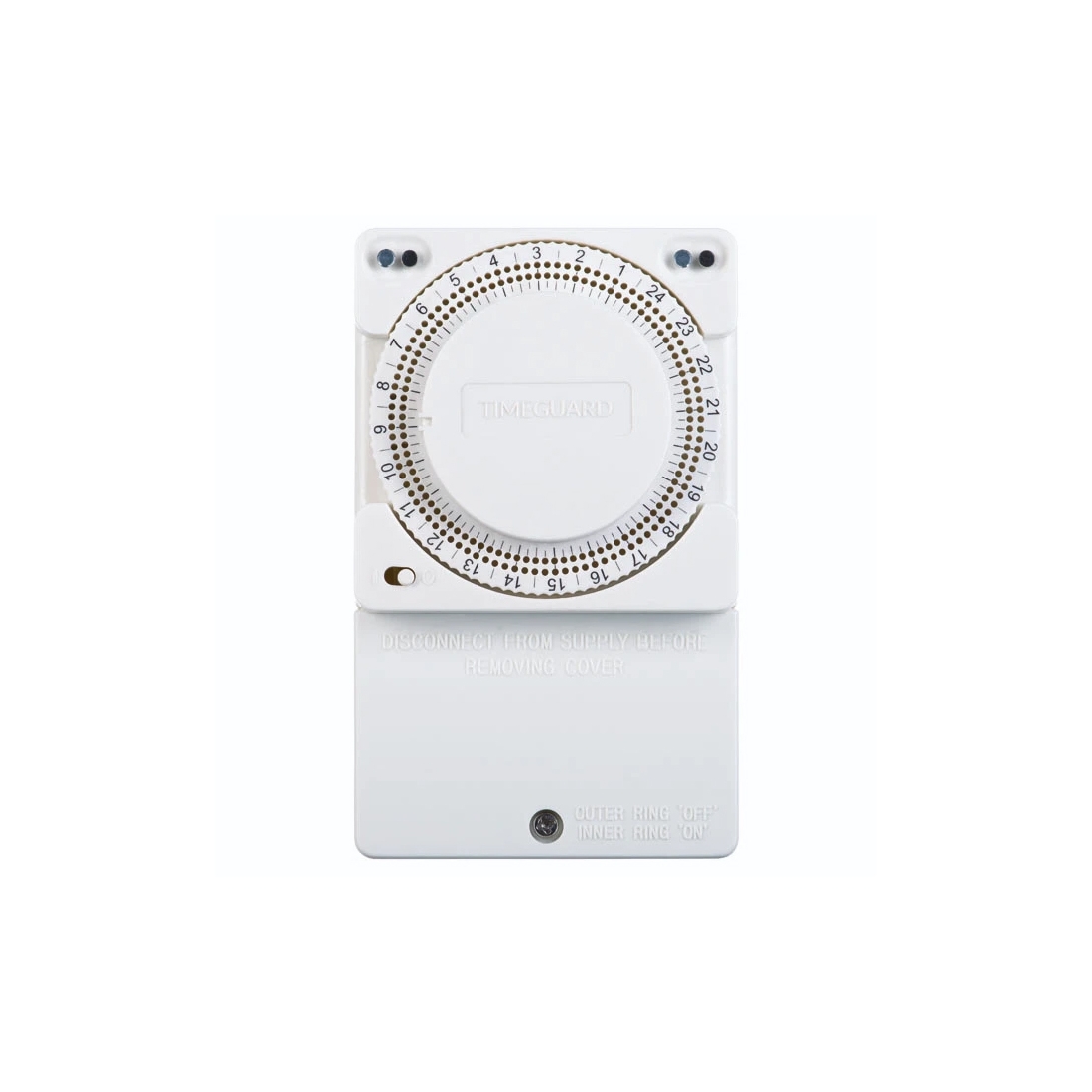

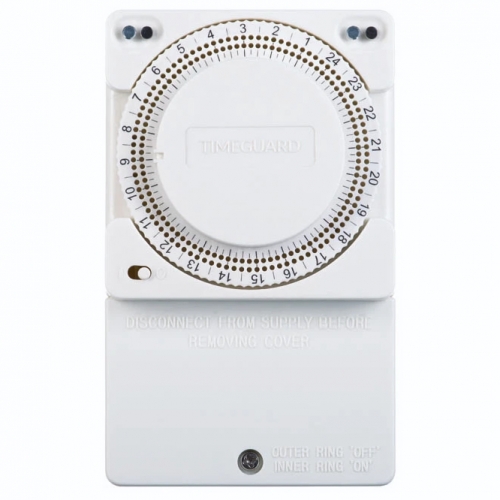

Timeguard TS900N White Compact 24 Hour Immersion Heater Time Controller With 30 Minute Minimum Switching & 24 ON & OFF Programs 13A (3kW)

Timeguard TS900N Description

The Timeguard TS900N 24 hour immersion heater time controller is easy to install, economical & convenient and boasts many features for total control of your hot water. Switch rating: 13A Resistive (3kW).

Specially designed for installation with both new and existing immersion heater systems. It can have up to 24 ON and OFF programmes (additional pins required) has easy to use setting pins and has a 30-minute minimum switching interval which can be increased in 15-minute steps. Features self-cancelling override until the next programme change, for instant ON/OFF switching.

The controller has bottom or rear entry for cables, making it easier when installing, and can accept 1.5mm² - 2.5mm² cable connection.

Timeguard TS900N Features

• 13A (3kW) loading.
• For total control of your hot water.
• Switches ON and OFF at preset times.
• Easy to use setting pins.
• 30 minute minimum switching interval which can be increased in 15 minute steps.
• Manual override until next programme change.
• Integral thermal fuse for extra protection.
• Bottom or rear entry for cable.
