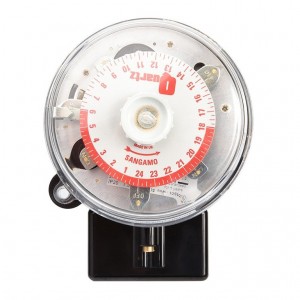

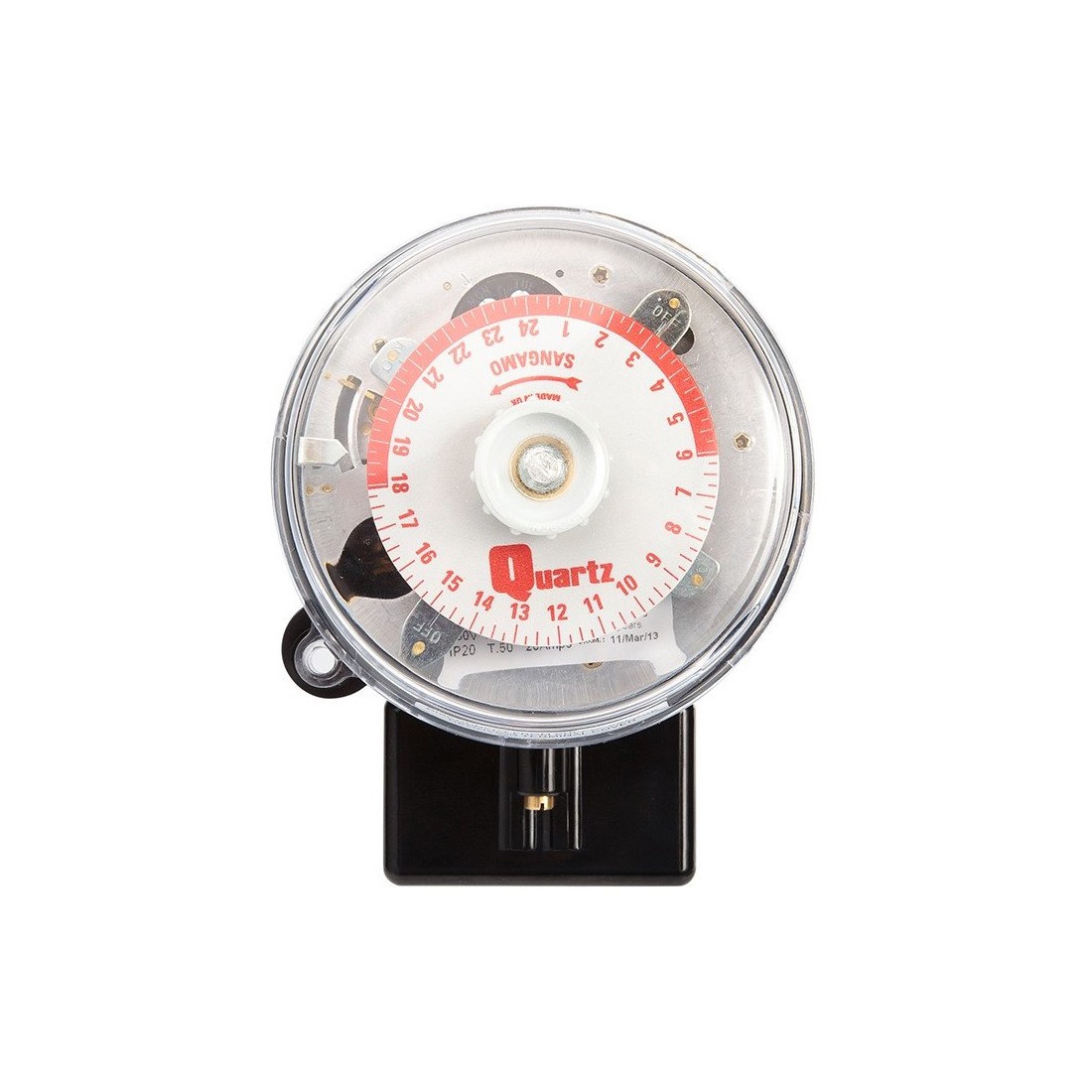

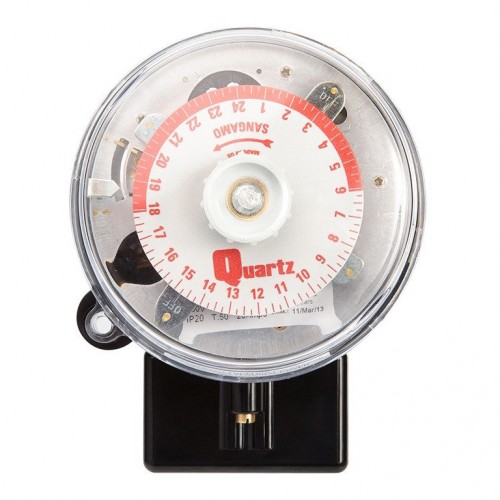

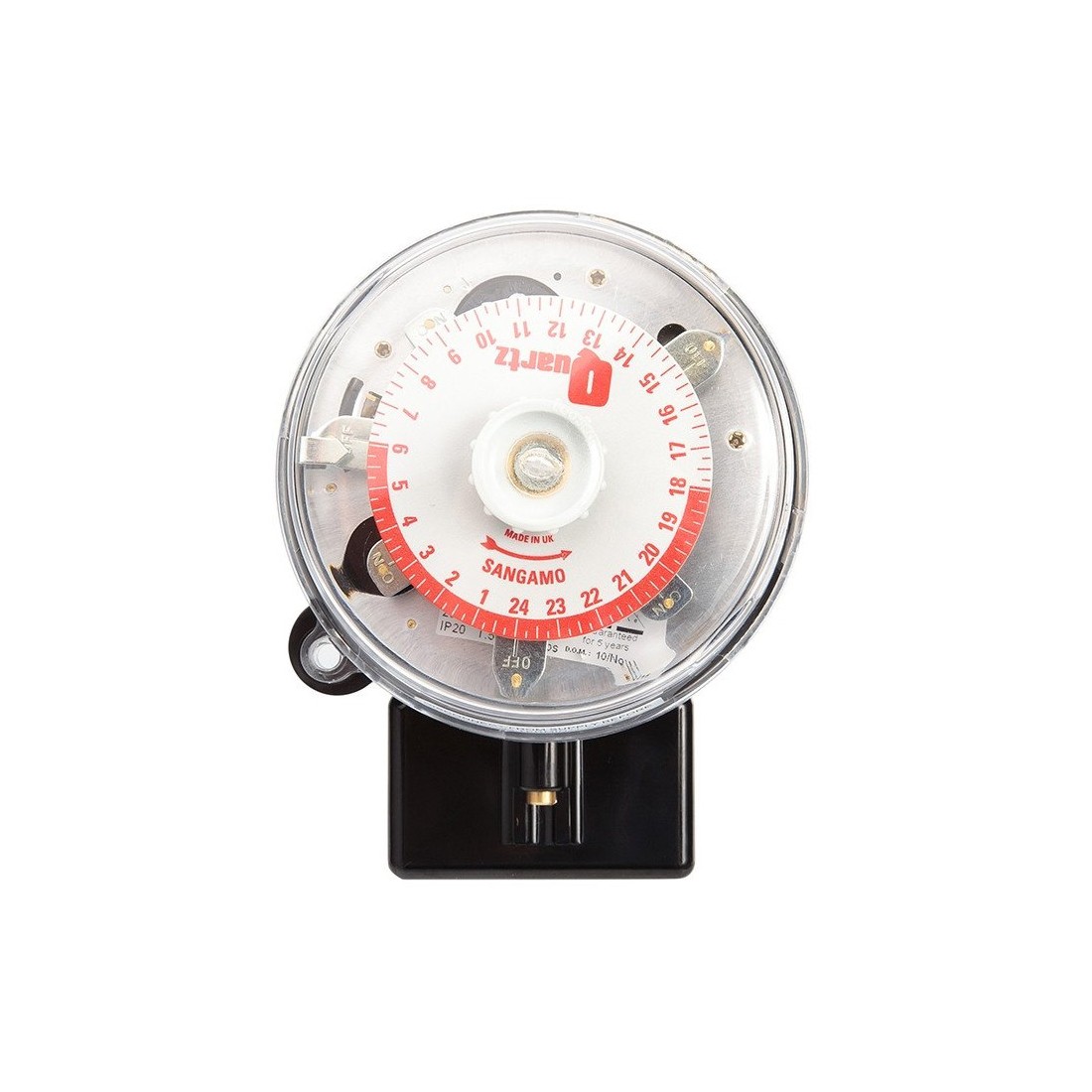

Sangamo Q554.2 Single Pole Single Throw 24 Hour Round Pattern Timeswitch With 2 On + 2 Off Operation, Battery Reserve, 3 Pin Base & Day Omit ON 20A

Sangamo Q554.2 Description

The 24 hour programming cycle performs the same sequence of switching operations on each day and can be quickly and easily set using the small manual levers on the dial. A “day omission” device allows you to select any number of days in the week on which the switching cycle can be disabled. A general purpose timeswitch for heating, ventilation and equipment control applications.

Specification:
Programming: 24 hour programme with 2 ON and 2 OFF operations per day
Display: 24 hour dial
Mounting: Surface mounting
Current Rating: SPST: 20amp resistive
Supply: 230V, 50/60 Hz a.c.
Base Type: 3 Pin
Reserve: 100 hrs (providing battery has been charged for 300 hrs)
Day Omission: Yes (omitts the “ON” operation)
Temp Override Facility (Manual Button): Advance to “OFF”, when program “ON” and will remain “OFF” unit next “ON” operation and vice versa
Cable Size: 6.0mm²
Timing Accuracy: 5 mins/year
Power Consumption: 0.6W at 230V
Ambient Temperature Range: Designed to operate over a temperature range of 0oC to 50oC continuous
Live Parts Protection: This timer is totally protected by its enclosure
Dirt Protection: Normal domestic dust deposits only
Moisture Protection: Ordinary - has no special protection against moisture
Shock Protection: Class 1 (Product must be earthed)
Dial Calibration: 15 min divisions
Setting Accuracy: +/- 3 minutes
Period Between unlike Operations: 15 minutes minimum
Period Between like Operations: 1 3/4 hours minimum
BEAB Approval: Yes
Dimensions: H (wall mounted) 136mm, W 105.7mm, Proj. 82mm, (Total height 146.5mm)
