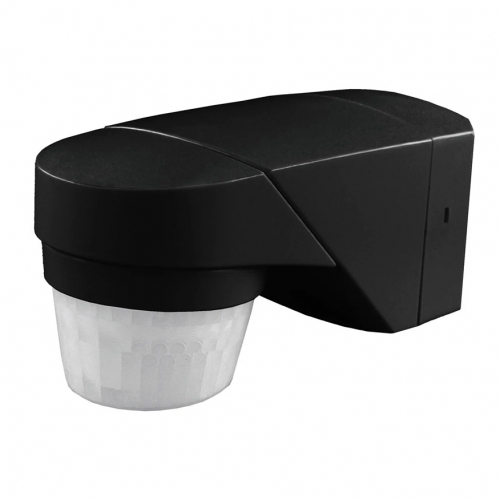

Timeguard MLSA360NP Black 200° | 12m Exterior PIR Sensor With Anti-Creep Zone

Timeguard MLSA360NP Description

The Timeguard MLSA360NP Multiway Mounting PIR Light Controller provides reliable automatic control of lighting and electrical loads using a passive infrared motion sensor (PIR). It is designed to enhance safety, convenience and energy efficiency by switching lights on only when movement is detected, reducing unnecessary energy use.

This PIR controller features a wide 200° frontal detection angle with up to 12 m range, plus 360° anti-creep downward coverage (up to 5 m diameter at 2.5 m mounting height), giving comprehensive sensing in most spaces. The sensor head is adjustable horizontally (90°) and vertically (30°), offering precise control over detection direction.

Installation is straightforward with multiple mounting options — surface, ceiling, inner corner or outer corner — allowing placement where it’s most effective. Additional functions like manual override, pulse support for staircase timing, adjustable sensitivity and lux (light level) settings help tailor the controller’s performance to a wide variety of indoor and outdoor applications. Built with a robust IP55 weatherproof rating and backed by a 3-year guarantee, the MLSA360NP is ideal for controlling security lighting, corridors, entrances, warehouses, communal areas and outdoor pathways.

Timeguard MLSA360NP Features

• Multiway mounting PIR light controller — automated control for lighting and electrical loads.
• 200° frontal detection angle with 12 m range — broad motion sensing coverage.

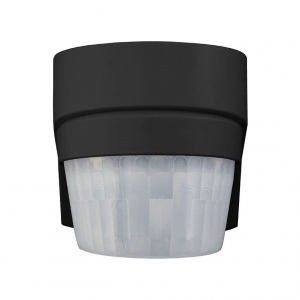

• 360° anti-creep downward detection Ø5 m at 2.5 m height — prevents missed triggers underneath sensor.

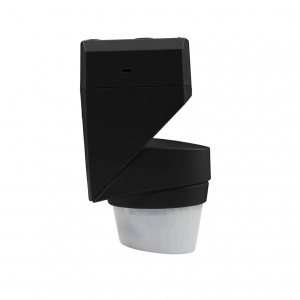

• Adjustable sensor head — 90° horizontal and 30° downward tilt for custom orientation.
• IP55 weatherproof rating — suitable for indoor or sheltered outdoor use.
• Manual override function — allows lights to be switched on/off manually when required.
• Pulse function support — staircase timer operation support.

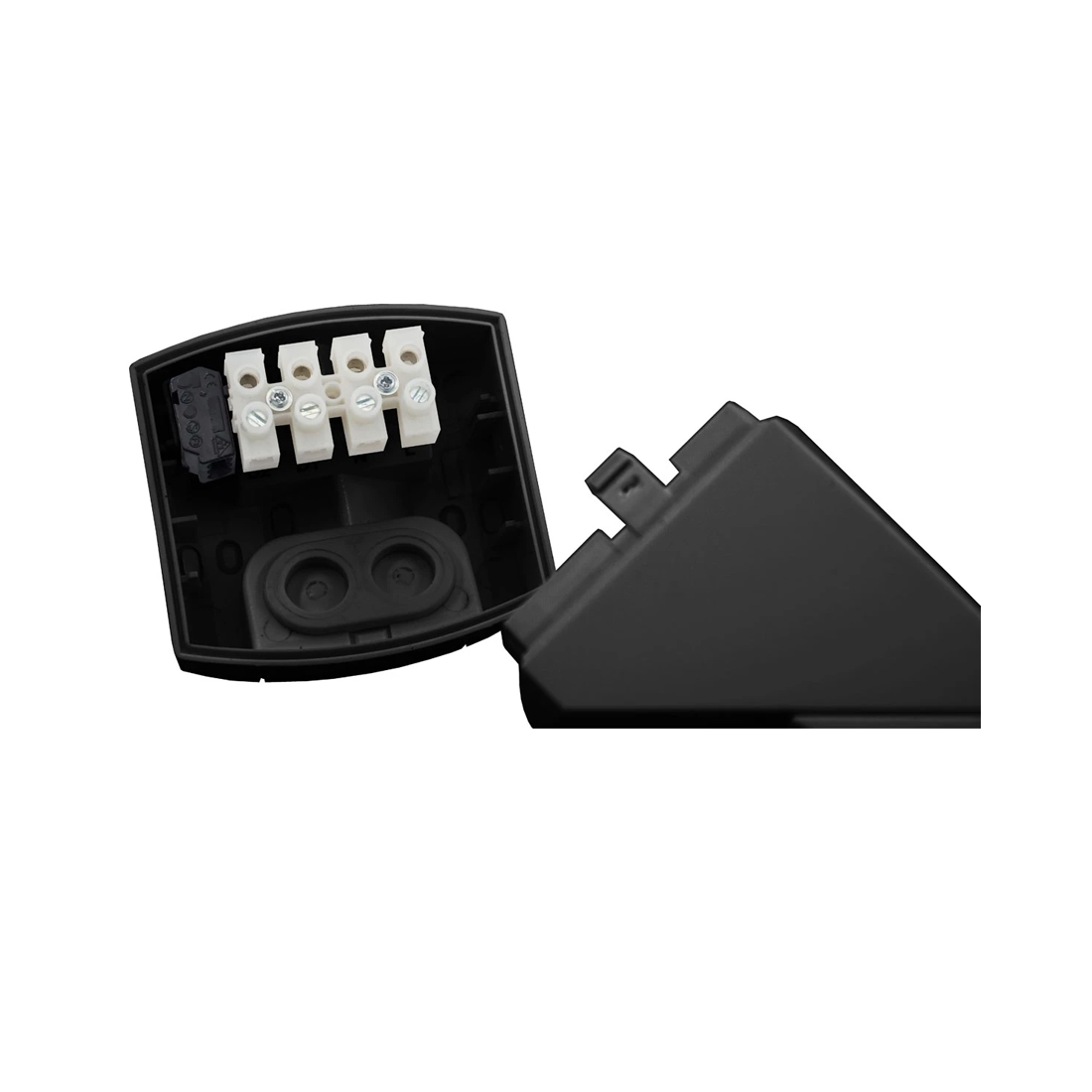

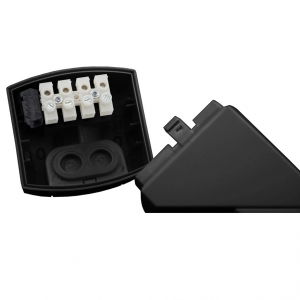

• Easy installation with quick-fix terminal block connection.

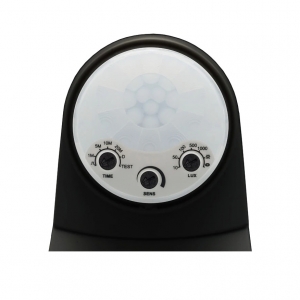

• Adjustable sensitivity and lux level settings — tailor the motion and light threshold.

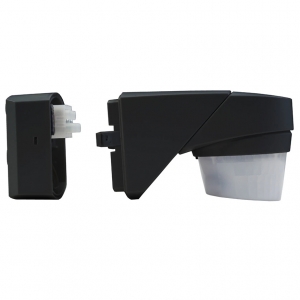

• Multiple mounting options — surface, ceiling, inner or outer corner.
• Switch rating versatility — compatible with a wide range of loads including LED, fluorescent and halogen types (typically up to 600 VA / 400 W for LED, and higher for other loads depending on configuration).
• Class II double insulated — safe for installation without earth connection.
• 230–240 V AC mains operation — standard UK electrical compatibility.
• 3-year manufacturer guarantee for long-term confidence.
