Timeguard STLW1000 Suretime White 1000W IP55 180° | 8-12m Outdoor PIR Sensor

Timeguard STLW1000 Description

The Timeguard STLW1000 Suretime Outdoor PIR Light Controller provides motion-activated switching for outdoor lighting circuits such as garden lights, pathways, driveways, security lights and more — automatically turning lights on when movement is detected and off after a set period. Designed for surface mounting, this weather-resistant PIR sensor delivers reliable performance in exterior environments, with IP55 protection guarding against dust and low-pressure water jets.

Its 180° detection angle and 8 – 12 m range at a typical mounting height of 2.5 m offers broad coverage for outdoor areas, while adjustable time-on (3 s to 18 min) and light-level (10 – 1000 lux) controls let you tailor activation behaviour to suit site conditions — ensuring lights activate only in low light and stay on for the desired duration. A manual override (pulse) feature allows lights to be held on temporarily when needed.

Built with large, accessible terminals and knockouts for cable entry from underneath, the STLW1000 makes installation straightforward. With compatibility for high-load switching (up to 1000 W resistive/halogen or 200 W fluorescent/LED), robust IP55 build quality and a clean white finish, it’s a versatile choice for efficient outdoor lighting automation.

Timeguard STLW1000 Features

• Outdoor PIR motion sensor controller — automatic lighting activation on motion.
• 180° detection angle — wide sensing coverage for outdoor spaces.
• Detection range approx. 8 – 12 m at ~2.5 m mounting height.
• IP55 weatherproof rating — suitable for exposed exterior installations.
• Adjustable time-on setting — 3 s to 18 min user-selectable.
• Adjustable lux/light-level control — ensures activation only in darkness.
• Manual override (Pulse) — temporary extended light-on when needed.
• High-load switching — up to 1000 W resistive/halogen or 200 W fluorescent/LED loads.
• Knockouts underneath PIR — allows convenient cable entry from beneath.

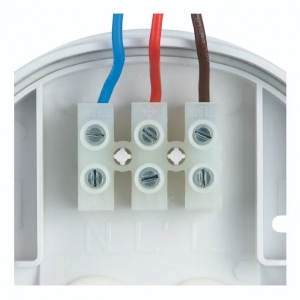

• Large terminals — secure, easy wiring.
• 230 V AC mains operation — compatible with UK power systems.
• Compact white design — neat and unobtrusive exterior appearance.
• Operating temperature range –20 °C to +40 °C — reliable performance in varied climates.
• Class II double-insulated construction — safe and durable.
• 2-year manufacturer guarantee — long-term peace of mind.
