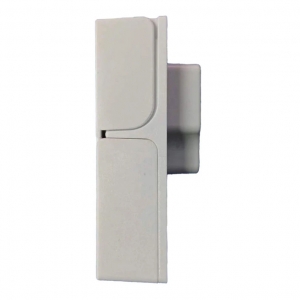

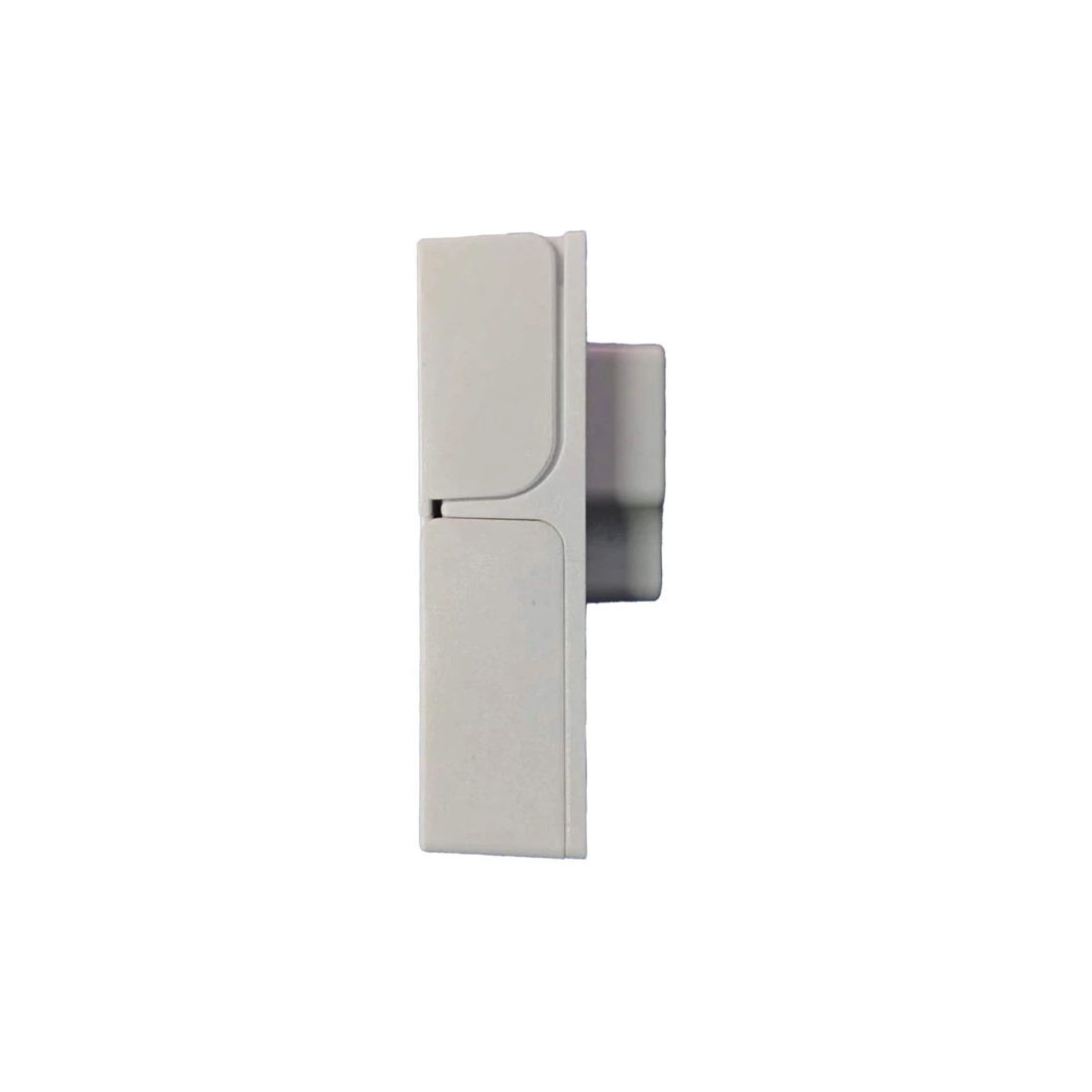

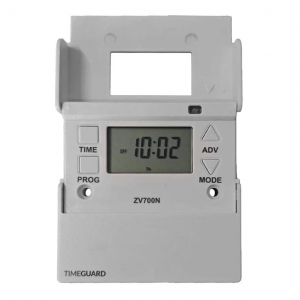

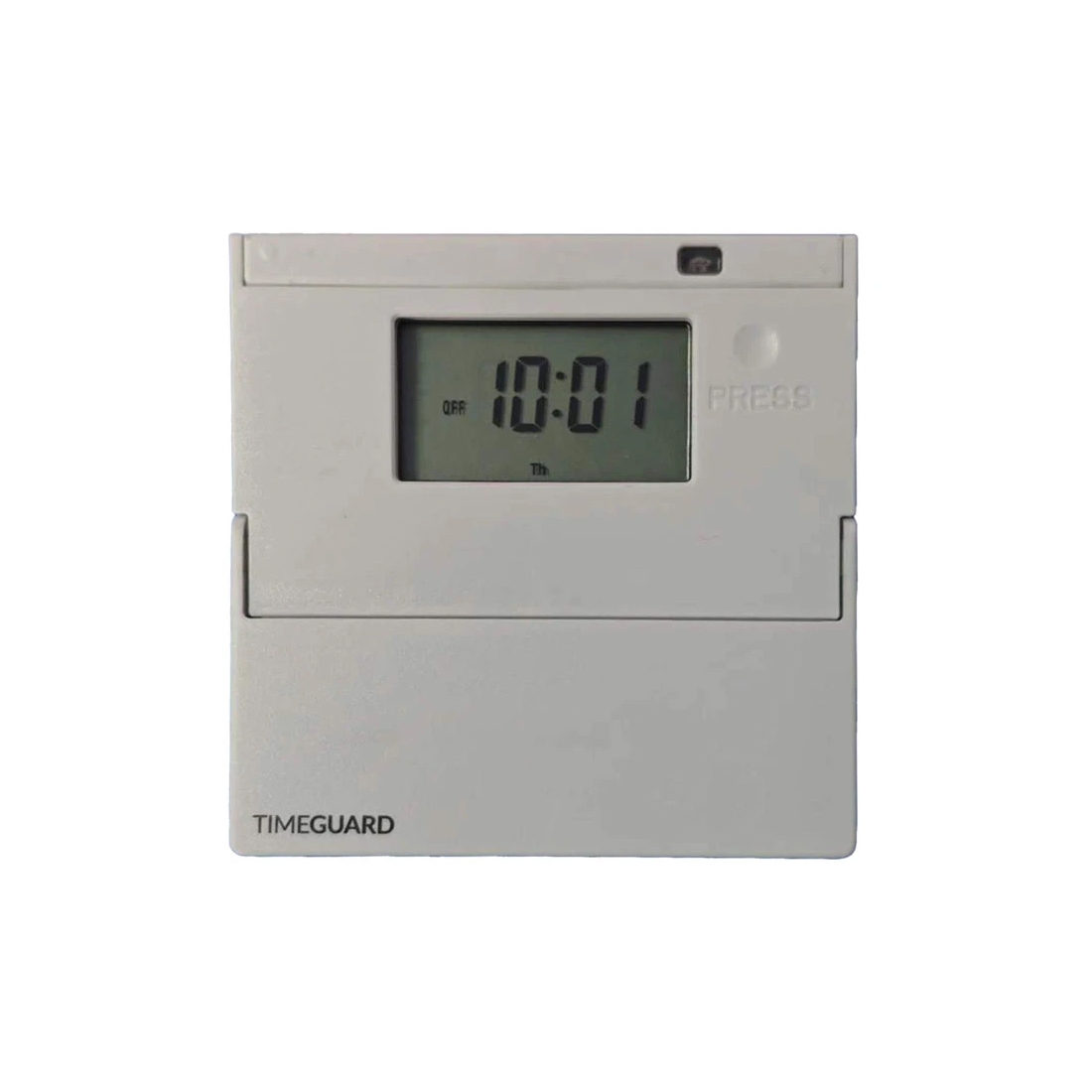

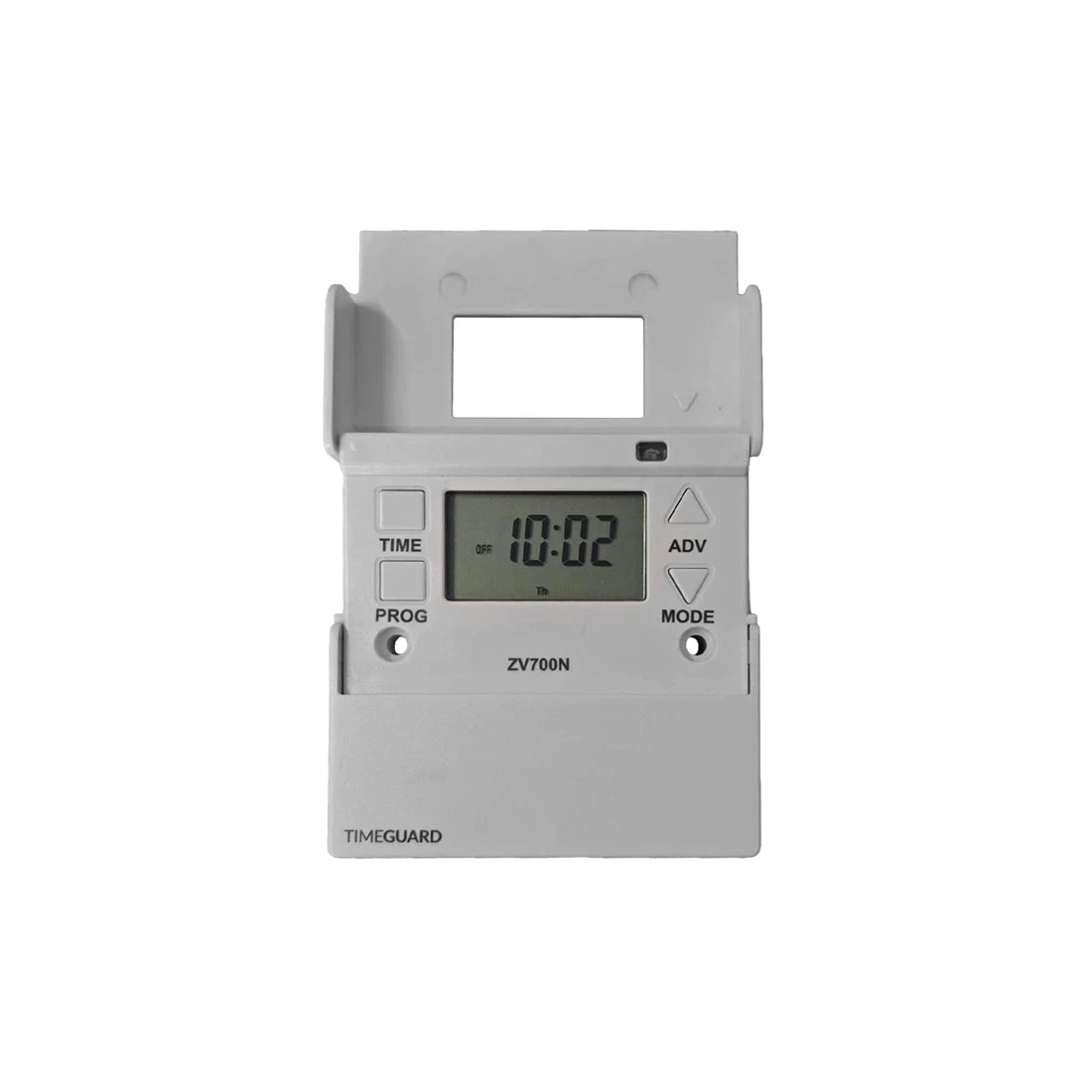

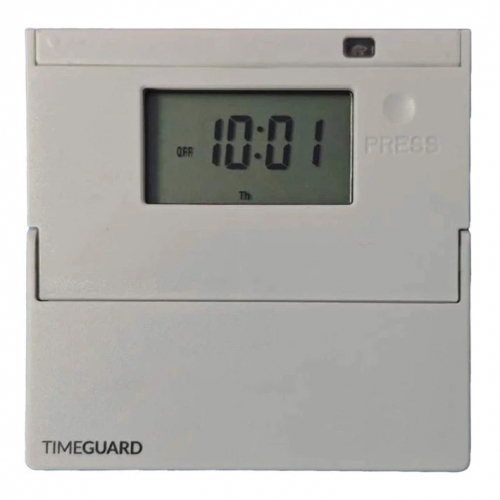

Timeguard ZV700N White 7-Day Digital Programmable Security Light Switch With Optional Dusk Start

Timeguard ZV700N Description

The Timeguard ZV700N Digital Light Switch with Optional Dusk Start is an innovative and versatile lighting controller that blends the simplicity of a standard wall switch with powerful timed and dusk-triggered automation. Designed to replace a conventional light switch in 2-wire installations with no neutral required, it enables users to schedule lighting automatically each week, set light-level-activated control at dusk, or operate lights manually when desired.

Programmes can be configured across six ON/OFF periods, supporting either 5-day + 2-day groupings or individual control for all 7 days, displayed on an easy-view blue illuminated screen for quick setup and status checking. Optional photocell mode ensures the output only switches on when ambient light falls below a threshold during a programmed ON period, while random mode varies ON/OFF times by up to 30 minutes to improve home security simulation. The unit also offers permanent ON/OFF, auto mode based on schedules, and manual override via a rocker switch — all backed by an internal battery that retains time and programmes and prevents flicker when low-load LED lamps are used.

This model fits standard BS wall boxes (minimum 25 mm depth) and is easy to install in either flush or surface mount configurations. Its robust polycarbonate construction, 230 V AC operation, and automatic summer/winter time changeover make it a convenient and reliable option for lighting automation in homes, porches, gardens, and security lighting circuits.

Timeguard ZV700N Features

• Digital light switch with optional dusk-start control — combines manual switching and timer automation.
• Six programmable ON/OFF periods (5+2 or 7-day configuration) with backlit easy-view display.
• Auto mode: output controlled by programmed schedules.
• Photocell mode: output only activates if ambient light falls below threshold during ON periods.
• Random switching mode: adjusts programmed times ±30 minutes to simulate occupancy.
• Manual mode: manual control via rocker switch independent of programmes.
• Internal battery backup retains time and programmes during power interruptions.
• 230 V AC, 50 Hz operation compatible with UK electrical systems.
• Fits standard BS wall box (min. 25 mm depth), surface or flush mount.

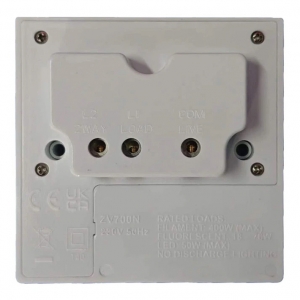

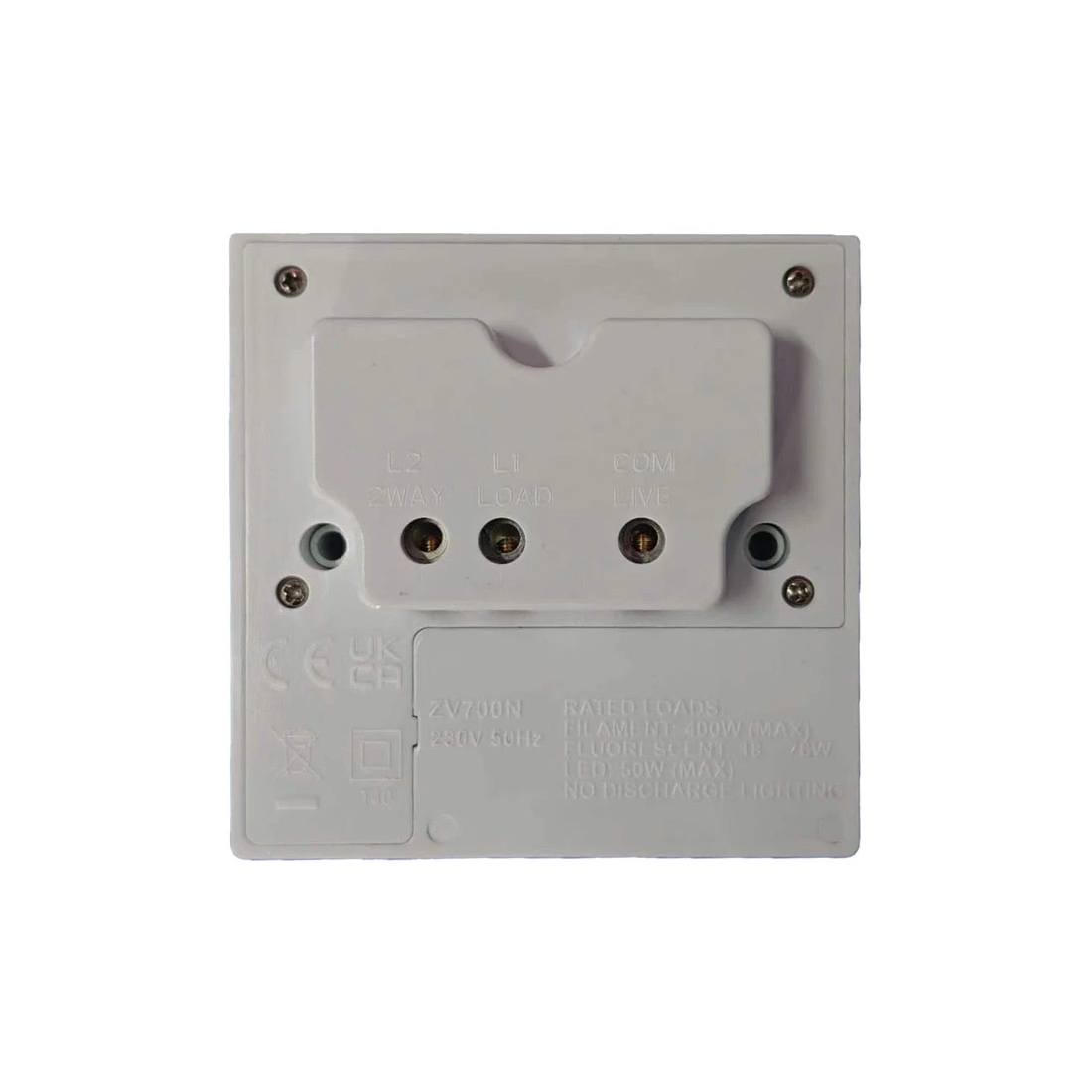

• 2-wire connection (no neutral required) simplifies installation.
• Switch rating: up to 50 W LED, extendable to 200 W with ZV900 load controller accessory (sold separately) — also suitable for filament, low energy and fluorescent loads within spec.
• Automatic summer/winter time changeover for convenience.
• IP20 indoor rating for wall-mounted internal use.
• Compact white polycarbonate design (85 × 85 × 35 mm) that suits modern décor.
• 3-year manufacturer guarantee for peace of mind.
