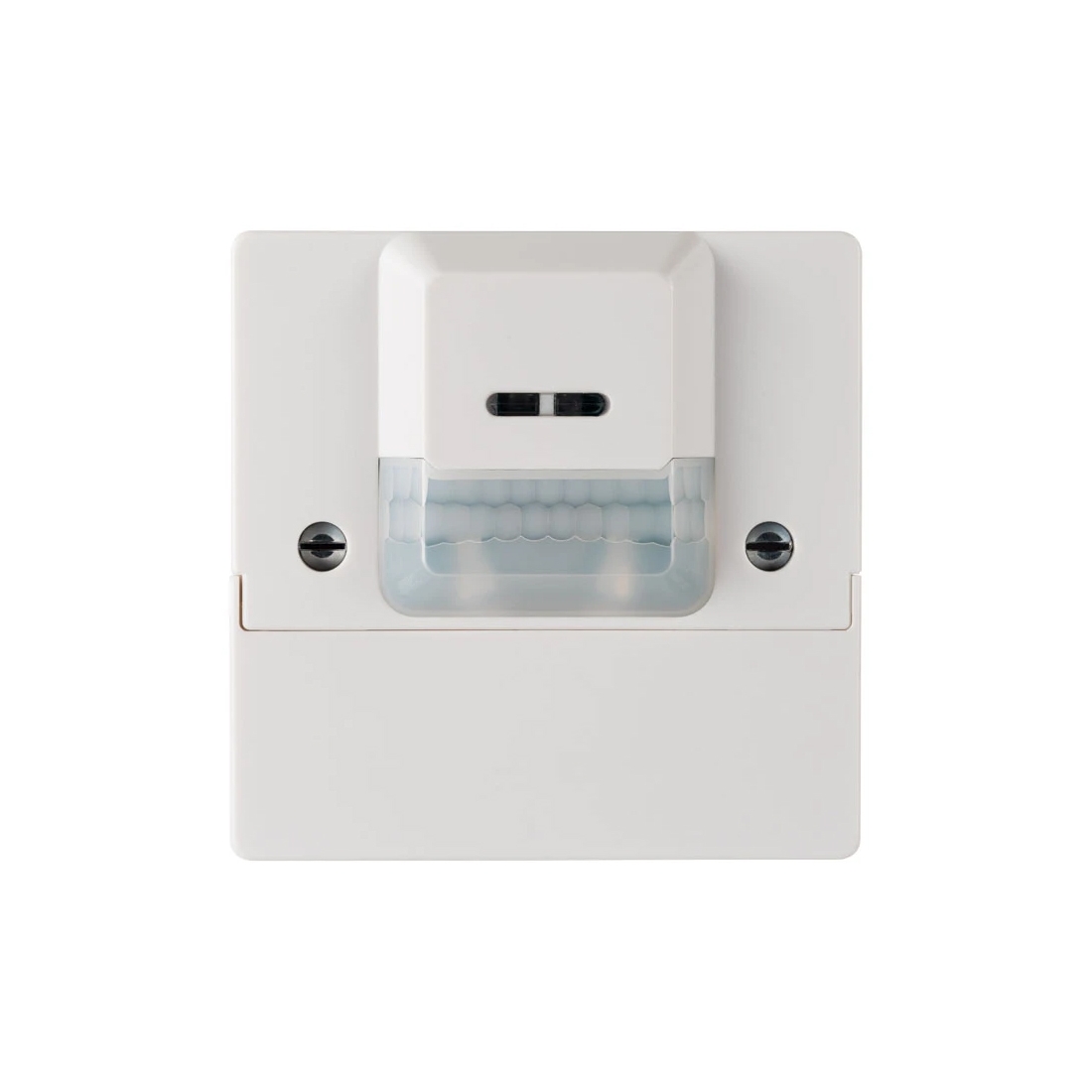

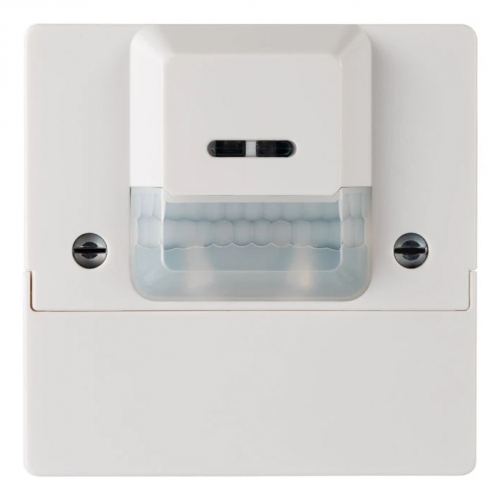

Timeguard ZV810N White 1 Gang 2 Way Motion Sensor PIR Security Light Switch With 170° Detection Area | Detection Range: 8m | 10sec - 15min Adjustable Timing IP40
The Timeguard ZV810N 1 gang 2 way motion sensor PIR security light switch detects the movement of passive infrared (PIR) body heat and movement and automatically switches the light ON and after a pre-set time turns it OFF again.
within 3-4 working days
Timeguard ZV810N Description
The Timeguard ZV810N 1 gang 2 way motion sensor PIR security light switch detects the movement of passive infrared (PIR) body heat and movement and automatically switches the light ON and after a pre-set time turns it OFF again.
It replaces an existing one- or two-way 2-wire light switch and has an 8m detection range and 170º area of detection. Features adjustable light ON settings from 10 seconds to 15 minutes and an adjustable Lux (light level) setting to avoid nuisance switching in good natural daylight.
Suitable for switching maximum loads of 2000W halogen lighting, 250W fluorescent lighting (Low-loss or Electronic ballast), 250W compact fluorescent lighting (Electronic ballast) and 400W LED lighting.
IP40 rated, it can be flush and surface mounted both indoor and outdoor using a standard 1 gang 25mm mounting box.
Whether it is ensuring lights are not left on in empty rooms or scaring off intruders, the ZV810 makes a superb addition and can save energy and improve your security at the same time. Suitable for brightly lit offices and commercial spaces as well as for domestic properties.
Timeguard ZV810N Features
- Permissible Switching Loads: 2000W Halogen, 250W Fluorescent (Low-loss or Electronic ballast), 250W CFL (Electronic ballast), 400W LED lighting.
- ON/OFF/AUTO slide switch function (Switch can be enabled or disabled).
- 170° detection area with an 8m (front) and 4m (sides) detection range.
- Replaces existing One or Two Way light switches – 2 wire.
- Supplied with 9V battery.

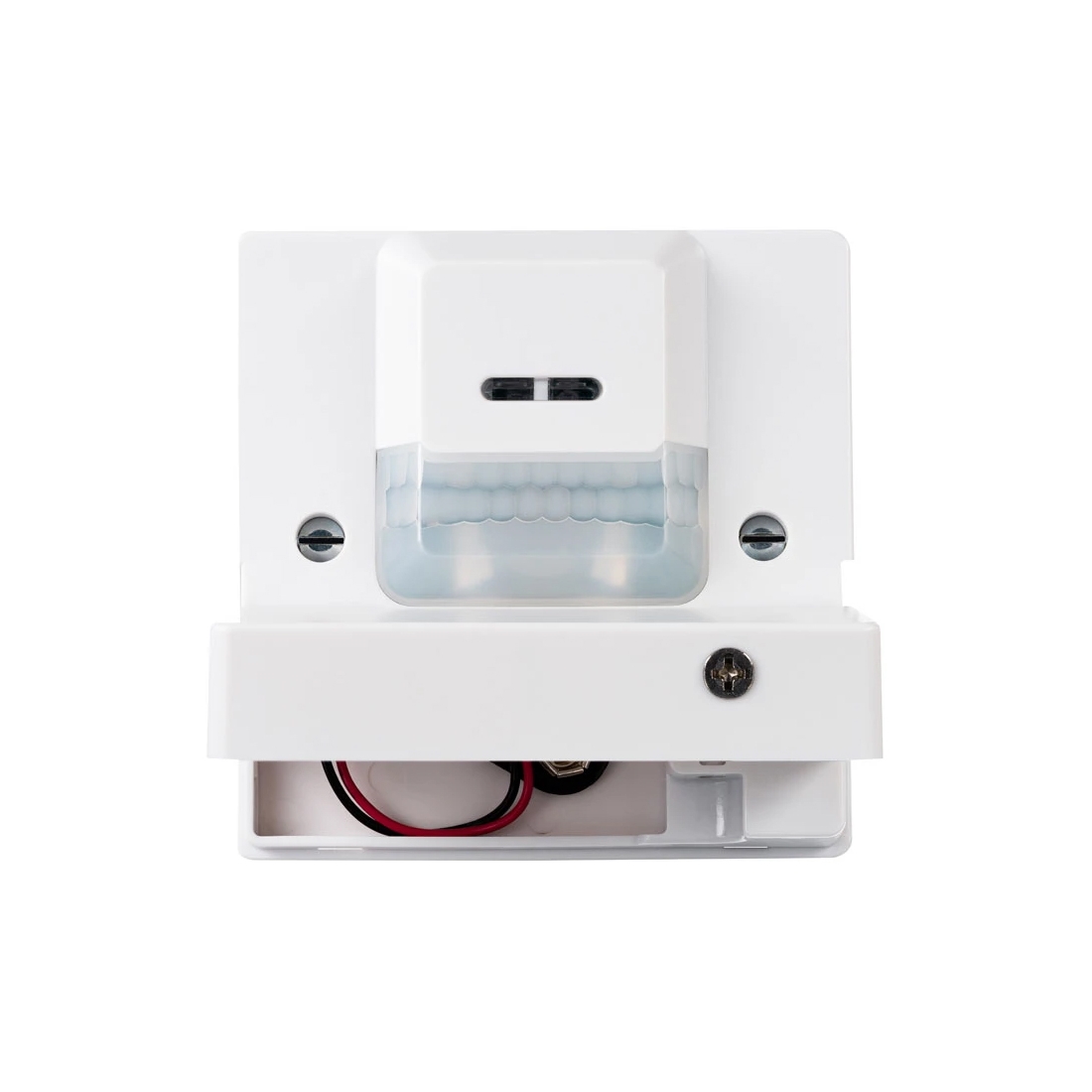

- Concealed front panel with retaining screw.
- Red LED motion indication.
- Adjustable time ON setting; 10sec (Min) to 15min (Max).
- Adjustable lux (Light level) setting.
- IP40 weatherproof rating.
- Class II double insulated.
Brand : | Timeguard |
Part No : | ZV810N |
GTIN : | 5012483012857 |
Colour : | White |
Product Range : | Automatic Light Switches |
Voltage Rating : | 230V |
IP Rating : | IP20 |
Number of Gangs : | 1 |
Type : | Motion Sensor PIR Light Switch |
Dimensions : | (H)86 mm x (W)86 mm x (D)38 mm |
Mounting : | Wall |
Height : | 86mm |
Width : | 86mm |
Frequency : | 50/60 Hz |
Guarantee : | 3 Years |
Depth : | 38mm |
Detection Angle : | 170° |
Detection Range : | 8m |
Lux Adjustment : | Yes |
Battery Back Up : | Yes |
