Fusebox EV40ABD 4 Way EV Charger Consumer Unit With 100A Switch Isolator, 40A 30mA Type A Mini Bi-Directional RCBO & Blank

Fusebox EV40ABD Description

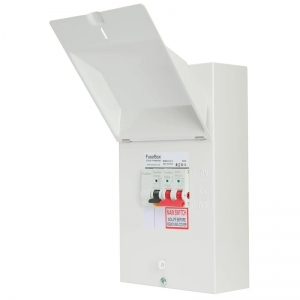

The Fusebox EV40ABD is a white IP2X rated compact pre-populated metal consumer unit designed to provide the supply and protection to electric vehicle chargers.

18th Edition Amendment 2 compliant. Pre-populated with 100A mains Switch Isolator, 40A 6kA 30mA double pole bi-directional miniature RCBO and ADRB blank. For use when the EV charger supply cable does not have mechanical protection.

The IP2X-rated all metal enclosure of the Fusebox EV40A is robust and suitable for installation indoors.

The EV40ABD is easy to install and use with earth and neutral terminal bars at the top, removable and raised DIN rail and round knock-outs on top, bottom and sides.

The compact, modern and lightweight design makes it a perfect fit for any garage or indoor space.

Fusebox EV40ABD Features

• Fusebox EV40ABD pre-populated Consumer Unit
• 18th Edition Amendment 2 compliant
• Designed specifically for use with EV vehicle chargers
• Durable white metal enclosure
• IP2X rated suitable for internal use
• 2 usable ways
• 100A mains Switch Isolator
• 40A 6kA 30mA double pole bi-directional miniature RCBO
• 1 x ADRB blank
• Earth and neutral terminal bars at the top
• Removable and raised DIN Rail
• Quick and easy installation
• Top, bottom, side round cable entry points
• Captive front cover screws
• For use when the EV charger supply cable does not have mechanical protection
• Conforms to BS EN61439-3
• Dimensions: Height: 261mm | Width: 152mm | Depth: 93mm
