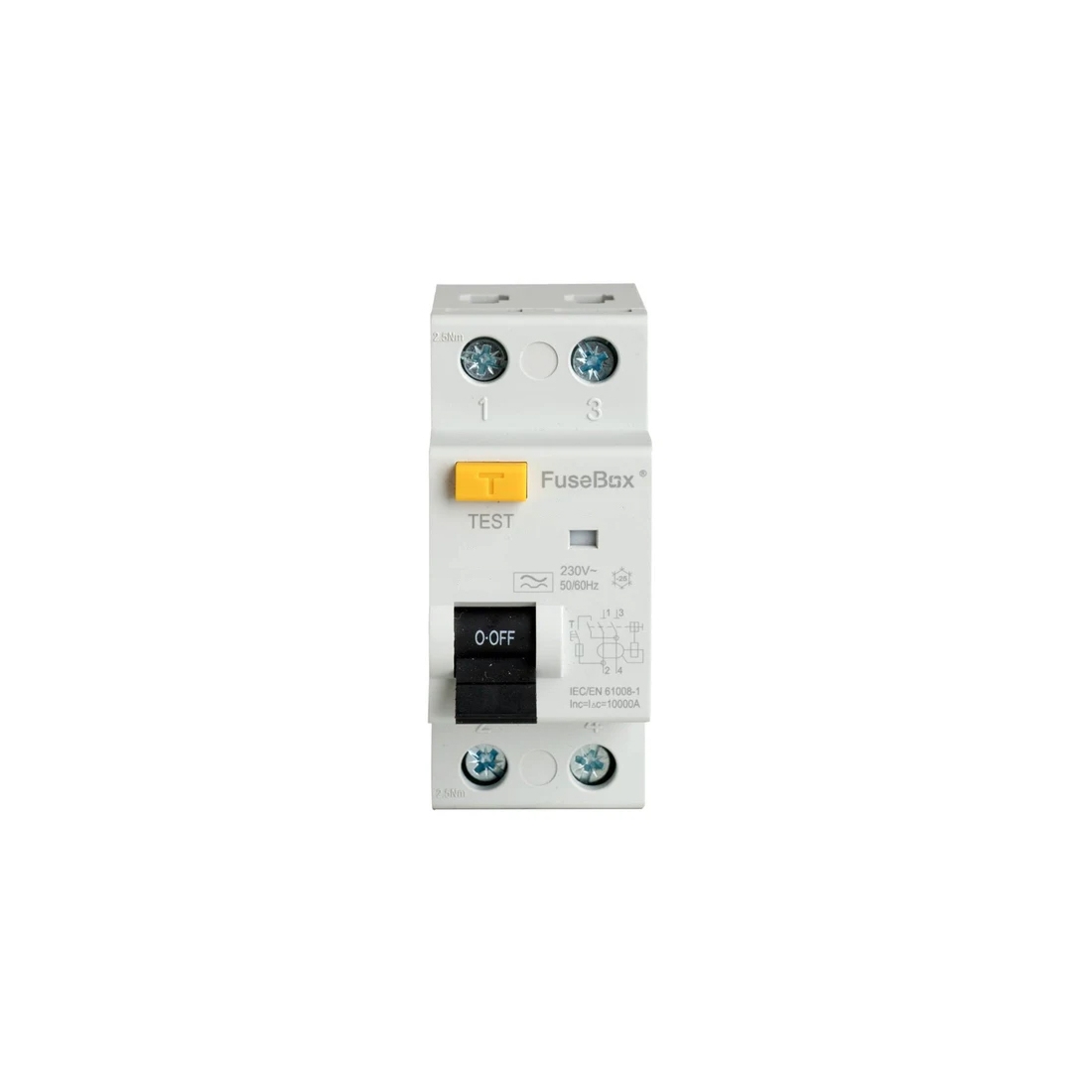

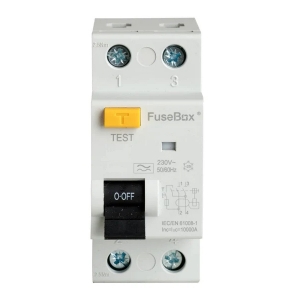

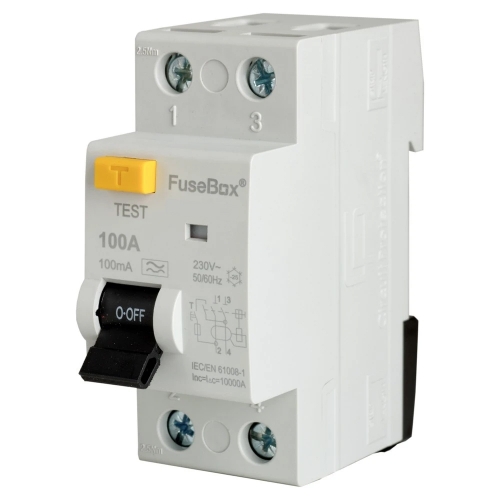

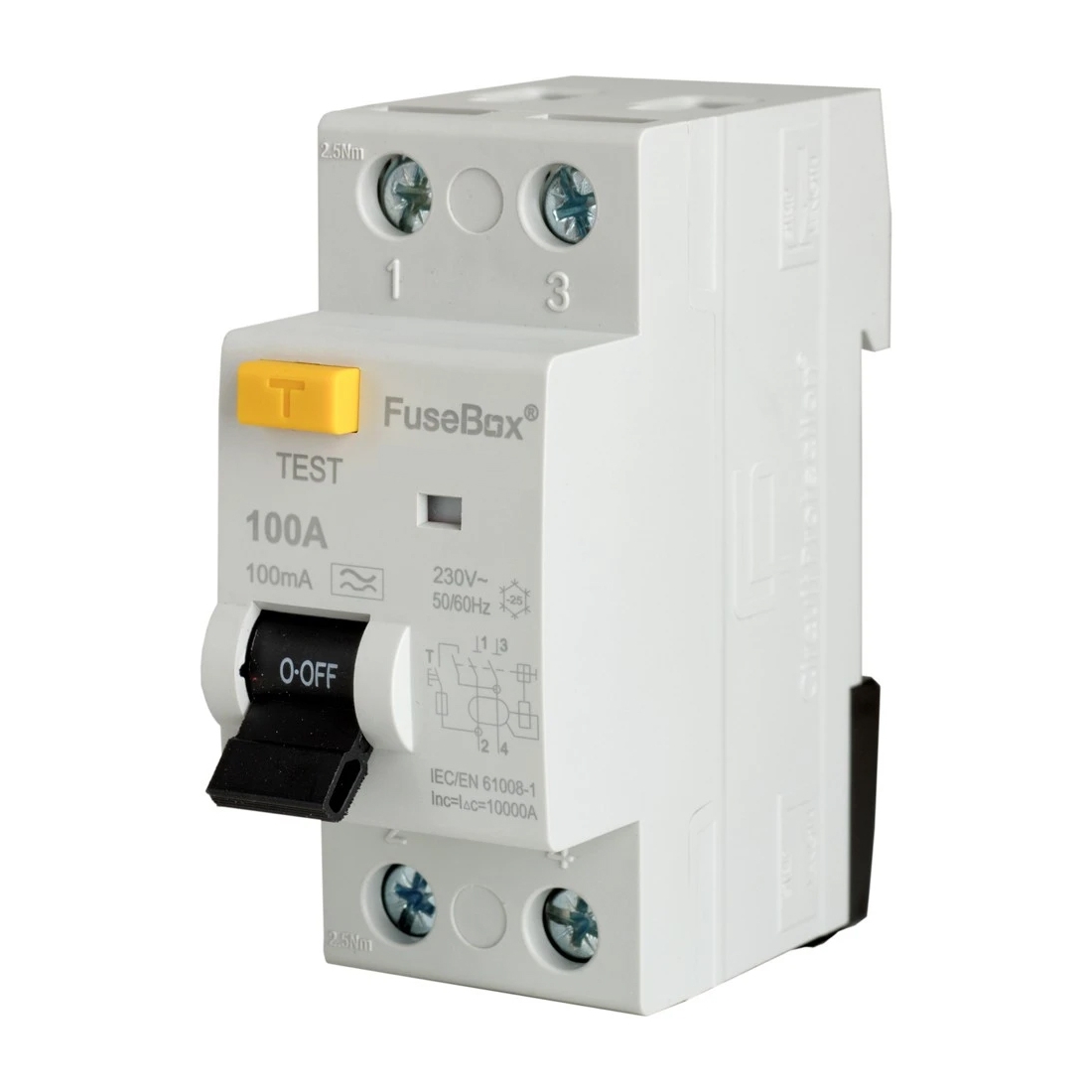

Fusebox RTA1001002S 2 Module 100A 100mA Double Pole Type A DIN Rail Time Delayed RCD

Fusebox RTA1001002S Description

The FuseBox RTA1001002S 2 module Type A 100A 100mA double pole Time Dealyed Residual Current Device (RCD) is typically used as a main incomer to a consumer unit or as a sub-main RCD in commercial or industrial settings. Offers essential protection against earth leakage faults for applications where additional fault protection is required.

100A current rating, suitable for use as a main switch and a point of isolation for consumer units in both domestic and light commercial applications.

100mA trip sensitivity is designed to provide fire protection and to prevent risk to equipment.

The time-delay function allows it to differentiate between downstream faults, meaning faster-acting RCD or RCBO on the individual circuit to trip first. This prevents the entire board from losing power in the event of a single fault.

Type A RCD provides protection against AC fault currents and pulsating DC fault currents.

Double-pole isolation ensuring both the live and neutral conductors are disconnected simultaneously when a fault is detected, providing a complete and safe isolation.

2 module width (36mm) allows it to be neatly integrated into a standard consumer unit, saving valuable space.

Designed for quick and secure mounting on a standard 35mm DIN rail, ensuring a hassle-free and professional installation.

Compliant with BS EN 61008-1.

Fusebox RTA1001002S Features

• Fusebox RTA1001002S 2 module DP 100A 100mA Time Delayed RCD
• Time-delay function allows it to differentiate between downstream faults
• Preventing a single fault from tripping the entire electrical system
• Suitable for high-load circuits in residential and commercial installations
• 100mA sensitivity – Detects earth leakage currents to reduce the risk of electric shock
• DP protection – Isolates both live and neutral conductors for maximum safety
• DIN Rail mounting – Compact design fits seamlessly into FuseBox consumer units
• Built with robust materials for long-lasting reliability
• Fully compliant with UK regulations and safety standards
