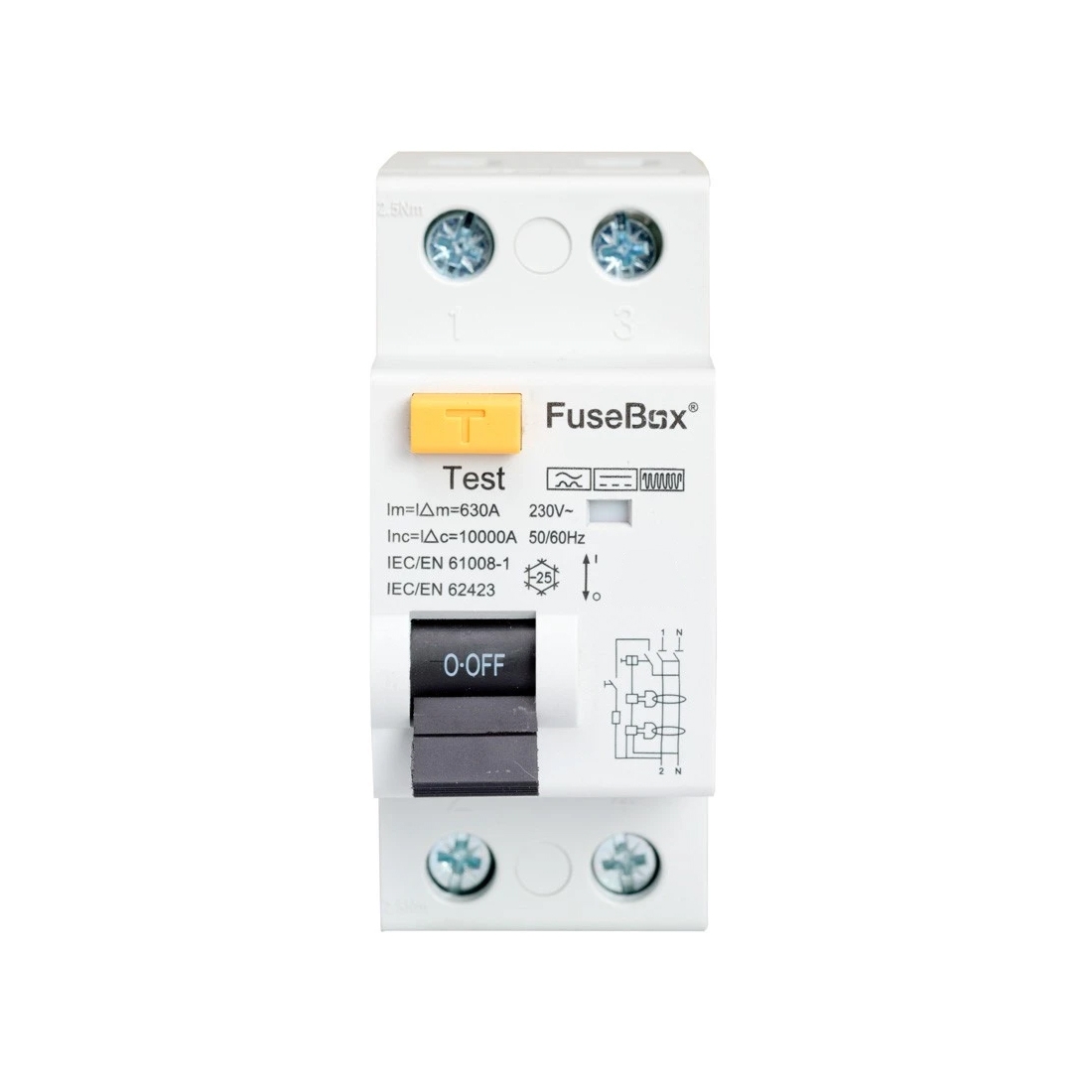

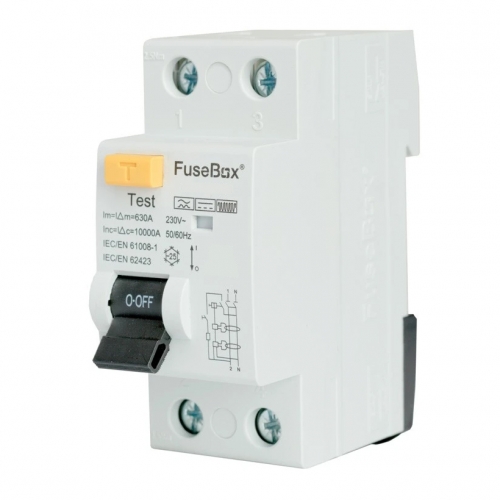

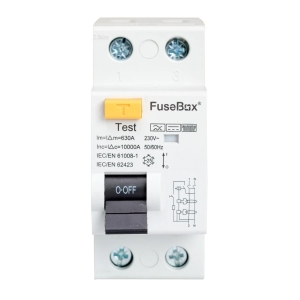

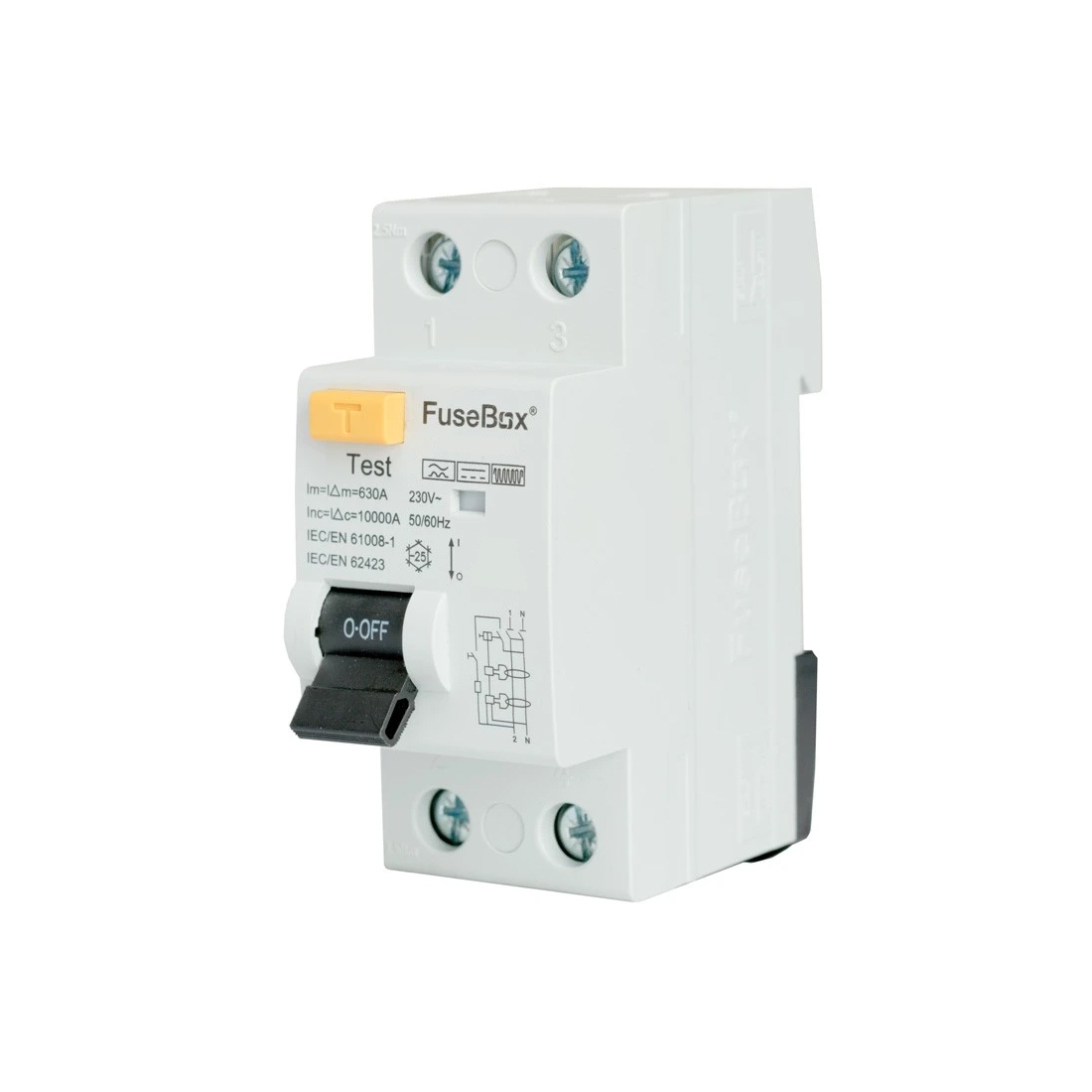

Fusebox RTF250302 2 Module 25A 30mA Double Pole Type F DIN Rail High Frequency RCD

Fusebox RTF250302 Description

The FuseBox RTF250302 2 module 25A 30mA Double Pole Type F Residual Current Device RCD is specifically designed for circuits with single-phase variable frequency drives and appliances that generate high-frequency residual currents e.g. modern washing machines and air conditioning units. Type F RCD capable of detecting AC, pulsating DC, and composite fault currents with high frequencies.

25A current rating ensures this RCD is perfectly suited for controlling and protecting circuits with moderate to high loads.

The 30mA trip sensitivity is the standard for life protection, ensuring a high level of safety for people from electric shock.

Specialist Type F RCD providing enhanced protection by detecting AC, pulsating DC, and high-frequency composite fault currents up to 1kHz.

Essential for ensuring safety in installations with variable speed drives that may produce complex fault currents.

Double-pole switching, ensuring both the live and neutral conductors are disconnected simultaneously when a fault is detected.

2 Module (36mm) design allows it to be neatly integrated into a standard consumer unit, saving valuable space.

Quick and secure mounting on a standard 35mm DIN rail, ensuring a hassle-free and professional installation.

Compliant with BS EN 61008-1.

Fusebox RTF250302 Features

• Fusebox RTF250302 2 module 25A 30mA DP Type F RCD
• 25A rated current – Suitable for protecting small to medium load circuits
• 30mA sensitivity – Provides essential earth leakage protection to minimise shock risks
• Type F protection – Detects AC, pulsating DC, and high-frequency residual currents ideal for modern appliances with frequency-controlled motors
• Ideal for protecting washing machines, heat pumps, air conditioning, and variable speed drive equipment
• Double Pole isolation – Safely disconnects both live and neutral conductors
• DIN Rail mounted – Quick and straightforward installation
• Manufactured to the highest standards for long-lasting performance
• Regulation compliant – Meets UK and international safety standards
