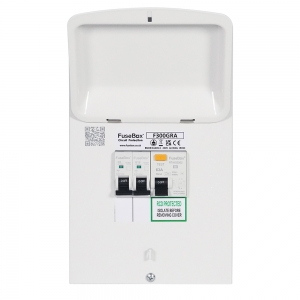

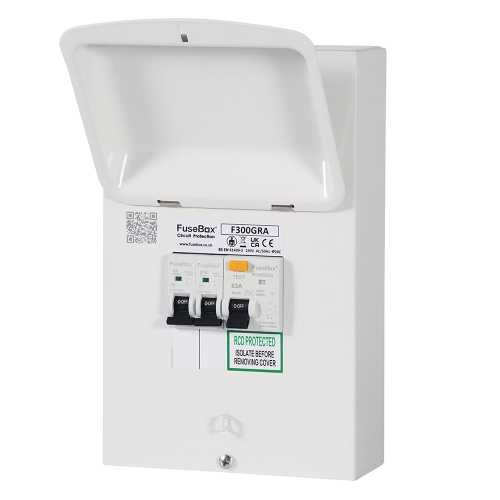

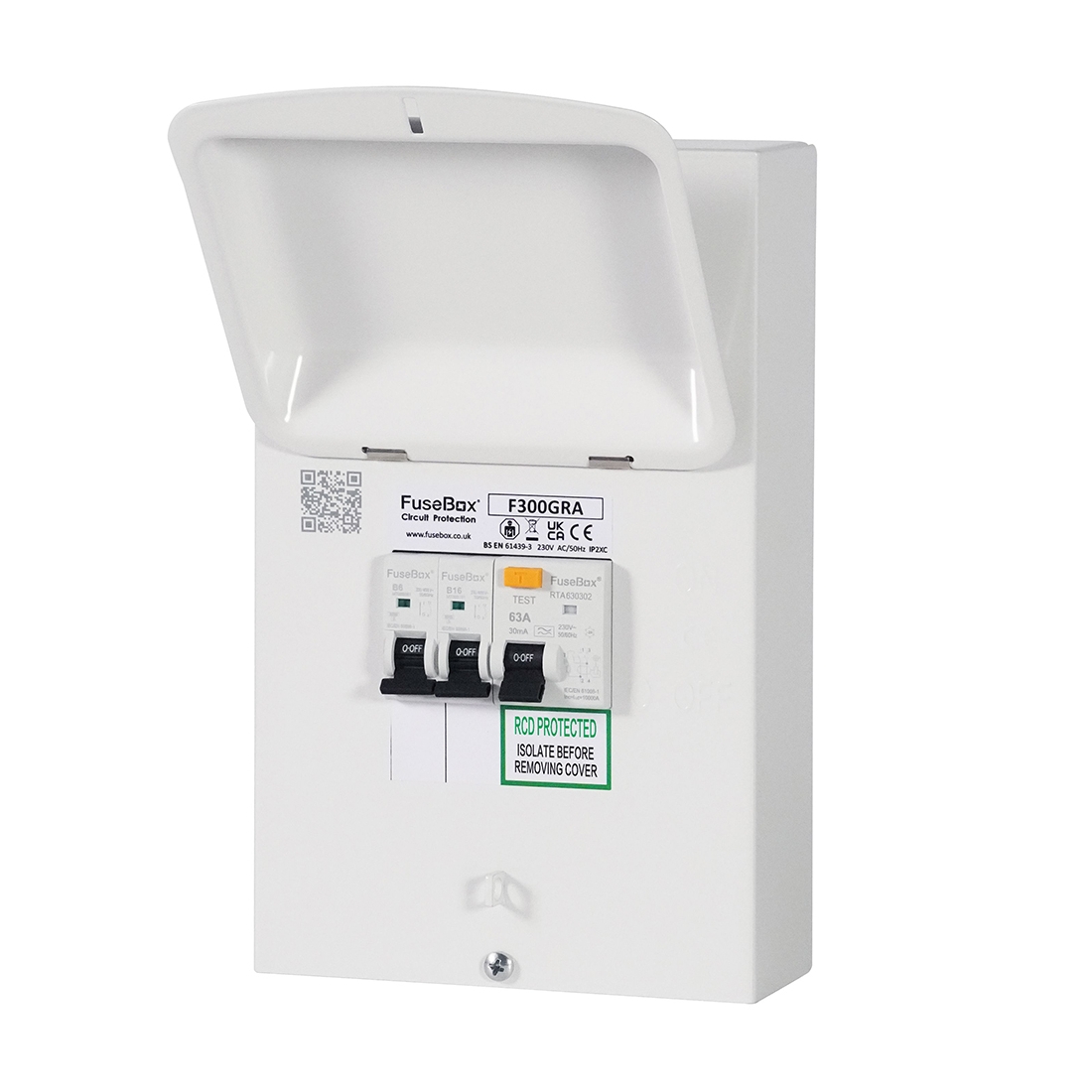

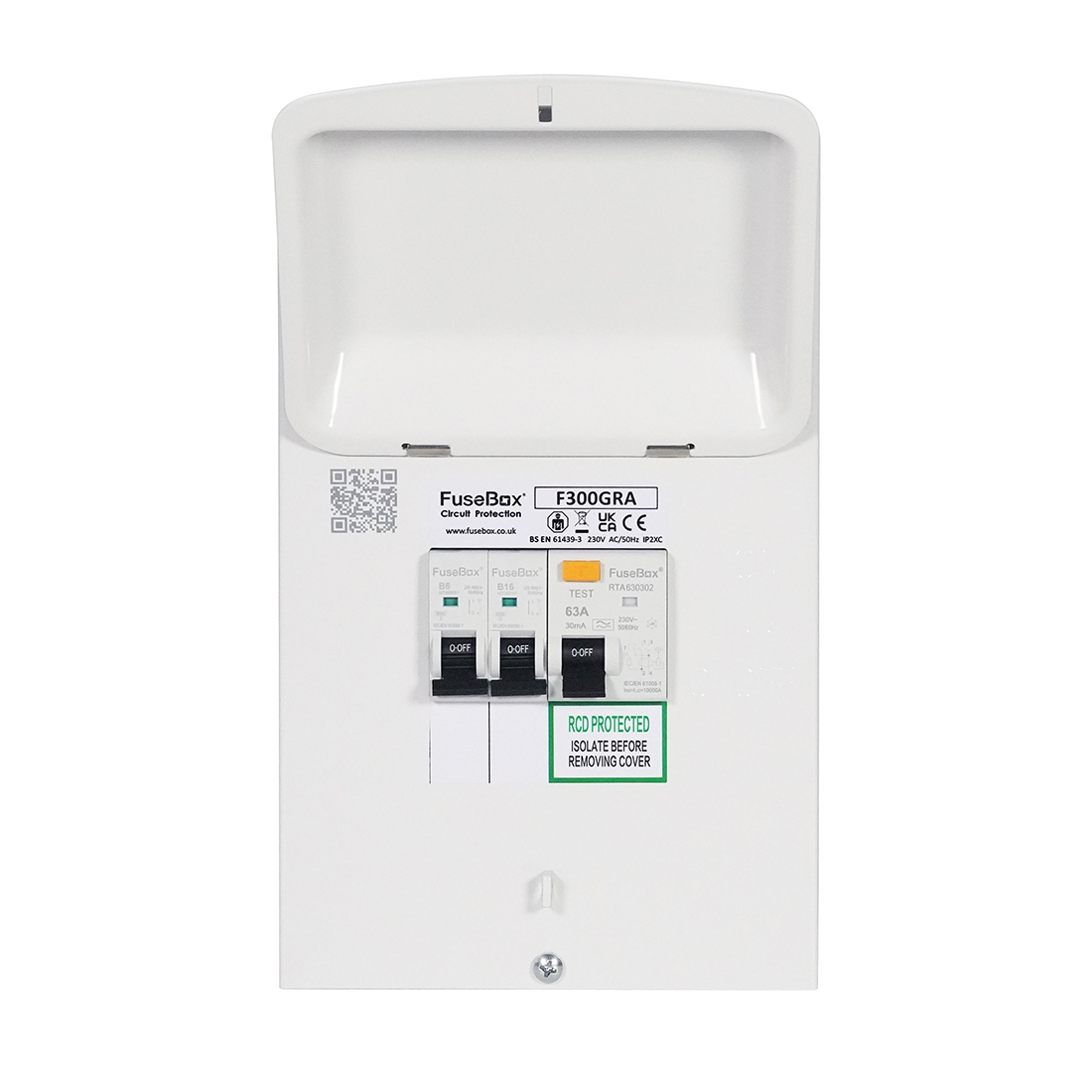

Fusebox F300GRA F3 Series White Pre-Populated Garage Consumer Unit With 63A 30mA Type A RCD & 6A + 16A Type B MCBs
The Fusebox F300GRA Pre-Populated 2 Way Garage Consumer Unit has a 63A RCD Isolator & Dual MCBs which is part of the F3 Series from leading manufacturer FuseBox. With reinforced grommet strip for improved durability and cable protection.
Order code: F300GRA
Manufacturer: Fusebox
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Fusebox F300GRA Description
The F300GRA is part of the F3 Series of consumer units which features the next step in FuseBox innovation.
The Fusebox F300GRA is a white metal pre-populated 2 way garage consumer unit with 63A 30mA RCD isolator and 1x6A + 1x16A MCBs
An upgraded reinforced grommet strip is included along with busbar and identification label pack.
Installation is made simple with captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
The modern curved design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.
Fusebox F300GRA Features
- Pre-populated garage consumer unit
- 63A 30mA RCD Isolator
- Supplied with 2 x 6kA SP Type B MCBs (1x6A + 1x16A)
- Upgraded reinforced grommet strip included
- 18th Edition and Amendment 3 compliant
- 32mm tails clamp included
- Earth and neutral terminal bars at the top
- Removable and raised DIN rail
- Round knock-outs on all faces
- Identification label pack
- Captive front cover screws
- Updated model replacing F100GRA
Dimensions (mm): W 156 x H 260 x D 94
