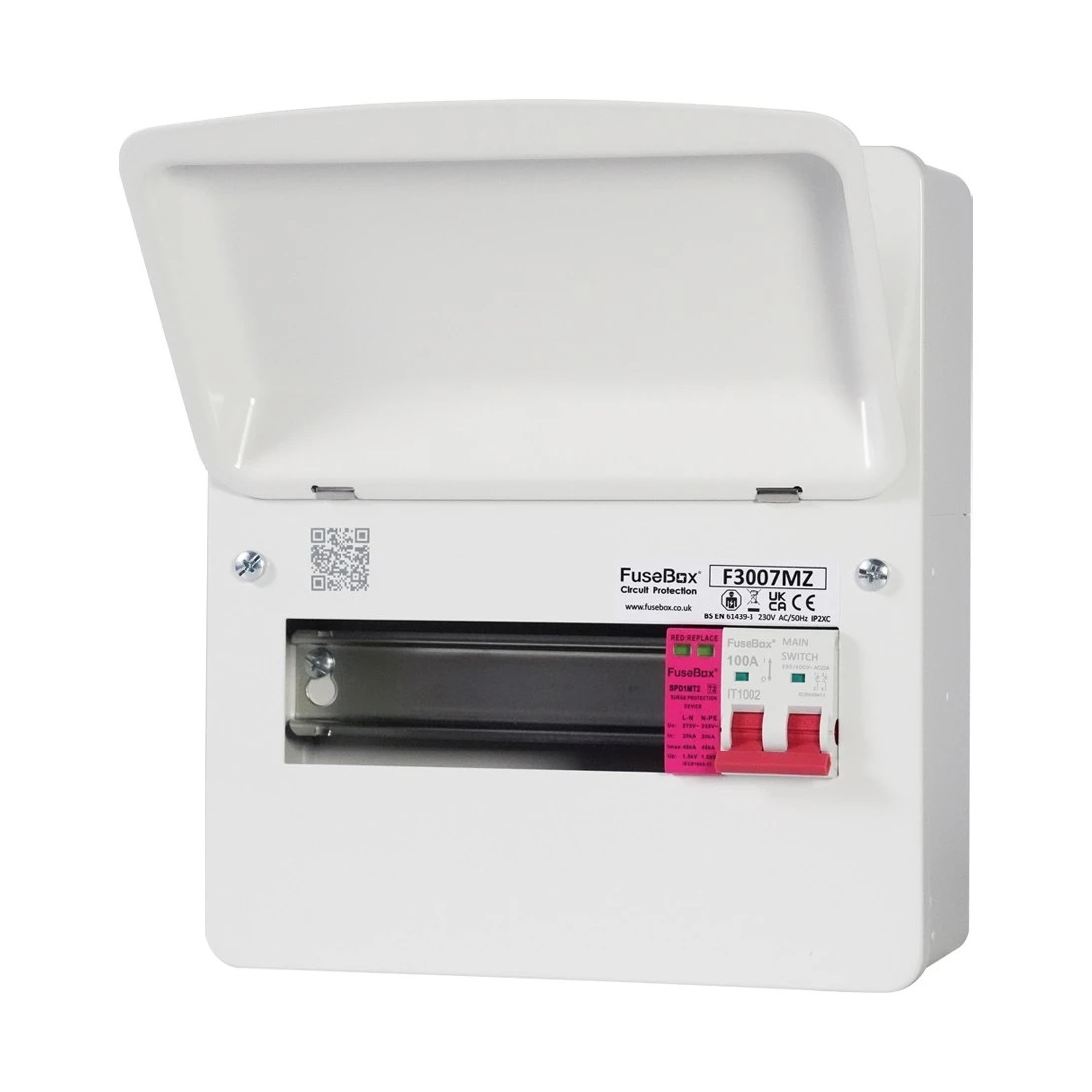

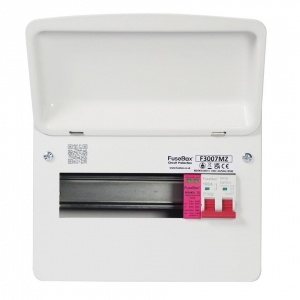

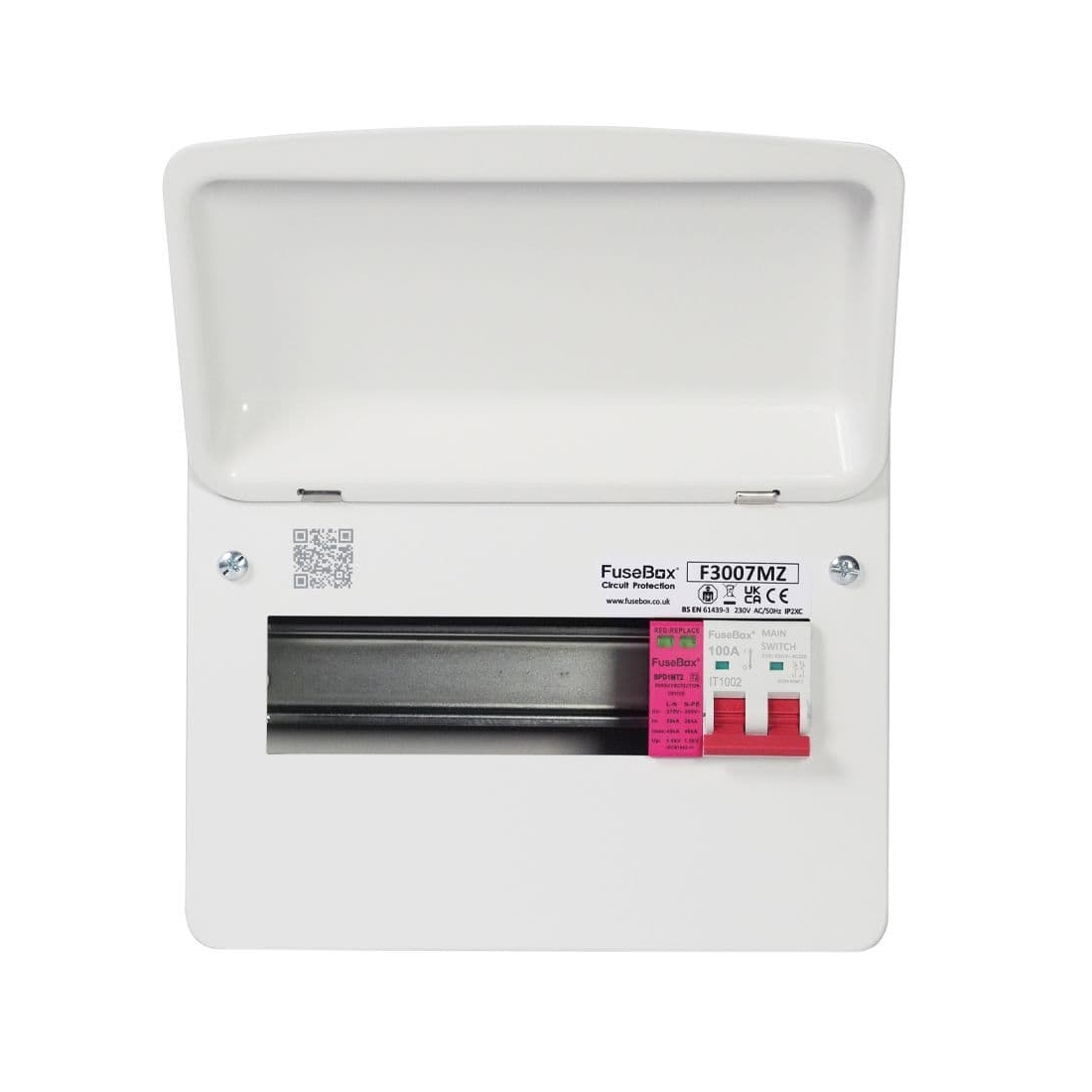

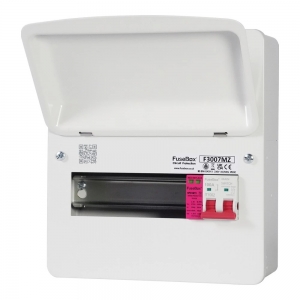

Fusebox F3007MZ F3 Series White 7 Way 100A Surge Protected Switch Isolator Consumer Unit

Fusebox F3007MZ Description

The F3007MZ is part of the F3 Series of consumer units which features the latest technology in Surge Protection Devices (SPDs). The single-module Type 2 Surge Protection Device SP1MT2 connects directly to the busbar without requiring an additional miniature circuit breaker. This not only makes the installation process easier, it also provides an extra useable way in the consumer unit.
The F3 Series of T2 surge protection consumer units have ample space internally for installing both reduced height and standard height RCBOs.
An upgraded reinforced grommet strip is included along with busbar and identification label pack.
Installation is made simple with captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
The modern curved design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.

Fusebox F3007MZ Features

• 7 way main switch SPD consumer unit
• 100A main switch isolator
• Factory installed single module, direct-to-busbar T2 SPD (SP1MT2)
• No MCB required for the upgraded SPD. This allows for an additional useable way
• Upgraded reinforced grommet strip included
• 18th Edition and Amendment 3 compliant
• 32mm tails clamp included

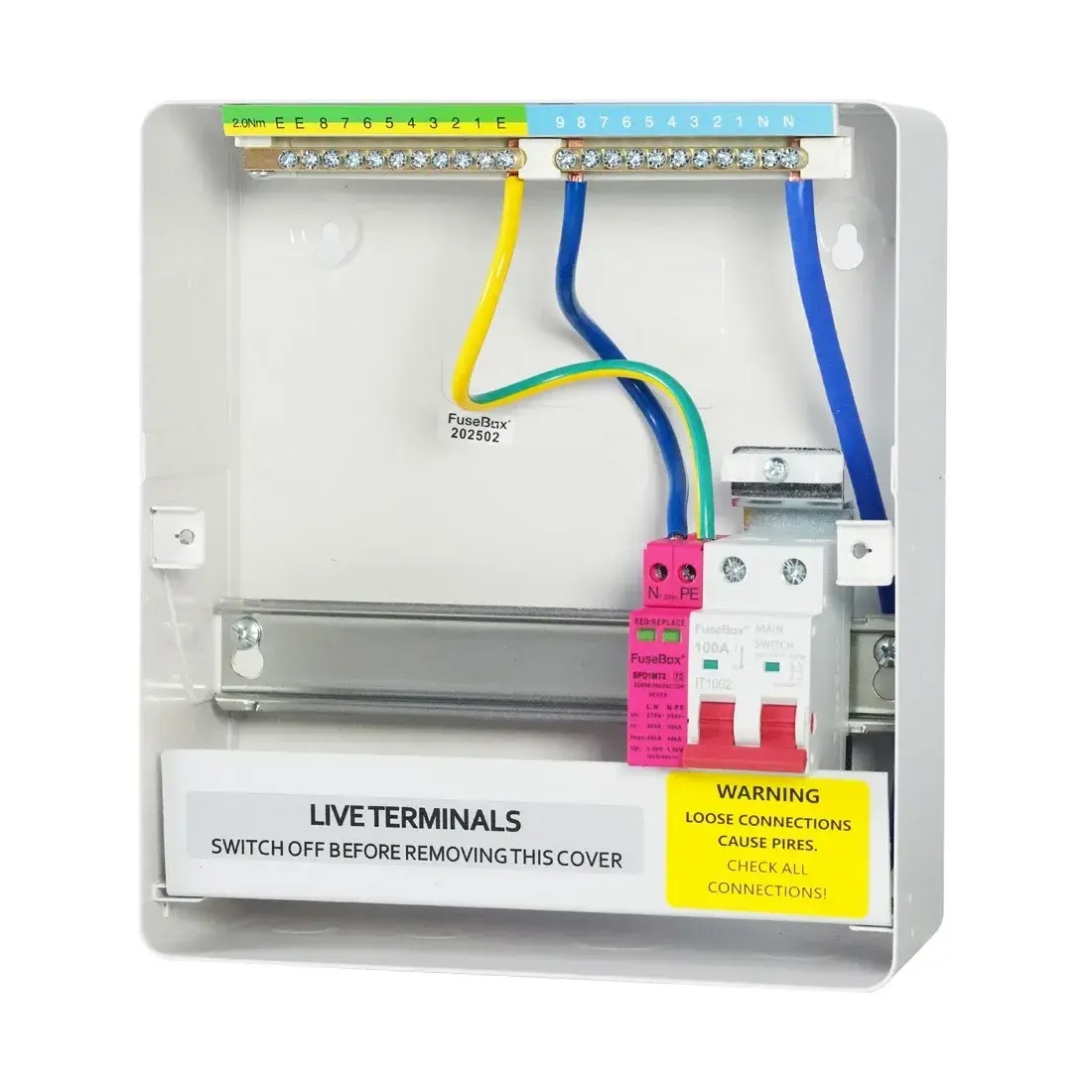

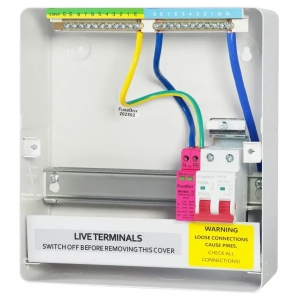

• Earth and neutral terminal bars at the top
• Removable and raised DIN rail
• Round knock-outs on all faces
• Identification label pack
• Captive front cover screws
• Updated model replacing F2006MX

Dimensions (mm): W 234 x H 259 x D 113
