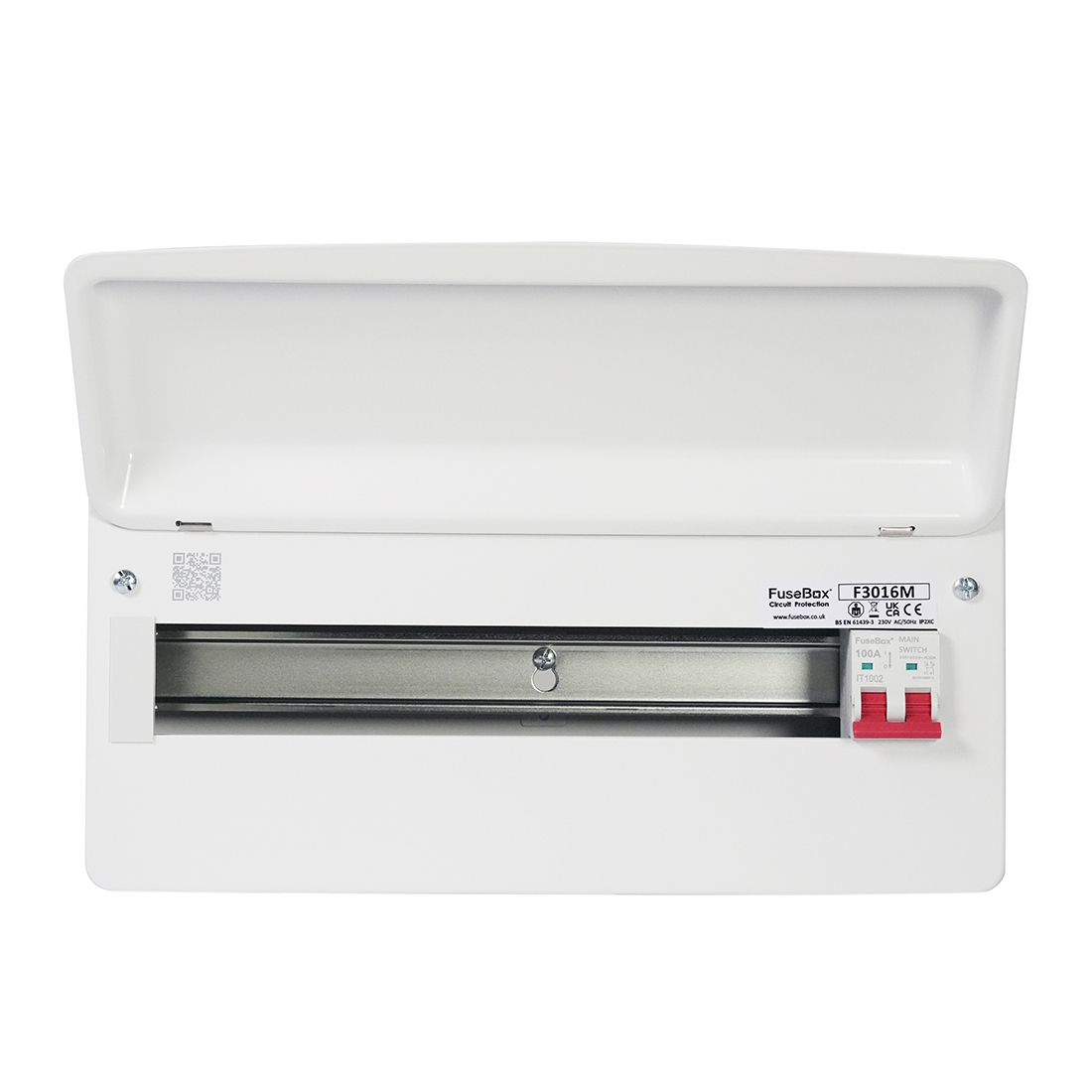

Fusebox F3016M F3 Series White 16 Way 100A Switch Isolator Consumer Unit

Fusebox F3016M Description

The F3016M is part of the F3 Series of consumer units which features the next step in FuseBox innovation.
The F3 Series of switch isolator consumer units have ample space internally for installing both reduced height and standard height RCBOs and MCBs.
An upgraded reinforced grommet strip is included along with busbar and identification label pack.
Installation is made simple with captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
The modern curved design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.

Fusebox F3016M Features

16 way main switch consumer unit
100A main switch isolator
Upgraded reinforced grommet strip included
18th Edition and Amendment 3 compliant
32mm tails clamp included
Earth and neutral terminal bars at the top
Removable and raised DIN rail
Round knock-outs on all faces
Identification label pack
Captive front cover screws
Updated model replacing F2015M

Dimensions (mm): W 378 x H 255 x D 113
