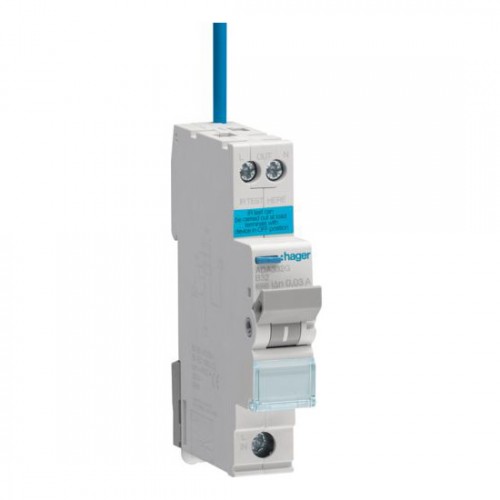

Hager ADA332G Single Pole B Curve Type A Reduced Height RCBO For Residential Installations 32A 6kA 30mA

Hager ADA332G 1 Module Single Pole B Curve Type A Reduced Height RCBO For Residential Installations 32A 6kA 30mA

The Hager ADA332G 32a 30ma Single Pole Type A RCBO is a DIN mountable 32 amp type A RCBO for use with Hager consumer units. The Hager ADA332G RCBO combines the overcurrent functions of an MCB with the earth fault functions of an RCD in one compact package.

Order code: ADA332G
Manufacturer: Hager
GTIN: 3250611012993

£ 14.39 incl. VAT
£ 11.99 excl. VAT

Trade Price: £ 90.02
You SAVE
£ 78.03 or 87%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Hager ADA332G Description

The Hager ADA332G is a 1 module 32A 6kA 30mA single pole type A reduced height RCBO with B curve tripping characteristics for din rail mounting in the Hager Design ranges of domestic consumer units.

It combines the overcurrent functions of an MCB with the earth fault functions of an RCD in a single circuit protection device occupying a single outgoing way on the din rail.

This compact 18th edition compliant protection device provides increased wiring space during installation. Supplied with 300mm flying neutral lead.

The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. Perhaps more significantly, the removal of the functional earth also removes the challenge of connecting dissimilar conductors in the same terminal in a secure manner.

The bottom din rail clip allows removal from consumer unit with no requirement to remove busbar

Hager has designed these RCBO's to retrofit your current domestic consumer units, making them ideal for existing and new build installations. Benefits from faster and easier installation and testing.

Hager ADA332G Features

  • Hager ADA332G 1 module single pole + solid neutral RCBO
  • Combines overcurrent functions of an MCB with the earth fault functions of an RCD
  • Protects against earth leakage and against overloads and short circuits
  • Reduced height provides increased wiring space during installation
  • IP rated: IP20
  • Residual current type: Type A
  • Rating: 32A 6kA 30mA
  • Tripping Curve: B curve
  • Rated operational voltage: 230/240V
  • Positive Indication for On or Off
  • Flying neutral lead: 300mm
  • Removal of functional earth allows a faster neater installation
  • Removal of functional earth makes testing easier and quicker
  • Din rail mounting
  • Bottom din rail clip allows removal with no requirement to remove busbar
  • Cable Capacity: 16mm² - 25mm²
  • Tightening torque: 2.1Nm
  • Complies with the current 18th Edition Regulations
  • Standards: BS EN 61009-1, BS IEC 1009-2-2, EN 61009-1
  • Dimensions: Height: 83mm | Width: 17.5mm | Depth: 75mm | Flying neutral lead: 300mm
