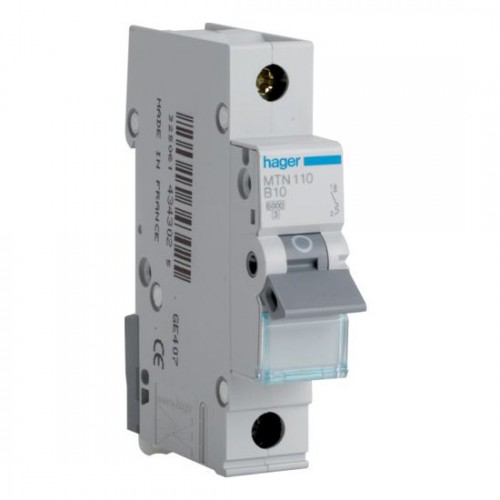

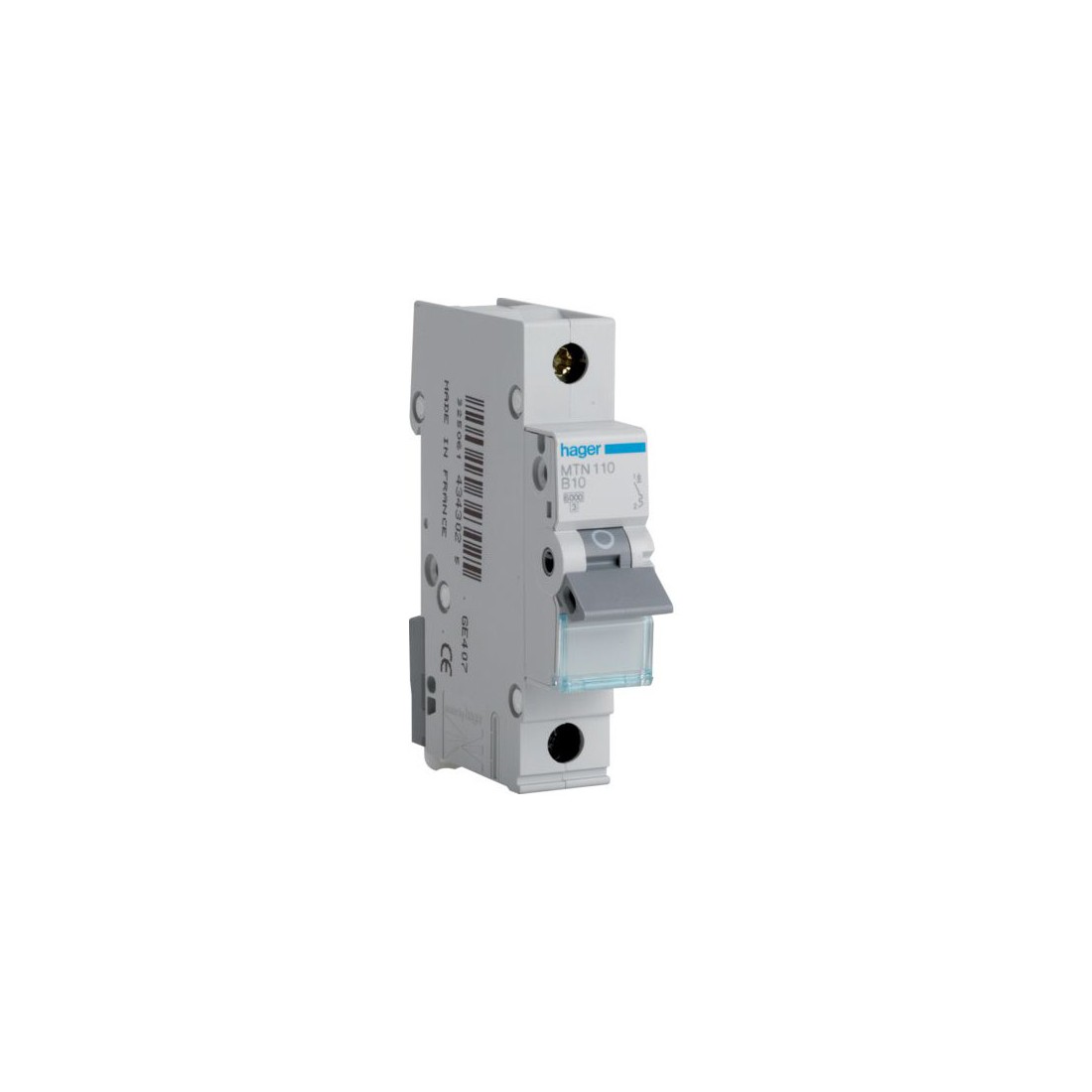

Hager MTN110 1 Module Single Pole Type B Miniature Circuit Breaker MCB For Residential Installations 10A 6kA

Hager MTN110 Description

The Hager MTN110 is a 1 module 10A 6kA single pole DIN rail mounting miniature circuit breaker MCB with type B tripping characteristics suitable for installation in the Design range of residential consumer units.

It provides protection and control against overloads and short circuits by interrupting the power supply, preventing damage to the domestic installations. It will trip between 3 and 5 time full load current.

It also has a positive indicator which shows whether it is ON or OFF. There is also a flap under which you can write what the MCB is responsible for.

The operating dolly on the device may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.

The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.

Hager MTN110 Features

• Hager MTN110 single pole miniature circuit breaker
• 1 module required on DIN rail
• DIN rail mounting
• Rating: 10A 6kA
• Rated Voltage : 230 / 400 Volts
• Type B tripping characteristics
• IP20 rated
• Protection and control against overloads and short circuits
• Interrupts the power supply, preventing damage to the domestic installations
• Dolly switch design with on/off indicator
• Can be locked in either the ON or OFF position
• Suitable for the Hager Vision range of domestic consumer units
• Connection capacity : Rigid conductor 25mm² : Flexible conductor 16mm²
• Calibration temperature 30°C
• Tightening torque: 2,8Nm
• Standards: EN 60898-1
• Dimensions: Height: 83mm | Width: Width: 17.5mm | Depth: 75mm
