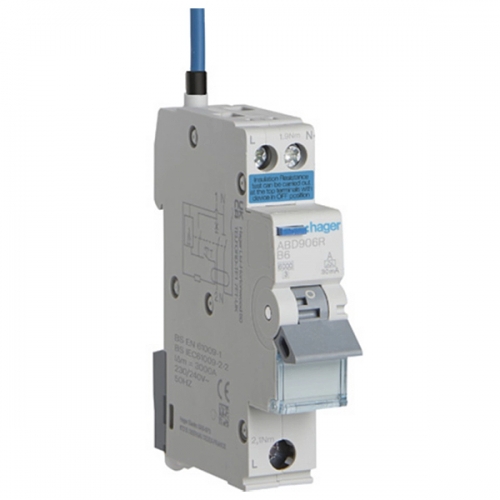

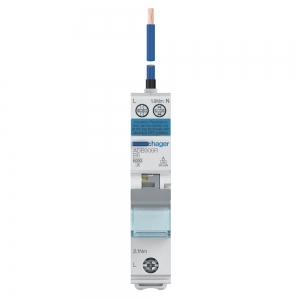

Hager ADB910R 10A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO For Residential Installations

Hager ABC910R 10A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO For Residential Installations

The Hager ADB910R is a compact 10A Type A Bi-Directional RCBO that combines overload, short-circuit and residual current protection in a single module. Designed for modern residential installations, it delivers reliable circuit protection while maximising space within consumer units.

Order code: ADB910R
Manufacturer: Hager
GTIN: 3250610087589

£ 16.43 incl. VAT
£ 13.69 excl. VAT

Trade Price: £ 32.25
You SAVE
£ 18.56 or 58%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Hager ADB910R Description

The Hager ADB910R 10A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO is a high-performance protective device engineered for domestic consumer units and modern electrical installations. Combining the functionality of an MCB and RCD into one compact unit, it provides comprehensive protection against overloads, short circuits and earth leakage faults while helping installers meet the latest BS 7671 wiring regulations.

Featuring a B Curve tripping characteristic, the ADB910R is ideally suited to lighting circuits and other standard residential applications where moderate inrush currents are present. Its Type A residual current protection detects both AC and pulsating DC fault currents, making it suitable for modern appliances, electronic equipment and energy-efficient technologies commonly found in today's homes.

The bi-directional design allows power supply connection from either direction, offering greater installation flexibility and making the device particularly suitable for renewable energy systems and micro-generation applications. Its compact single-module 1P+N format helps maximise available space within consumer units, while the switched neutral design provides enhanced isolation and safety.

Manufactured to Hager's renowned quality standards, the ADB910R offers dependable long-term performance, simplified installation and reliable protection for residential electrical systems.

Hager ADB910R Features

  • Rated current: 10A
  • Breaking capacity: 6kA
  • Residual current sensitivity: 30mA
  • Type A residual current protection
  • B Curve tripping characteristic
  • 1P+N (Single Pole + Switched Neutral) configuration
  • Compact single-module design
  • Bi-directional operation for flexible installation
  • Suitable for domestic consumer units and distribution boards
  • Ideal for renewable energy and micro-generation systems
  • Extended 500mm neutral fly lead
  • DIN rail mounting
  • Rated operational voltage: 230V AC
  • Maximum operating voltage: 264V
  • Rated insulation voltage (Ui): 440V
  • Rated impulse withstand voltage (Uimp): 4kV
  • Frequency: 50Hz
  • IP20 rated
  • Terminal capacity:
  • Solid conductors: 1–16mm²
  • Flexible conductors: 1–10mm²
  • Dimensions: Height: 85mm, Width: 17.7mm, Depth: 70mm
  • Operating temperature range: -25°C to +70°C
  • Storage temperature range: -25°C to +80°C
  • Electrical endurance: 10,000 operations
  • Mechanical endurance: 20,000 operations
  • Manufactured to BS EN 61009-1
  • Supports insulation resistance testing at 500V DC without disconnecting conductors when switched off
  • RoHS compliant
