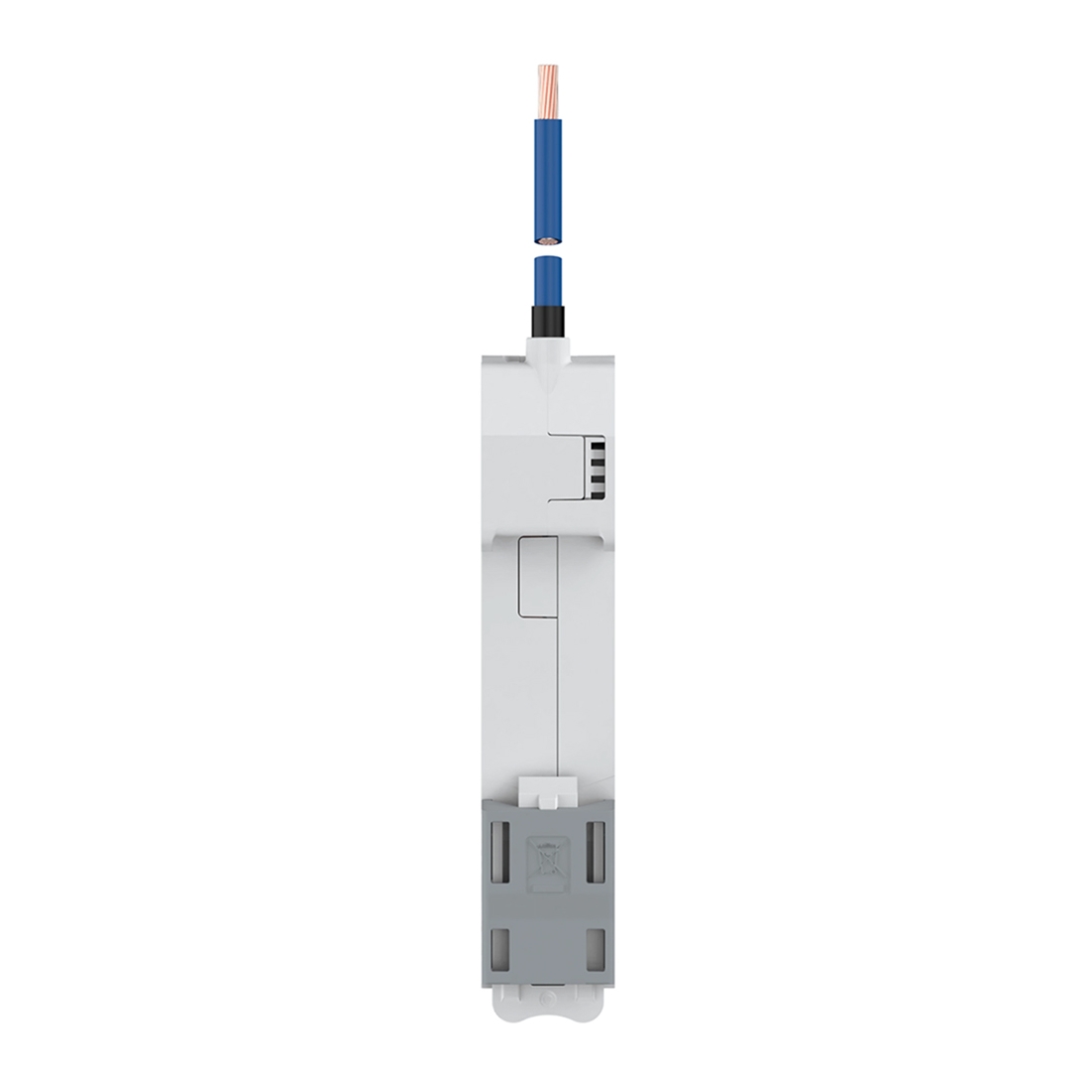

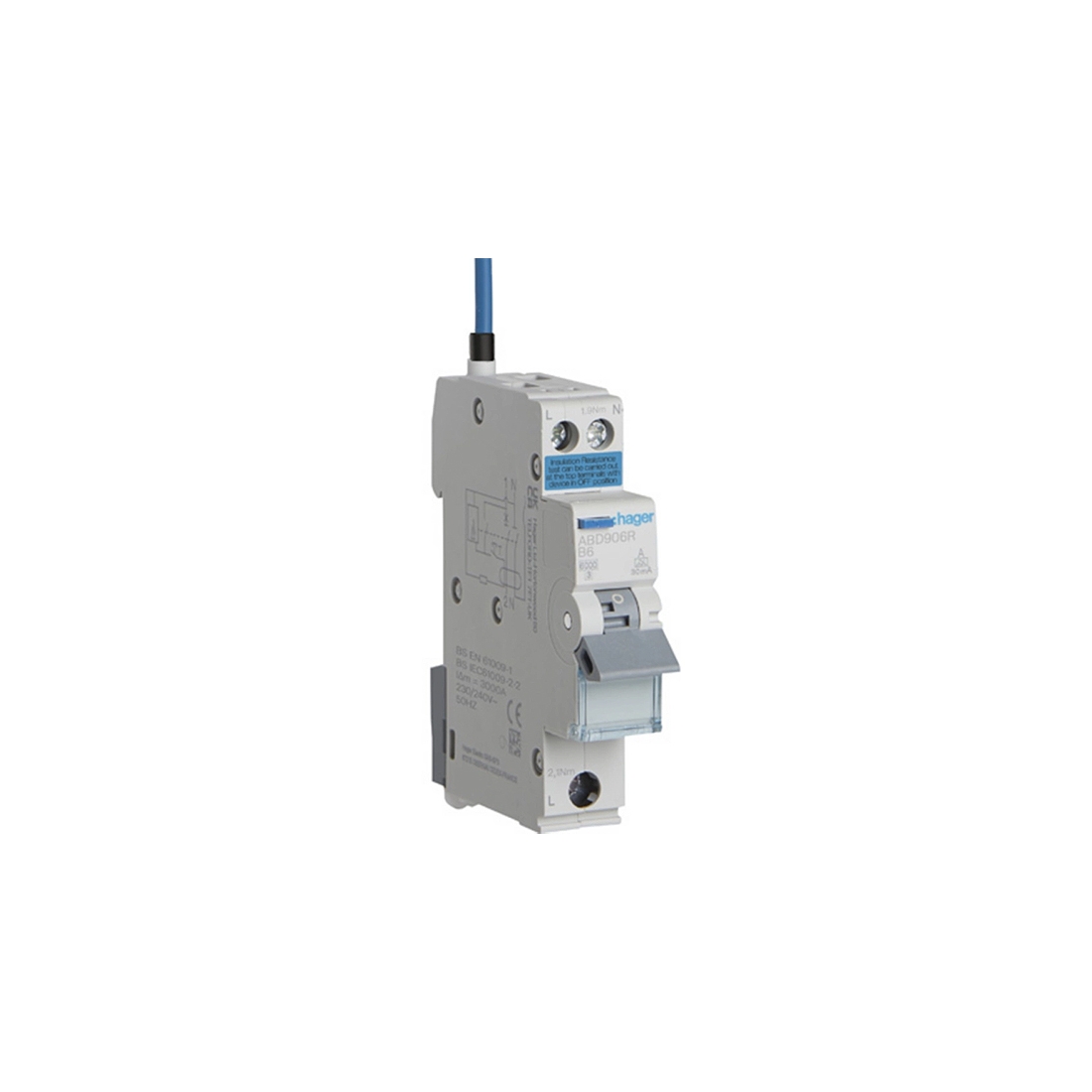

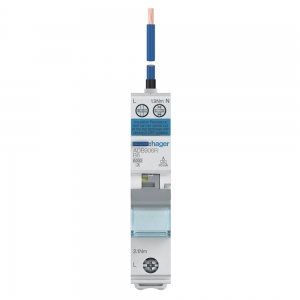

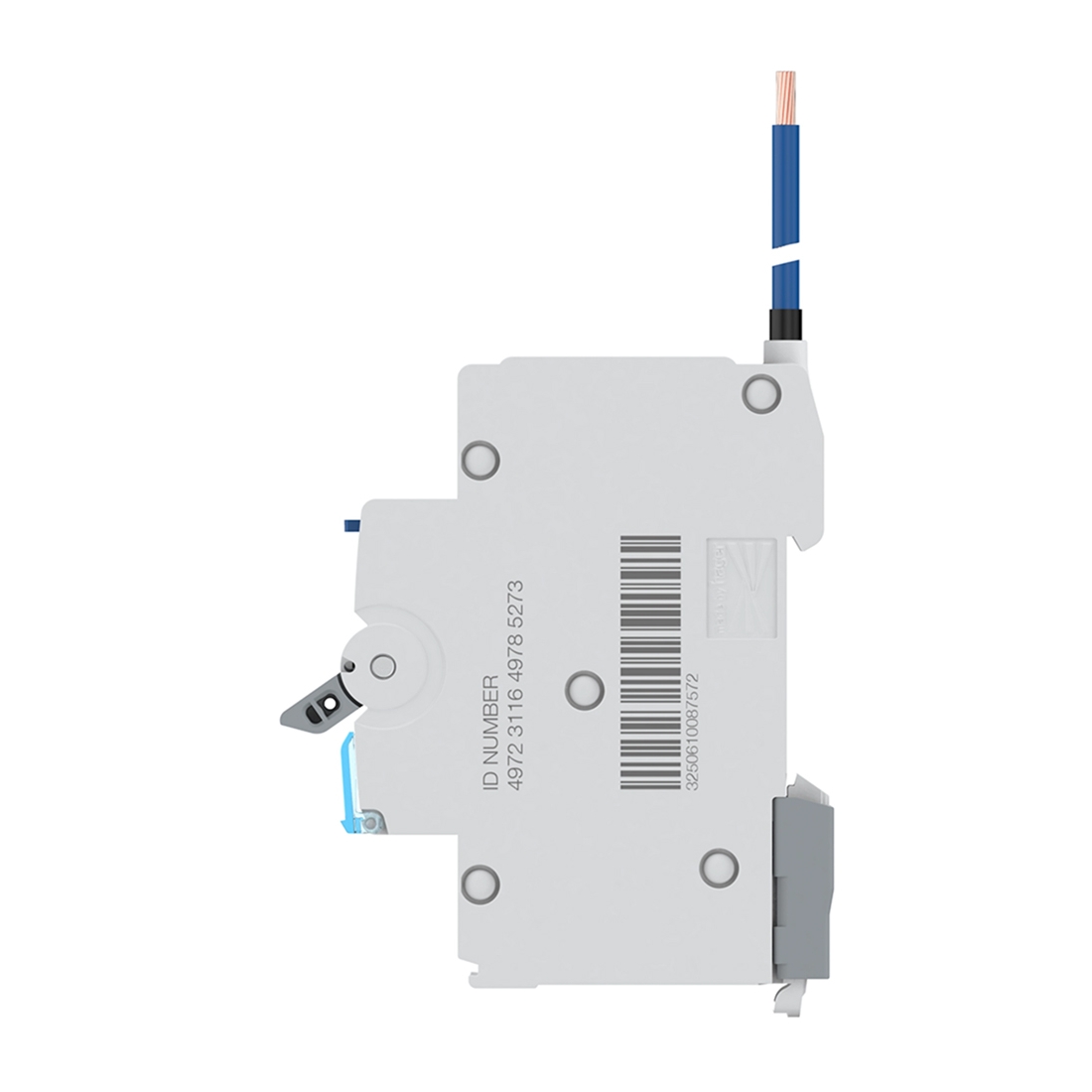

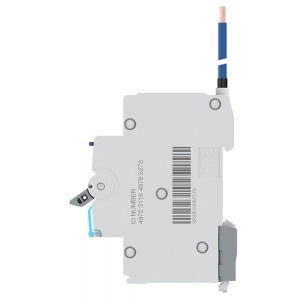

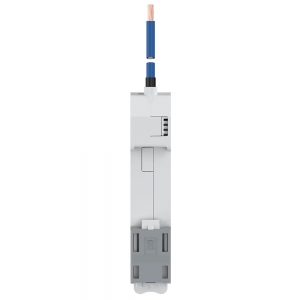

Hager ADB916R 16A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO For Residential Installations

Hager ADB916R Description

The Hager ADB916R 16A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO is a high-quality protective device designed to safeguard residential electrical circuits against overloads, short circuits and earth leakage faults. Combining the functionality of an MCB and RCD into one compact unit, it simplifies installation while delivering comprehensive circuit protection in accordance with current wiring regulations.

Part of Hager's advanced ADB bi-directional RCBO range, the ADB916R features a 16A current rating and B Curve tripping characteristic, making it ideal for lighting, socket outlet circuits and other general-purpose domestic applications. The integrated 30mA Type A residual current protection detects both alternating current (AC) and pulsating direct current (DC) fault currents, providing enhanced safety for modern homes that utilise electronic appliances and energy-efficient equipment.

Its bi-directional design allows power to be supplied from either the top or bottom terminals, offering greater installation flexibility and making it particularly suitable for renewable energy and micro-generation systems. The compact single-module 1P+N construction helps maximise space within consumer units, while the switched neutral pole provides additional isolation and safety during maintenance and testing.

Manufactured to Hager's exacting standards, the ADB916R delivers dependable performance, easy installation and long-term reliability, making it an excellent choice for electricians, contractors and housebuilders seeking compliant and future-ready circuit protection.

Hager ADB916R Features

• Rated current: 16A
• Breaking capacity: 6kA
• Residual current sensitivity: 30mA
• Type A residual current protection
• Detects AC and pulsating DC earth leakage currents
• B Curve tripping characteristic
• 1P+N (Single Pole + Switched Neutral) configuration
• Compact single-module design
• Bi-directional supply capability for flexible installation
• Suitable for residential consumer units and distribution boards
• Ideal for standard domestic circuits, including socket outlets and lighting
• Compatible with renewable energy and micro-generation applications
• Extended 500mm neutral fly lead
• DIN rail mounted
• Rated operational voltage: 230V AC
• Rated insulation voltage (Ui): 440V
• Rated impulse withstand voltage (Uimp): 4kV
• Frequency: 50Hz
• IP20 rated
• Terminal capacity:
• Solid conductors: 1–16mm²
• Flexible conductors: 1–10mm²
• Dimensions: Height: 85mm, Width: 17.7mm, Depth: 70mm
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -25°C to +80°C
• Electrical endurance: 10,000 operations
• Mechanical endurance: 20,000 operations
• Complies with BS EN 61009-1
• Suitable for insulation resistance testing without disconnecting conductors when switched off
• RoHS compliant
