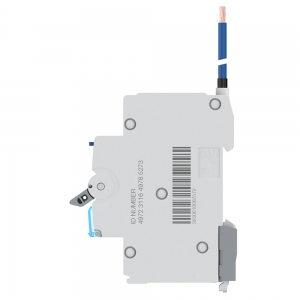

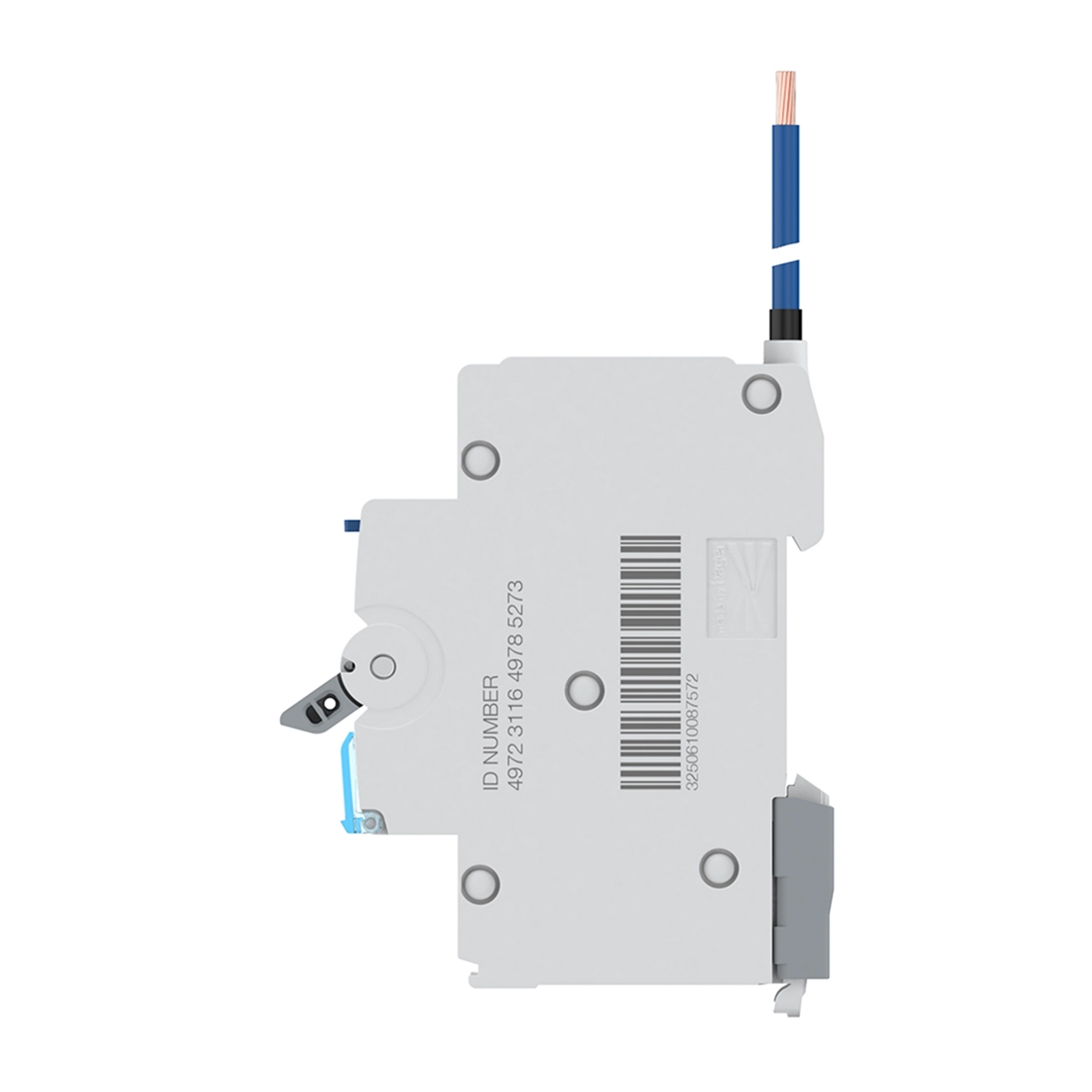

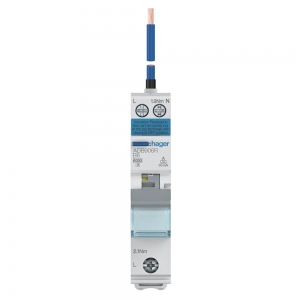

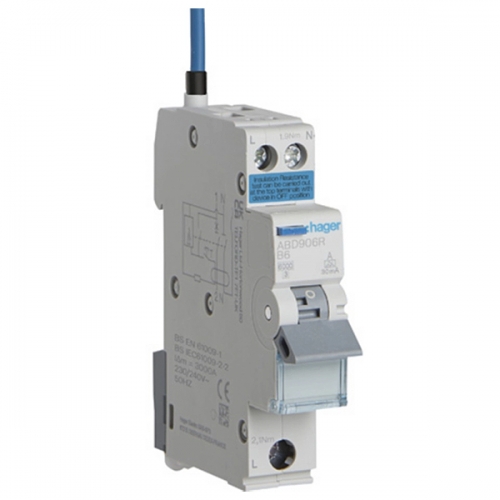

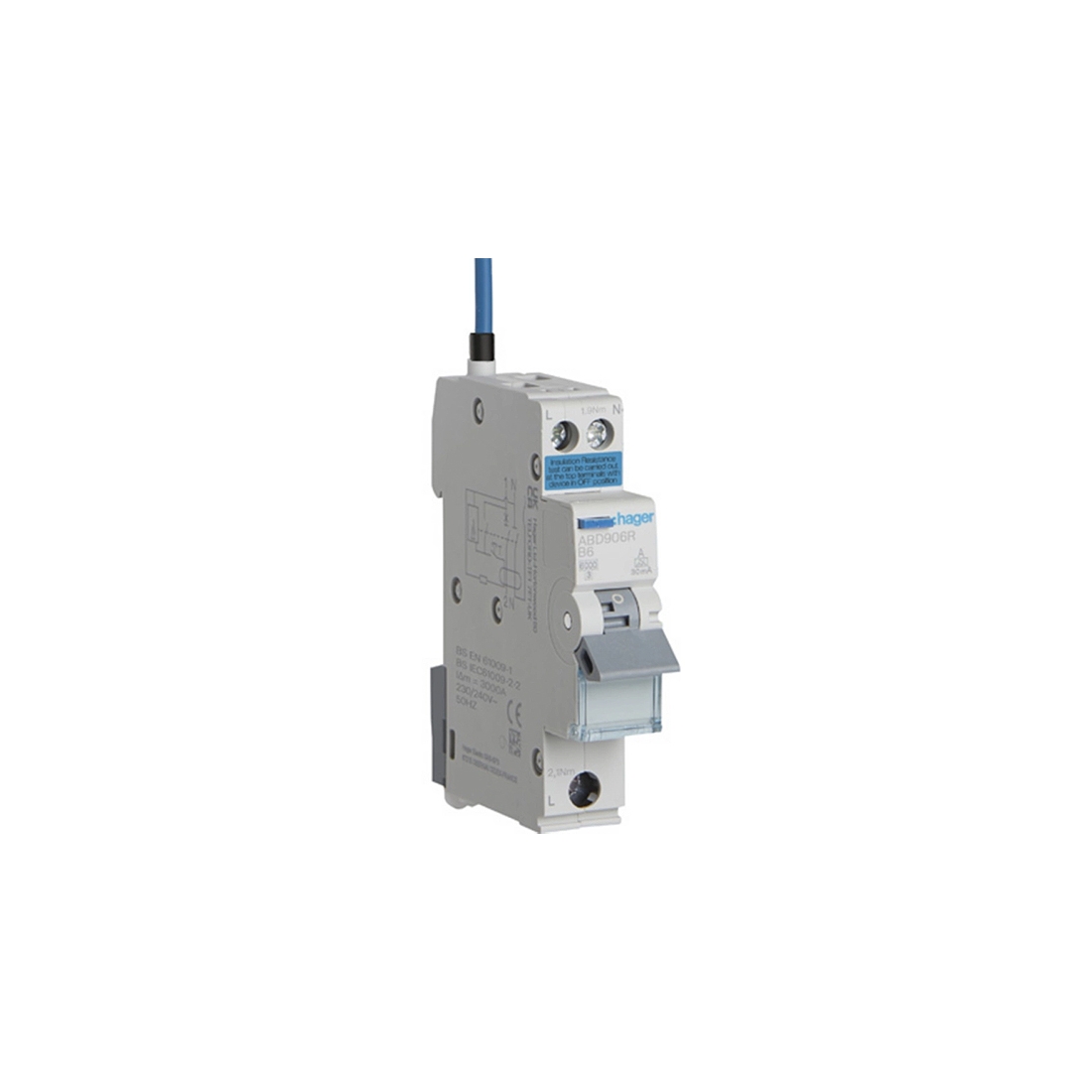

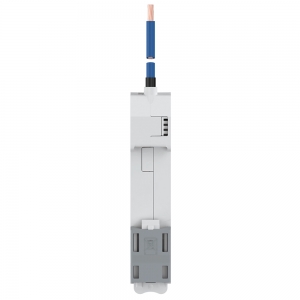

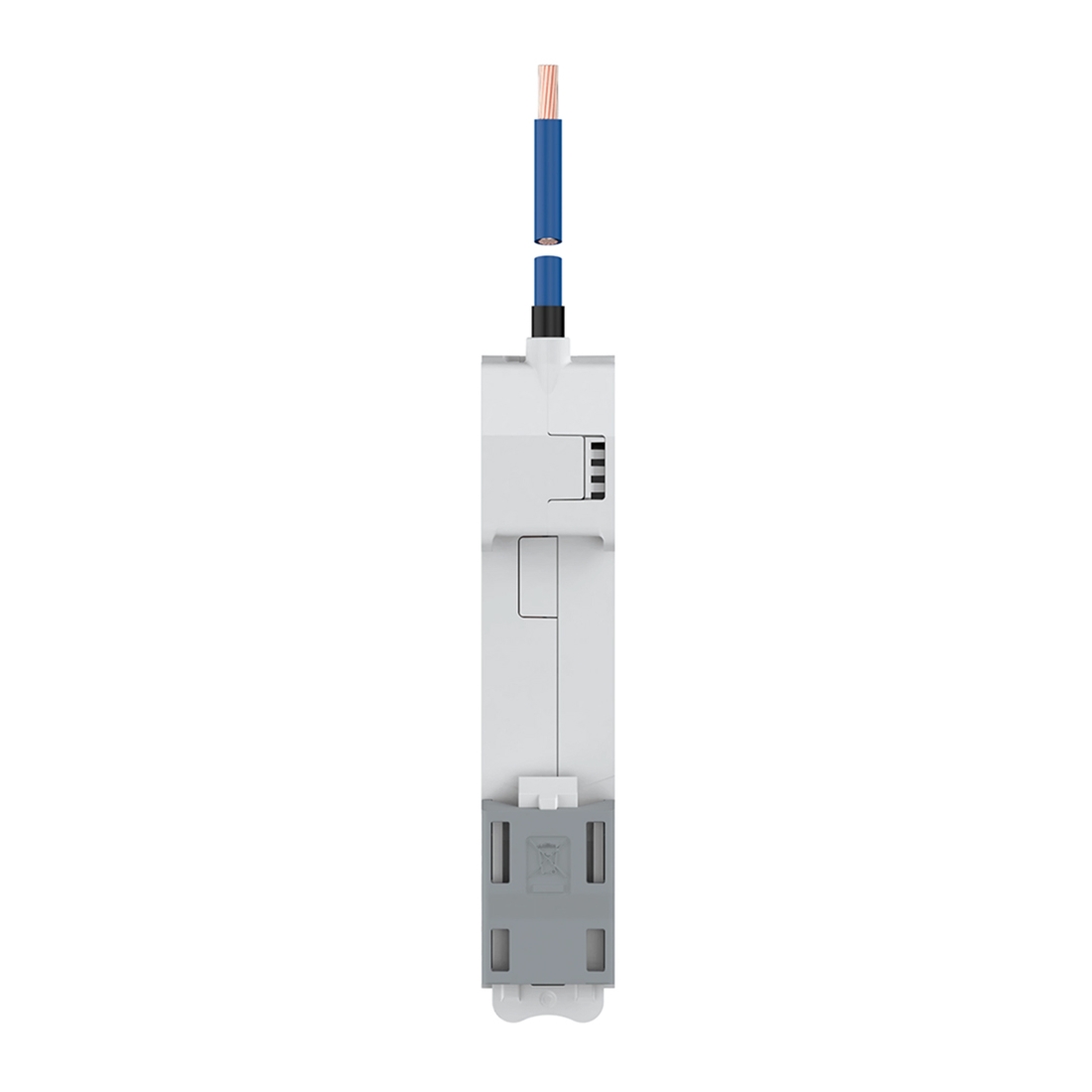

Hager ADB932R 32A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO For Residential Installations

Hager ADB932R Description

The Hager ADB932R 32A 6kA 30mA 1P+N B Curve Type A Bi-Directional RCBO provides comprehensive protection for residential electrical circuits by integrating the functions of an MCB and RCD into one compact device. Designed to meet the requirements of modern consumer units, it safeguards against overloads, short circuits and earth leakage faults while supporting compliance with the latest BS 7671 Wiring Regulations.

Part of Hager’s innovative ADB bi-directional RCBO range, the ADB932R features a 32A current rating and B Curve tripping characteristic, making it ideal for socket outlet circuits, radial circuits, dedicated appliance supplies and other general-purpose domestic applications. The integrated 30mA Type A residual current protection detects both AC and pulsating DC fault currents, providing enhanced protection for modern homes where electronic devices, smart technologies and energy-efficient appliances are commonplace.

Its bi-directional functionality allows power to be connected from either the top or bottom terminals, offering greater flexibility during installation and making it particularly suitable for renewable energy systems, battery storage installations and micro-generation applications. The compact 1P+N single-module design maximises available space within consumer units, while the switched neutral pole improves isolation and enhances safety during maintenance and testing.

Manufactured to Hager’s renowned quality standards, the ADB932R delivers long-term reliability, straightforward installation and advanced circuit protection, making it an excellent choice for electricians, contractors and housebuilders working on residential projects.

Hager ADB932R Features

• Rated current: 32A
• Breaking capacity: 6kA
• Residual current sensitivity: 30mA
• Type A residual current protection
• Detects AC and pulsating DC earth leakage currents
• B Curve tripping characteristic
• 1P+N (Single Pole + Switched Neutral) configuration
• Compact single-module design
• Bi-directional supply capability for flexible installation
• Suitable for residential consumer units and distribution boards
• Ideal for socket outlet circuits, radial circuits and dedicated appliance supplies
• Compatible with renewable energy, battery storage and micro-generation systems
• Extended 500mm neutral fly lead
• DIN rail mounting
• Rated operational voltage: 230V AC
• Rated insulation voltage (Ui): 440V
• Rated impulse withstand voltage (Uimp): 4kV
• Frequency: 50Hz
• IP20 rated
• Terminal capacity:
• Solid conductors: 1–16mm²
• Flexible conductors: 1–10mm²
• Dimensions: Height: 85mm, Width: 17.7mm, Depth: 70mm
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -25°C to +80°C
• Electrical endurance: 10,000 operations
• Mechanical endurance: 20,000 operations
• Complies with BS EN 61009-1
• Suitable for insulation resistance testing without disconnecting conductors when switched off
• RoHS compliant
• Designed for use in Hager residential consumer units
