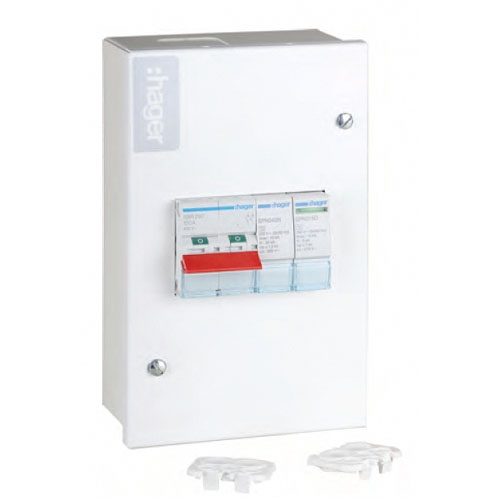

Hager VA4T2SDSPD Design Enclosed Type II Surge Protection With 100A Isolator Switch Height: 187mm | Width: 115mm | Depth: 87.5mm

Hager VA4T2SDSPD Description

Hager VA4T2SDSPD is an Type II surge protection enclosure supplied with a 100A double pole mains isolator switch designed to protect electronic equipment within an installation from the harmful effects of transient and switching over voltages.

The device should be installed next to the consumer unit or distribution board on an installation fed by meter tails. Two cable entry plates for 2 x 25mm² meter tails and 1 x 16mm² earthing conductor are supplied.

No extra space is required inside the consumer unit or distribution board making this unit ideal when retrofitting surge protection to an existing installation.

A convenient end of life indicator is also included to signal when the cartridge requires replacement. Simply remove the cartridge and replace with a new cartridge (SPD015D). The rest of the installation will remain unaffected.

Designed to comply with all elements of the BS 7671 regulations.

Hager VA4T2SDSPD Features

• Hager VA4T2SDSPD Type II surge protection enclosure
• Supplied with 100A DP mains isolator switch
• IP rating: IP2XC
• White steel enclosure
• Protects the installation against transient over voltages
• Ideal when retrofitting surge protection to an existing installation
• No space required inside existing consumer unit or distribution board
• End of life indicator on Line cartridge gives indication when replacement is required
• Voltage rating: 230V 50/60 Hz
• Max discharge (Imax) or impulse (Iimp): 15 kA
• Nominal discharge current (In): 5 kA
• Voltage continuous operating voltage Uc: 275V
• Connection Capacity: 35mm²
• Standards: IEC 61643-1: 1 kV, BS EN 61439-3
• Dimensions: Height: 187mm | Width: 115mm | Depth: 87.5mm
