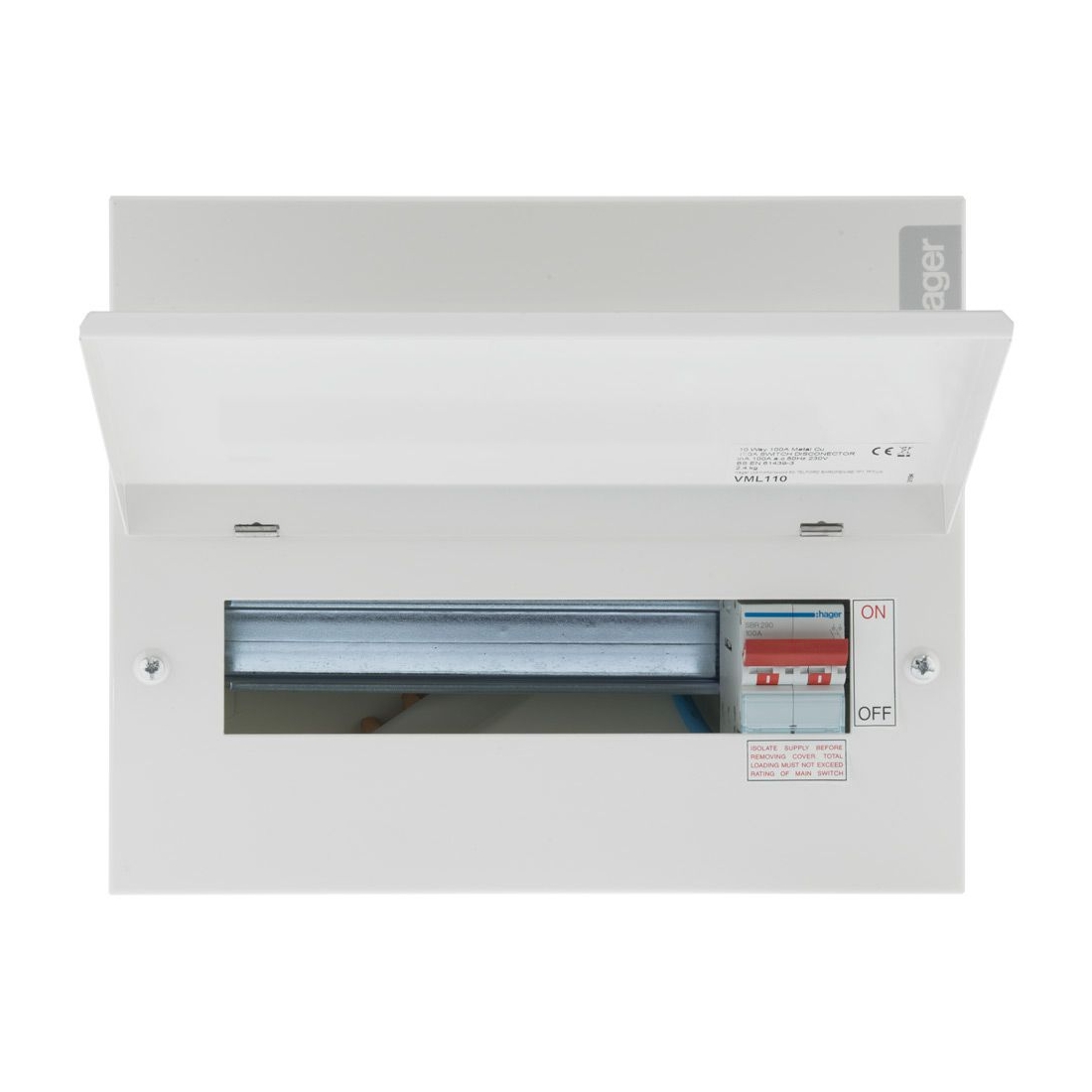

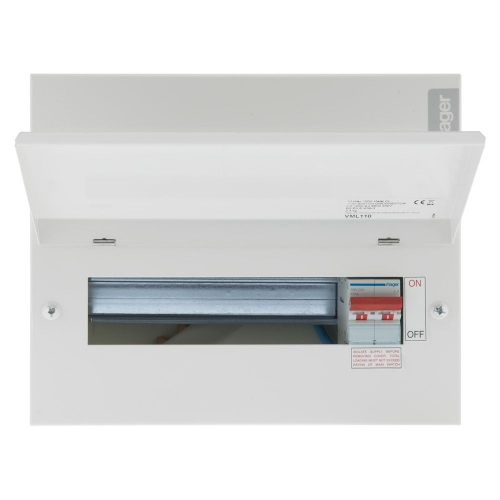

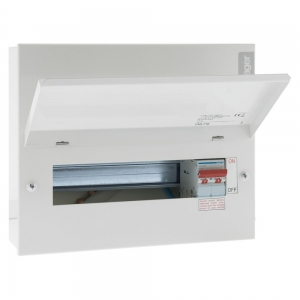

Hager VML110 Design 10 White Metal 18th Edition 10 Way Switch Isolator Consumer Unit With 100A Isolator Width: 299mm | Height: 246mm | Depth:100mm

Hager VML110 Description

The Hager Design 10 VML110 is a white metal 10 way consumer unit with 100A double pole mains switch isolator suitable for residential installations.

The VML110 can be populated with up to 10 RCBOs, offering excellent circuit separation and protection for each circuit from both fault and earth leakage without the need for an RCD.

Designed for functionality and simplicity it accepts the latest quick release MCB's and RCBO's, which can be removed with busbar still in place. Ample cable space is available even when RCBOs are fitted.

The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple. Multiple top, bottom and rear knockouts are available to ease installation and a full metal DIN rail ensure the devices sit square.

Supplied with a full complement of earth and neutral terminals along with marking labels, snap-able busbar and installations instructions.

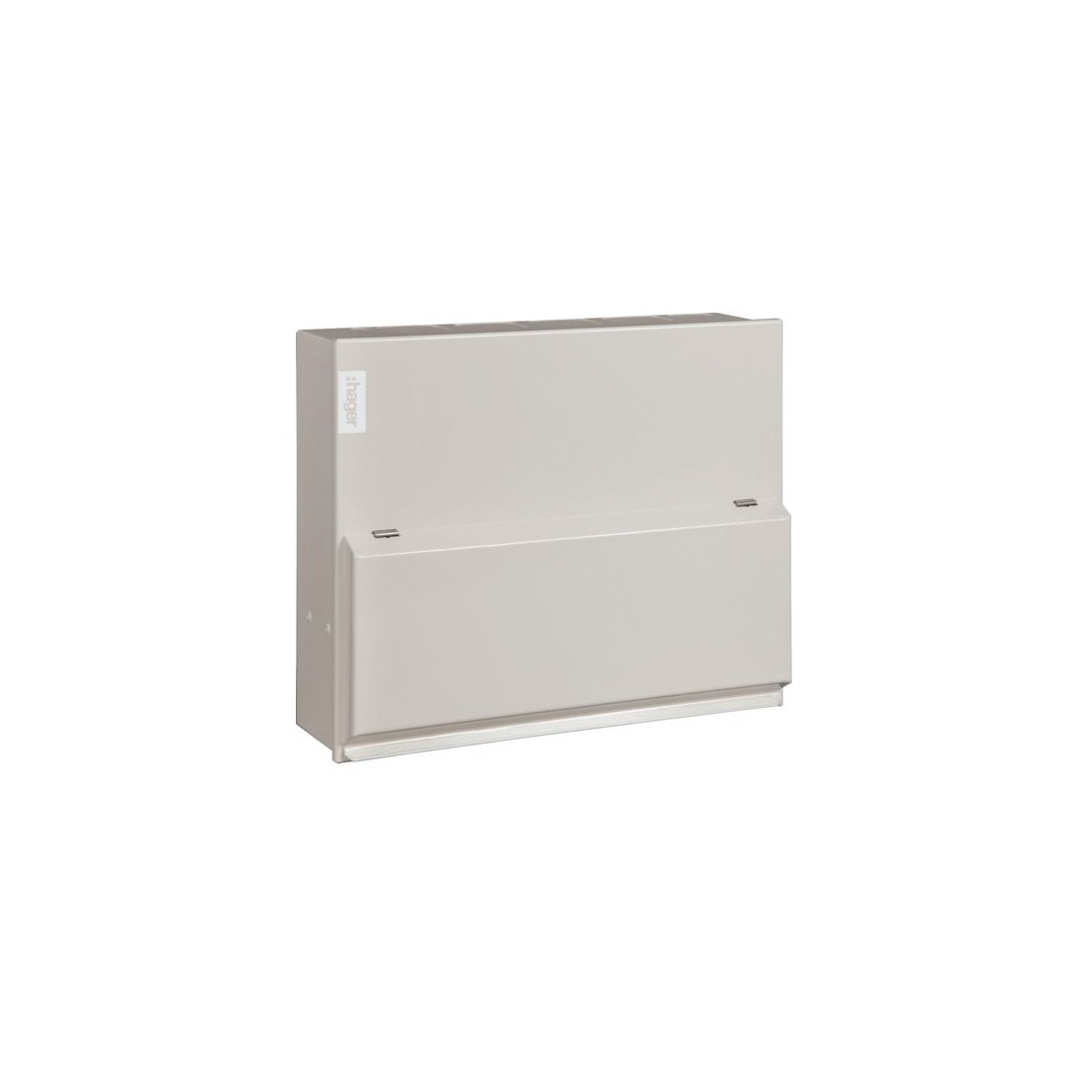

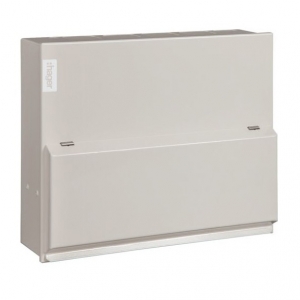

The non-combustible enclosure has a plain door and is manufactured from steel. It is fully compliant with the 18th Edition wiring regulations, making it suitable for existing and new build installations.

With a high gloss and durable finish combined with clean lines and impressive styling, there is a Hager consumer unit for every home.

Complies with BS EN 61439-3 Annex ZB.

Hager VML110 Features

• Hager VML110 Design 10 metal 10 way switch isolator consumer unit
• Supplied with 100A DP Switch Isolator
• 10 useable ways
• White high gloss metal enclosure with plain door
• Retained front cover screws prevent loss during installation
• IP Rating: IP2XC
• Accepts the latest Hager MCBs and miniature RCBOs
• Provides ample wiring space
• Full metal DIN rail assembly
• Snap-able busbar for a quick and easy circuit configuration
• Terminal bars are top mounted allowing for easy cable dressing - fully rated to 100A
• 18th Edition compliant
• Cable entry knockouts on 5 sides (left, right, top, bottom and rear)
• Supplied with meter tail cable entry plate (VM04CE) as standard
• Cable entries positioned for easy access to devices
• Grommet strip protectors prevent damage to cable caused by sharp edges
• Incoming Line/Neutral terminal: 50mm² | Incoming Earth Terminal: 16mm²
• Supplied with marking labels and installations instructions.
• Standards: BS 7671:2018, BS EN 61439-3 including Annex ZB (16kA rating)
• Dimensions: Width: 299mm | Height: 246mm | Depth:100mm
