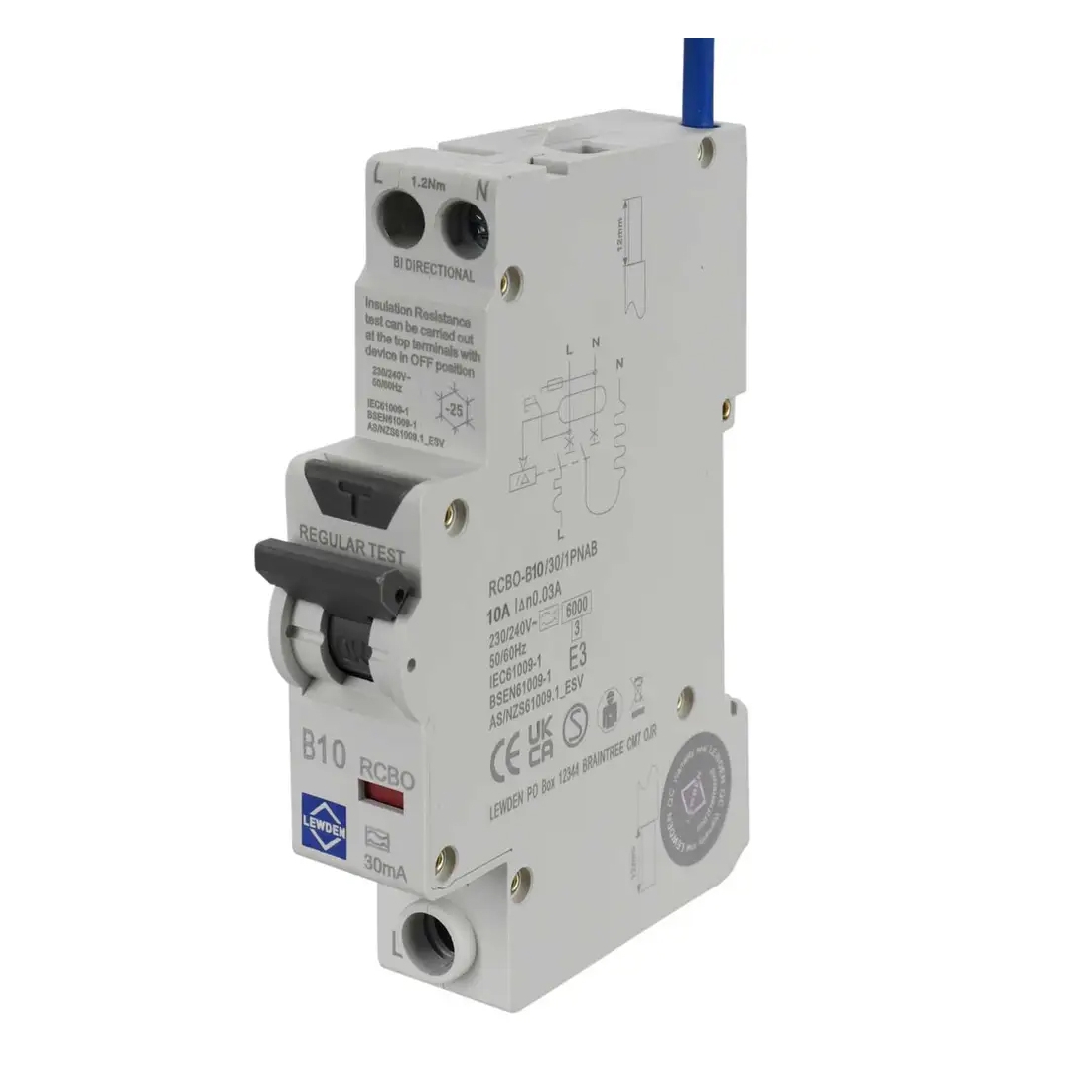

Lewden RCBO-B10/30/1PNAB 1P+SN 10A 6kA 30mA Type-A B-Curve Reduced Height Bi-Directional RCBO 1 Module

Lewden RCBO-B10/30/1PNAB Description

The Lewden RCBO-B10/30/1PNAB 1P+SN 10A 6kA 30mA Type A B-Curve Reduced Height Bi-Directional RCBO provides comprehensive circuit protection by combining the functions of an MCB and RCD into a space-saving 1-module device. Rated at 10A with a B-Curve tripping characteristic, 30mA Type A residual current protection and a 6kA breaking capacity, it protects against overloads, short circuits and earth leakage faults, making it suitable for lighting, control circuits and other lower current applications. Its bi-directional capability allows safe operation where power can flow in either direction, making it ideal for renewable energy installations, battery storage systems and EV charging applications. Featuring a 1P+SN switched neutral design for double pole isolation and a reduced height profile to maximise wiring space, the RCBO is manufactured to BS EN 61009-1 and is designed for reliable performance within Lewden consumer units.

Lewden RCBO-B10/30/1PNAB Features

• Lewden RCBO-B10/30/1PNAB reduced height bi-directional RCBO
• Rated current: 10A
• 1P+SN (Single Pole + Switched Neutral) configuration
• Provides double pole isolation for improved safety
• Type A RCD protection
• Residual operating current: 30mA
• B-Curve tripping characteristic
• 6kA short circuit breaking capacity
• Suitable for bi-directional power flow applications
• Ideal for solar PV, battery storage, EV charging and microgeneration systems
• Compact 1-module (18mm) width
• Reduced height 96mm design provides additional wiring space within the consumer unit
• Suitable for TN and TT earthing systems
• Rated voltage: 230V AC, 50Hz
• DIN rail mounting
• Terminal capacity: 16mm²
• Manufactured to BS EN 61009-1
• Designed for use with Lewden consumer units and distribution boards
