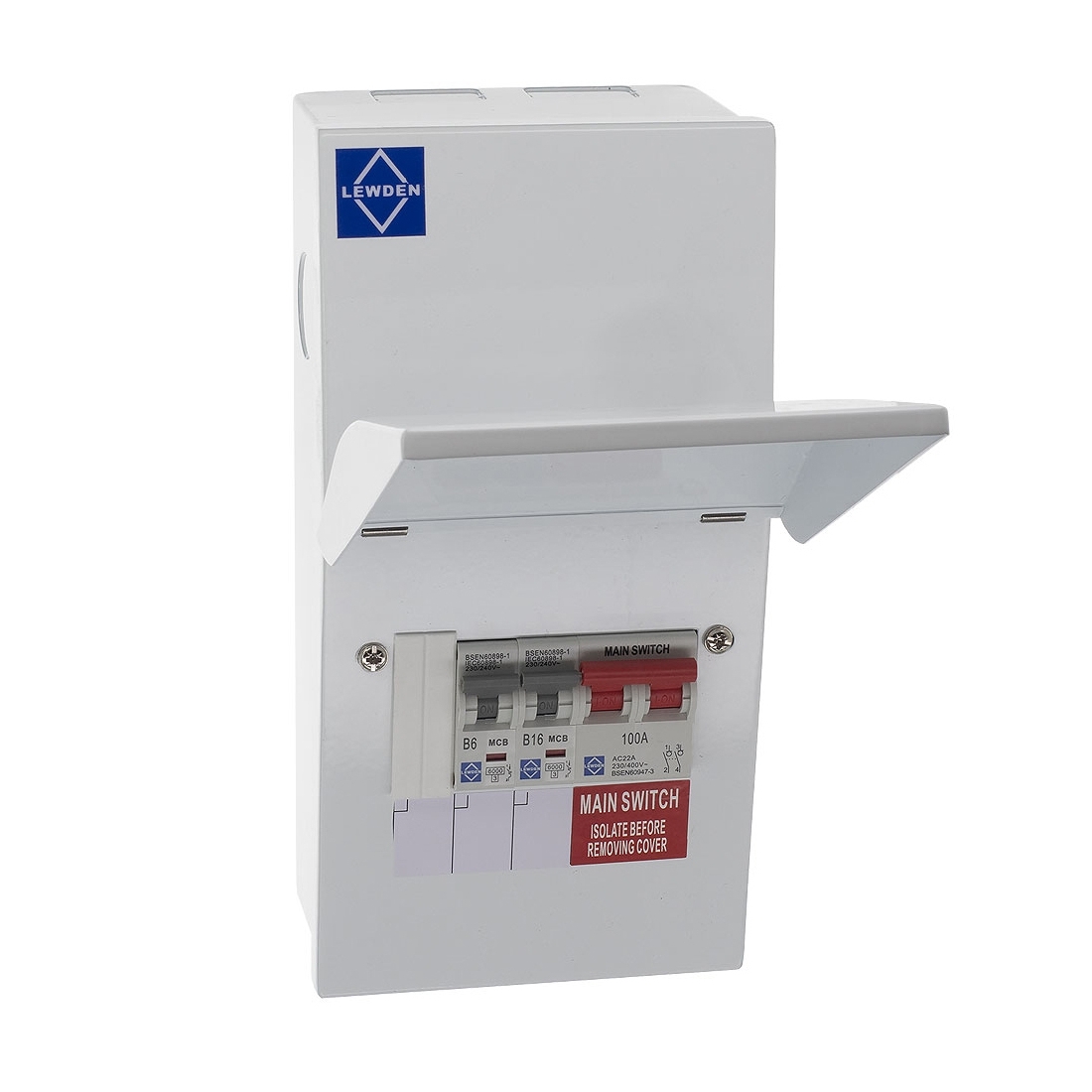

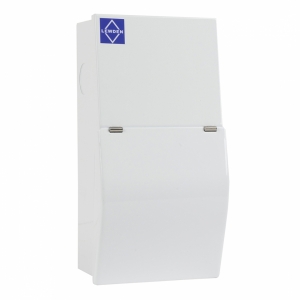

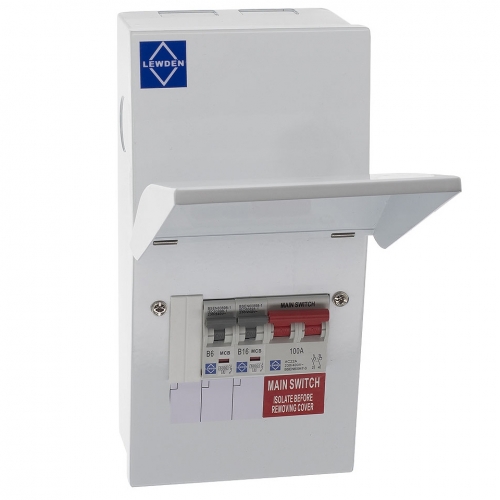

Lewden PRO-RGARAGE-MS Pro Series White Metal Pre-Populated 2+1 Way Garage Consumer Unit With 100A Switch Isolator, 1 x 6A + 1 x 16A MCBs

Lewden PRO-RGARAGE-MS Description

The Lewden PRO-RGARAGE-MS is a white all metal pre-populated 2+1 way garage consumer unit with 100A main switch isolator, 1x6A + 1x16A MCBs & 1 extra module for the installation of a surge protection device SPD.

The metal enclosure comes supplied with a full metal DIN rail and full complement of clearly labelled earth and neutral terminals positioned at the top, along with circuit identification labels providing clear understanding of outgoing ways.

Has a selection of knockouts which are positioned at top, bottom, sides and the base of the enclosure which are suitable for mini trunking and conduits to ensure quick and neat installation of these boards

Supplied with 100A main switch isolator and 2 miniature circuit breakers (1x6A + 1 x 16A) and has one extra module for the installation of SPD.

This economic, easy to install, attractively styled white powder coated garage consumer unit with self-closing door is fully compliant 18th Edition Regulations.

Lewden PRO-RGARAGE-MS Features

• Lewden PRO-RGARAGE-MS white all metal 2+1 way pre-populated garage consumer unit
• Round knockouts
• Attractively styled, finished in smooth white RAL9003 powder coated finish
• Suitable for garages
• Now with one extra modular way to allow for a surge protector
• 1 x 100A main switch isolator
• Supplied with 2 MCBs (1x6A + 1x16A)
• Earth & neutral terminals positioned at the top of the enclosure for a quick and easy install
• Busbar shroud
• All terminal bars clearly labelled
• Full metal DIN rail assembly
• Choice of knockouts for mini trunking & conduit
• Supplied complete with circuit identification labels, phase insulators and module blanks
• 18th Edition consumer unit compliant to BS7671:2018
• Dimensions: Width: 136mm | Height: 266mm | Depth: 106mm
