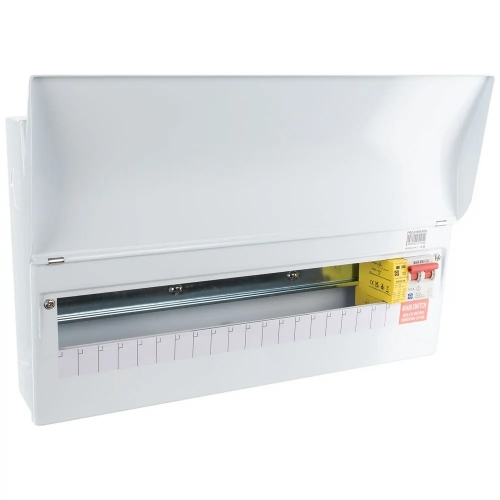

Lewden PRO-S19W-R1S White 19 Way Switch Isolator Surge Protected Consumer Unit With 100A Isolator & SRGT2B Type 2 Surge Protection Device

Lewden PRO-S19W-R1S Description

The metal enclosure comes supplied with a full metal DIN rail and full complement of clearly labelled earth and neutral terminals positioned at the top, along with circuit identification labels providing clear understanding of outgoing ways.

Includes generous extra wiring space designed for the installation of single module RCBOs. Supplied with shroud for the protection of live busbars.

Has a selection of knockouts which are positioned at top, bottom, sides and the base of the enclosure which are suitable for mini trunking and conduits to ensure quick and neat installation of these boards.

Supplied with 100A main switch isolator. The PRO-S19W-R1S consumer unit can be populated with up to 19 RCBOs.

Supplied complete with Type 2 Surge Protection device (SRGT2B)

This economic, easy to install, attractively styled white powder coated consumer unit is fully compliant with the 18th Edition wiring regulations.

Lewden PRO-S19W-R1S Features

• Attractively styled, finished in smooth white RAL9003 powder coated finish
• 1 x 100A main switch isolator
• Supplied complete with Type 2 Surge Protection Device (SRGT2B)
• Extra installation height makes this an ideal RCBO consumer unit
• 19 x usable ways for RCBOs or MCBs
• Supplied with all internal connections allowing the selection of desired RCBO rating and type
• Earth & neutral terminals positioned at the top of the enclosure for a quick and easy install
• Busbar shroud
• All terminal bars clearly labelled
• Full Din rail accepts any modular DIN devices such as bell transformers and timers
• Supplied complete with circuit identification labels, phase insulators and module blanks
• 18th Edition consumer unit compliant to BS EN 61439-3
• Dimensions: Width: 443mm | Height: 266mm | Depth: 106mm
