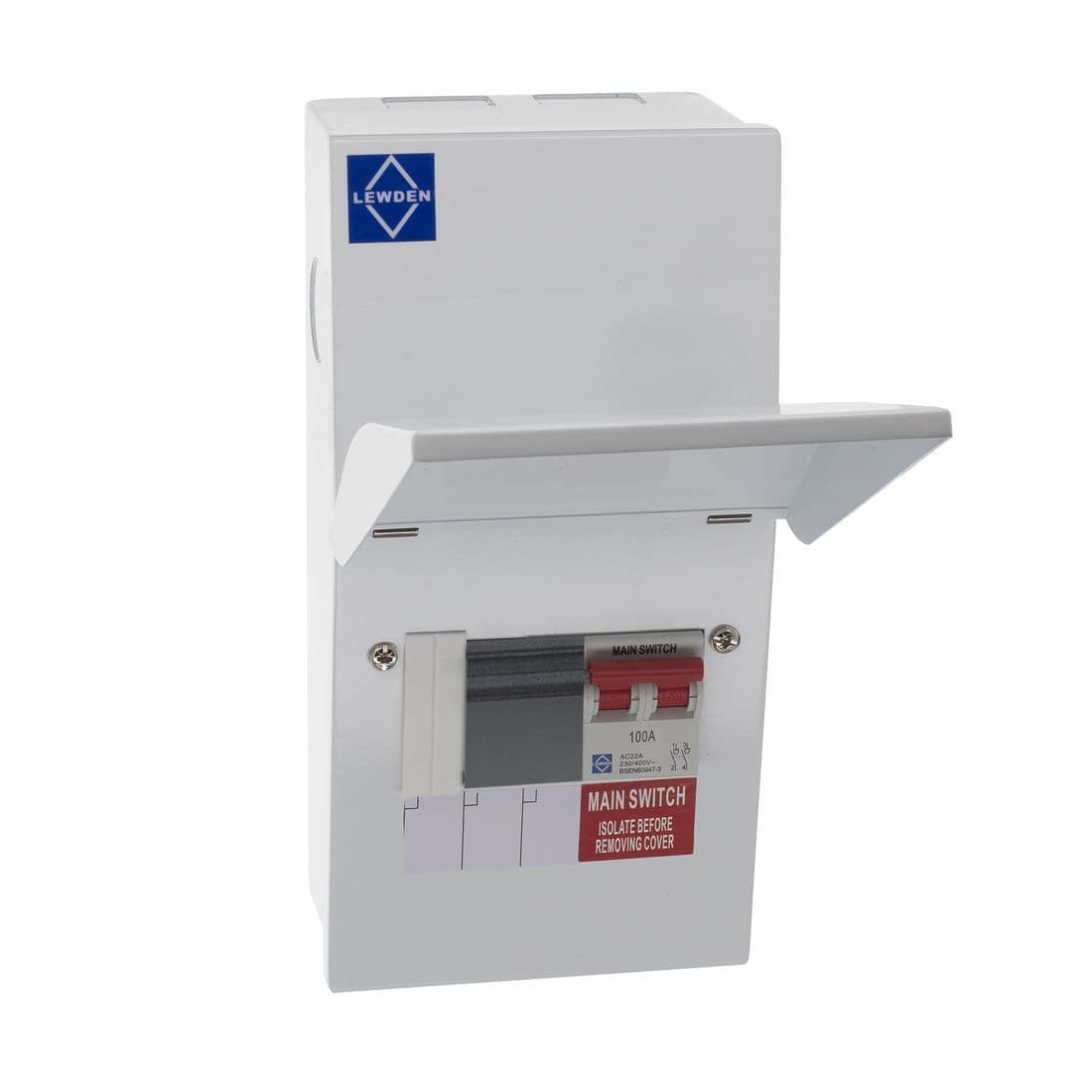

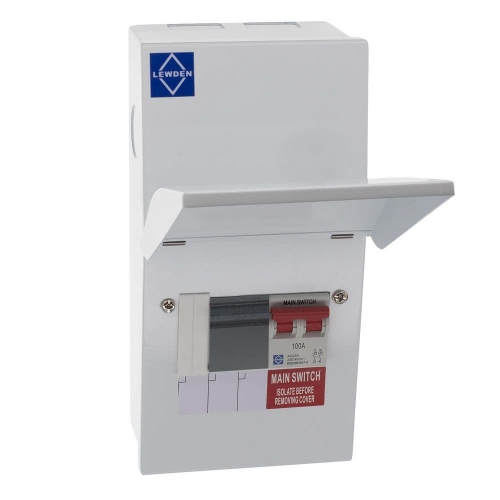

Lewden PRO-R03W-R1 3 Way Switch Isolator Consumer Unit With 100A Isolator & Round Knockouts White All Metal.

Lewden PRO-R03W-R1 Description

The Lewden PRO-R03W-R1 is a white all metal 3 way switch isolator consumer unit with 100A main switch isolator. Designed with round knockouts, these units allows on-site design flexibility and easy installation.
The metal enclosure comes supplied with a full metal DIN rail and full complement of clearly labelled earth and neutral terminals positioned at the top, along with circuit identification labels providing clear understanding of outgoing ways.
Includes generous extra wiring space designed for the installation of single module RCBOs. Supplied with shroud for the protection of live bus bars.
Has a selection of round knockouts which are positioned at top, bottom, sides and the base of the enclosure which are suitable for mini trunking and conduits to ensure quick and neat installation of these boards.
This economic, easy to install, attractively styled white powder coated consumer unit is fully compliant with the 18th Edition wiring regulations.

Lewden PRO-R03W-R1 Features

• Attractively styled, finished in smooth white RAL9003 powder coated finish
• Now with one extra modular way to allow for a surge protector
• 1 x 100A main switch isolator
• Extra installation height makes this an ideal RCBO consumer unit
• 3 x usable ways for RCBOs or MCBs
• Supplied with all internal connections allowing the selection of desired RCBO rating and type
• Earth & neutral terminals positioned at the top of the enclosure for a quick and easy install
• Choice of round knockouts for mini trunking & conduit
• Busbar shroud
• All terminal bars clearly labelled
• Full Din rail accepts any modular DIN devices such as bell transformers and timers
• Supplied complete with circuit identification labels, phase insulators and module blanks
• 18th Edition consumer unit compliant to BS7671:2018
• Dimensions: Width: 136mm | Height: 266mm | Depth: 106mm
