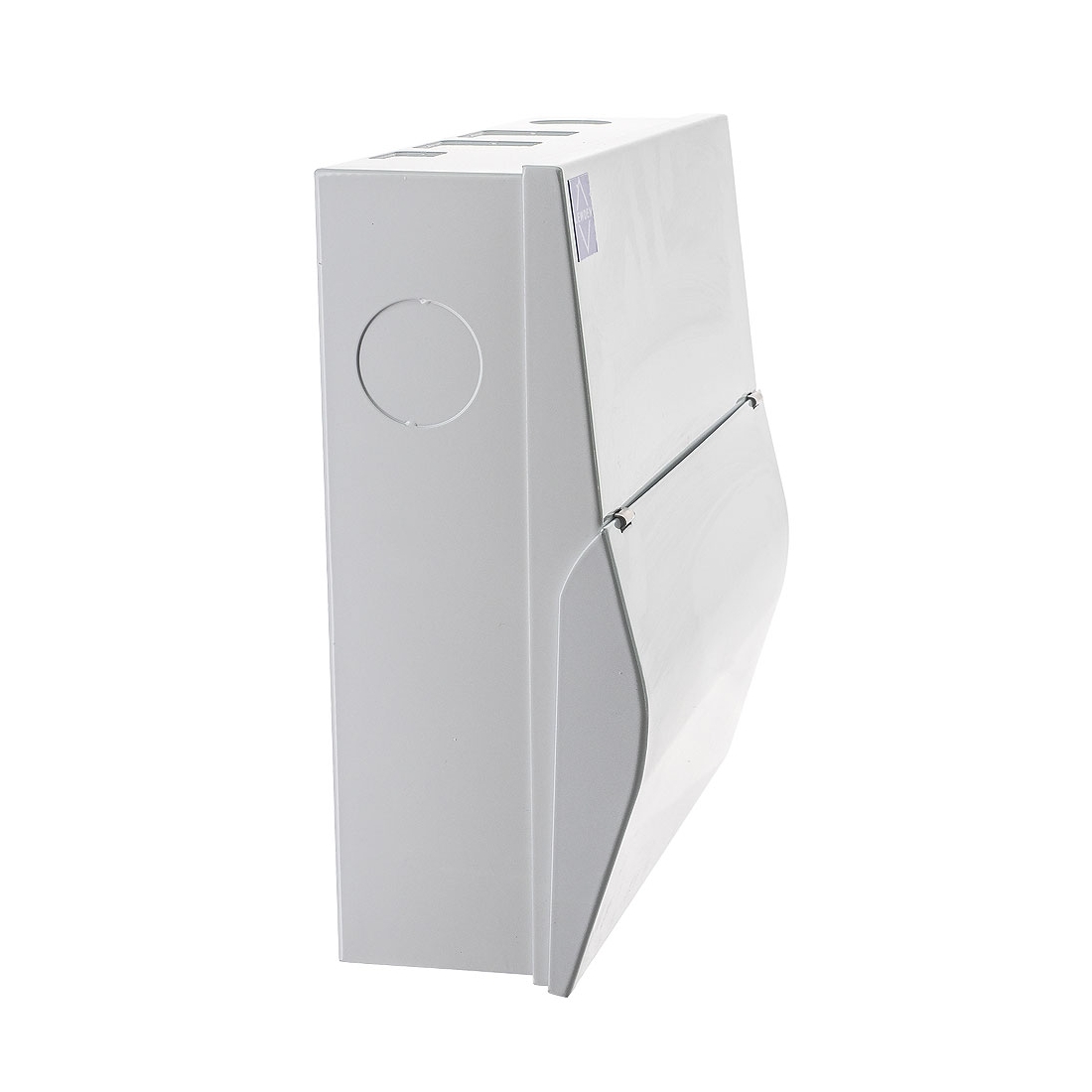

Lewden PRO-MX21RRMFLEXIA 15+1 Way Split Consumer Unit With 100A Isolator & Dual RCDs

Lewden PRO-MX21RRMFLEXIA Description

The Lewden PRO-MX21RRMFLEXIA is a white metal 15+1 way flexible split load dual RCD consumer unit offering an easy to install consumer unit, meeting the requirements of the latest 18th Edition Wiring Regulations.

Offers 15 fully configurable ways plus 1 extra module included for the optional installation of surge protection. The unit enables on-site configuration to high integrity option.

Pre-installed with a 100A double pole switch isolator and 2 x 80A 30mA type A RCD incomers. It accepts the latest Lewden MCB and miniature RCBOs.

The Pro series consumer unit has a curved, non-intrusive design that fits seamlessly into its surroundings. The all metal enclosure is painted in low smoke and fume paint in compliance with the latest 18th edition wiring regulations.

Designed with the installer in mind, it is easy to install with generous cable room with neutral and earth bars mounted on the top of the enclosure. Offers a choice of knockouts for mini trunking & conduit.

Tested in accordance to BS EN 61439-3. it includes comprehensive user instructions and high quality sub circuit identification labels.

Lewden PRO-MX21RRMFLEXIA Features

• Lewden RO-MX21RRMFLEXIA flexible split load dual RCD consumer unit
• 15 + 1 useable ways, 22 module enclosure
• One additional modular way for the provision of a surge protection module
• White all curved fully metal enclosure
• Stylish, non-obtrusive design
• Low smoke and fume paint
• IP Rating: IP2XC
• Highly flexible in configuration permitting any combination of RCD protected ways
• Metal DIN rail assembly
• Flexible Busbar allowing the user to choose how they configure the split-load
• Rating: 230V - 240V
• 100A double pole main switch isolator
• 2 x 80A 30mA Type A RCDs
• Accepts the latest Wylex MCB and miniature RCBOs
• Optional on-site configuration as high integrity
• Cable entry knockouts for mini trunking & conduit
• Generous cable room with neutral and earth bars mounted on the top of the enclosure
• Circuit identification labels providing clear understanding of outgoing ways
• Busbar shroud
• 18th edition wiring regulations
• Standards: BS EN 61439-3, BS7671:2018
• Dimensions: Height: 266mm | Width: 443mm | Depth: 106mm
