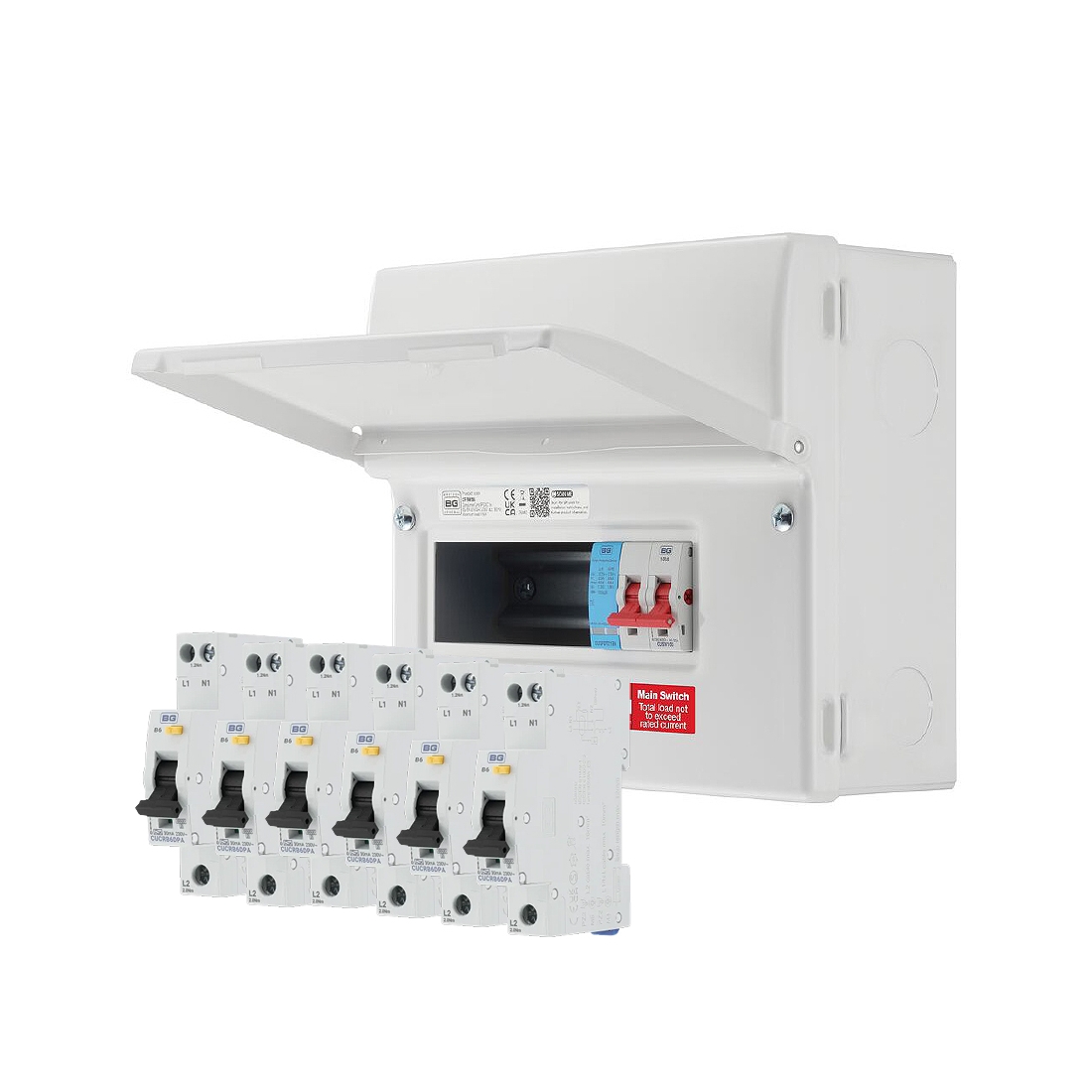

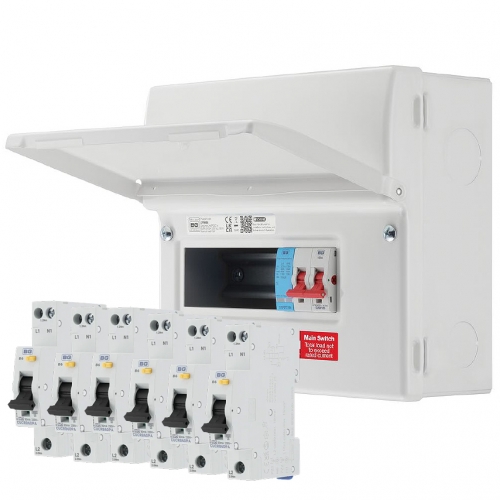

BG Electrical CF12MS9-PP 9 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 2x6A + 1x16A + 3x32A RCBOs & 3 Blank Modules

BG Electrical CF12MS9-PP Description

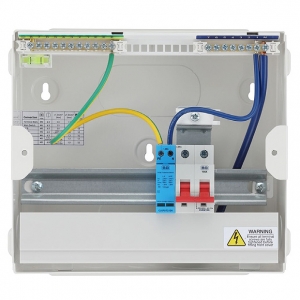

The BG Electrical CF12MS9-PP 9 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit is designed to simplify installation while providing comprehensive protection for today's residential electrical systems. Supplied with 2 x 6A, 1 x 16A and 3 x 32A Type A bi-directional RCBOs, together with a 100A double pole main switch, integrated Type 2 Surge Protection Device (SPD) and three blank modules, it offers an installer-ready solution that saves time on site. The Type A RCBOs provide individual circuit protection against overloads, short circuits and earth leakage faults, while the SPD helps protect sensitive electronic equipment from transient overvoltages. Manufactured from a robust steel enclosure and compliant with BS EN 61439-3, the BG Fortress consumer unit range also incorporates installer-friendly features including an integrated spirit level, retained backed-out terminal screws, generous cable entry knockouts and optional cable clamp compatibility. Ideal for new installations, rewires and consumer unit upgrades, the CF12MS9-PP combines safety, flexibility and reliable long-term performance.

BG Electrical CF12MS9-PP Features

• BG Electrical CF12MS9-PP pre-populated metal consumer unit
• 9 usable outgoing ways (16-module enclosure)
• Supplied with: 2 x 6A Type A bi-directional RCBOs, 1 x 16A Type A bi-directional RCBO, 3 x 32A Type A bi-directional RCBOs, 3 blank modules for future circuit expansion
• 100A double pole main switch isolator
• Integrated Type 2 Surge Protection Device (SPD)
• Individual RCBO protection reduces nuisance tripping
• Suitable for 18th Edition compliant domestic installations
• Robust 1.0mm steel enclosure with white powder-coated finish
• Surface mounting design
• Integrated spirit level for faster, more accurate installation
• Retained and backed-out terminal screws for easier wiring
• Multiple knockouts for flexible cable entry
• Optional cable clamp supplied
• Rated operational voltage: 230V AC
• Frequency: 50Hz
• Main switch rating: 100A
• Conditional short circuit rating: 16kA
• Rated insulation voltage: 500V AC
• Impulse withstand voltage (Uimp): 4kV
• Front protection rating: IP2XC
• Manufactured to BS EN 61439-3
• Dimensions: 388.4mm (W) x 231mm (H) x 116mm (D)
