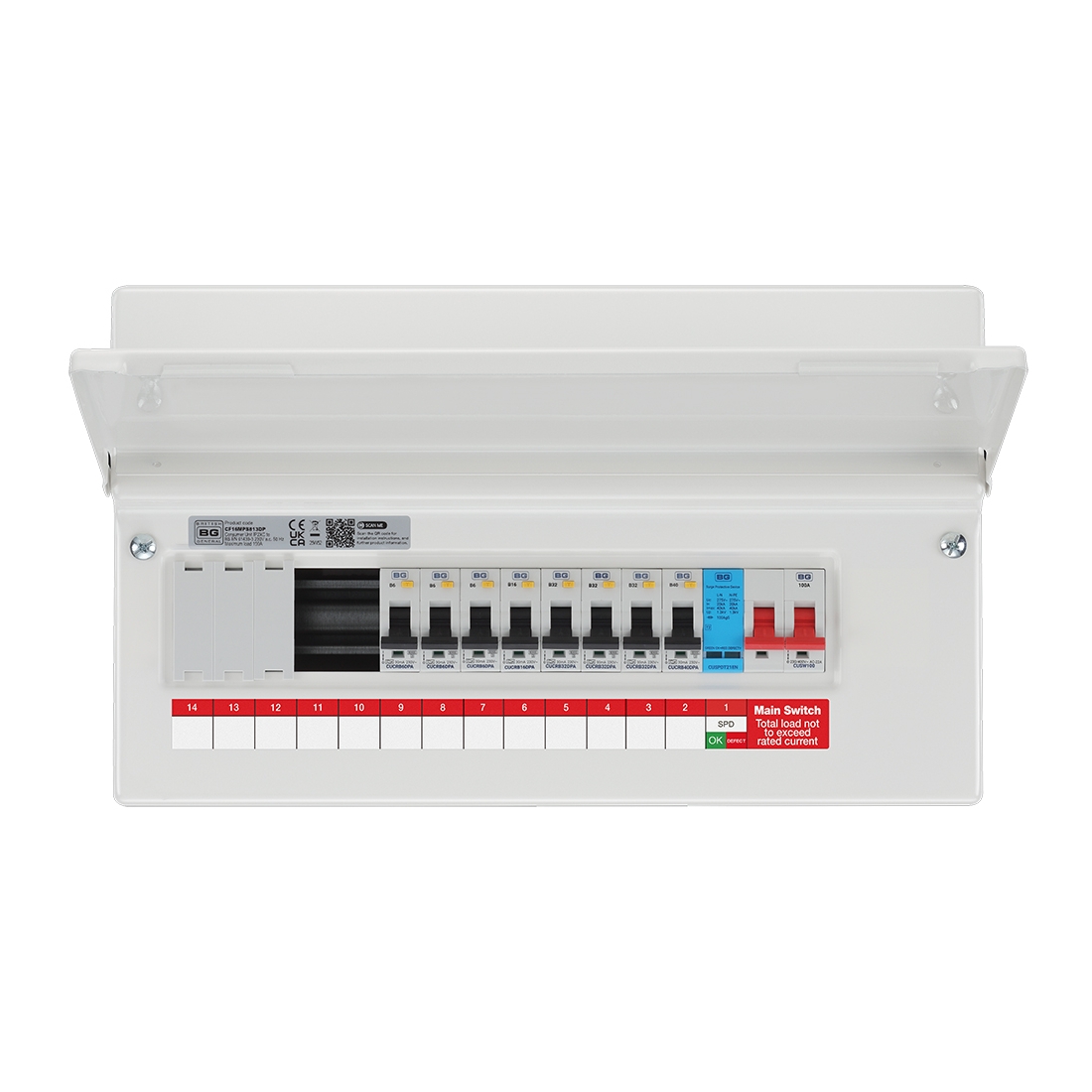

BG Electrical CF16MS13-PP 13 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 3x6A + 1x16A + 4x32A RCBOs & 5 Blank Modules

BG Electrical CF16MS13-PP Description

The BG Electrical CF16MS13-PP 13 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit offers an installer-ready solution that reduces installation time while delivering comprehensive circuit protection. Supplied with 3 x 6A, 1 x 16A and 4 x 32A Type A bi-directional RCBOs, alongside a 100A double pole main switch, integrated Type 2 Surge Protection Device (SPD) and 5 blank module spaces, it provides an ideal balance of protection and future flexibility. Individual RCBO protection helps minimise nuisance tripping by isolating only the affected circuit, while the integrated SPD protects valuable electrical equipment from transient overvoltages caused by lightning strikes and switching events. Manufactured from a durable steel enclosure and compliant with BS EN 61439-3, the BG Fortress range includes installer-friendly features such as a floating busbar, integrated spirit level, retained backed-out terminal screws and multiple cable entry knockouts for faster, neater installations. Ideal for new-build properties, rewires and consumer unit upgrades, the CF16MS13-PP is designed to meet the demands of today's electrical installations while allowing room for future additions such as EV charging or solar PV systems.

BG Electrical CF16MS13-PP Features

• BG Electrical CF16MS13-PP pre-populated metal consumer unit
• 13 usable outgoing ways (16-module enclosure)
• Supplied with: 3 x 6A Type A bi-directional RCBOs, 1 x 16A Type A bi-directional RCBO, 4 x 32A Type A bi-directional RCBOs, 5 blank modules for future circuit expansion
• 100A double pole main switch isolator
• Integrated 40kA Type 2 Surge Protection Device (SPD)
• Individual RCBO protection reduces nuisance tripping
• Suitable for 18th Edition compliant domestic installations
• Heavy-duty 1.0mm steel enclosure with white powder-coated finish
• Surface mounting design

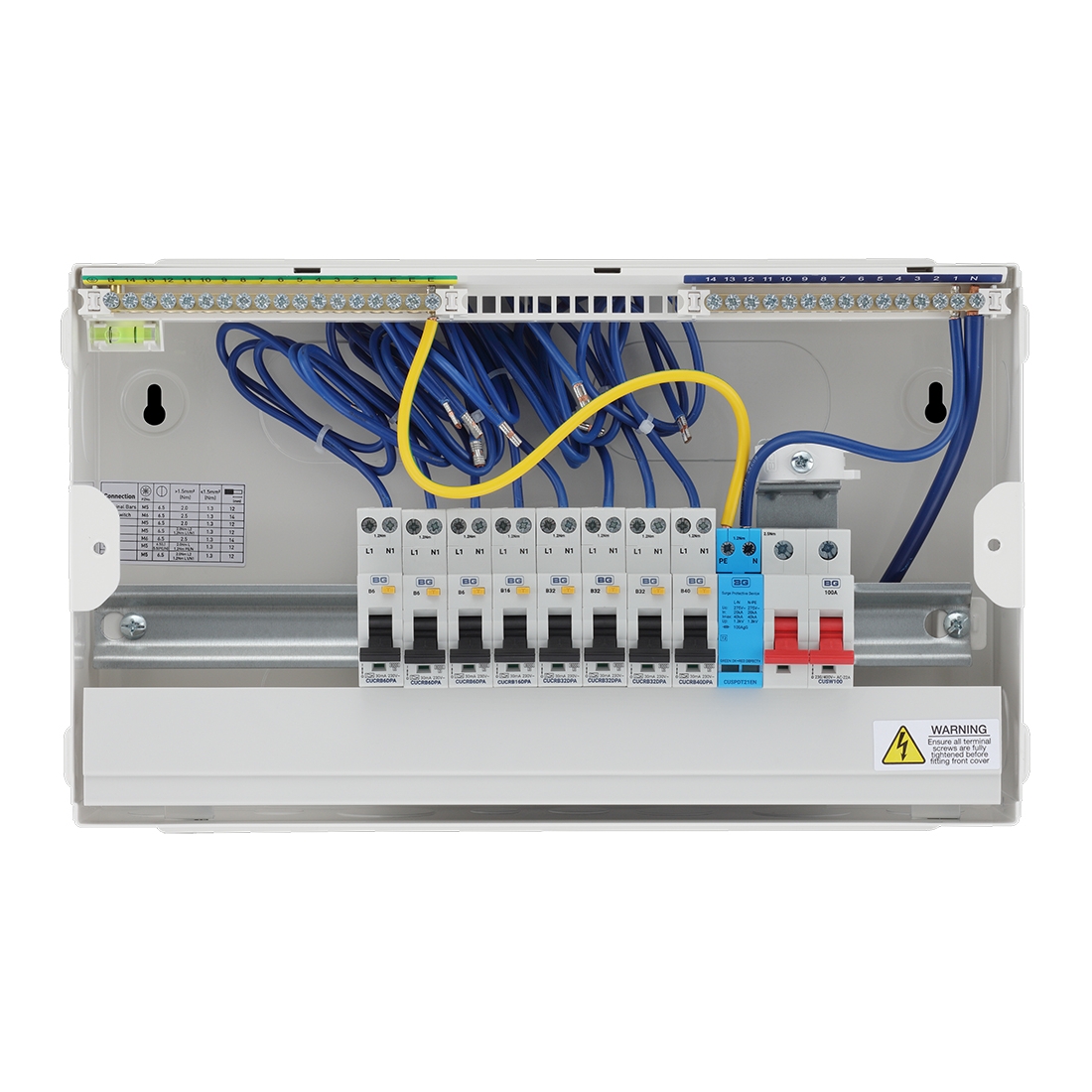

• Floating busbar for easier installation and future modifications
• Integrated spirit level for accurate mounting
• Backed-out and retained terminal screws for quicker wiring
• Multiple top, bottom, side and rear cable entry knockouts
• Optional cable clamp included
• Rated operational voltage: 230V AC, 50Hz
• Main switch rating: 100A
• Rated conditional short circuit current: 16kA
• Rated impulse withstand voltage: 4kV
• Front protection rating: IP2XC
• Manufactured to BS EN 61439-3 and EN/IEC 60947-3
• Dimensions: 388.4mm (W) x 229.9mm (H) x 115.9mm (D)
• Designed to accommodate future additions including EV charging and solar installations
