Fusebox F3011MZ-PP 11 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 2x6A + 1x16A + 3x32A RCBOs & 5 Blank Modules

Fusebox F3011MZ-PP 11 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 2x6A + 1x16A + 3x32A RCBOs & 5 Blank Modules

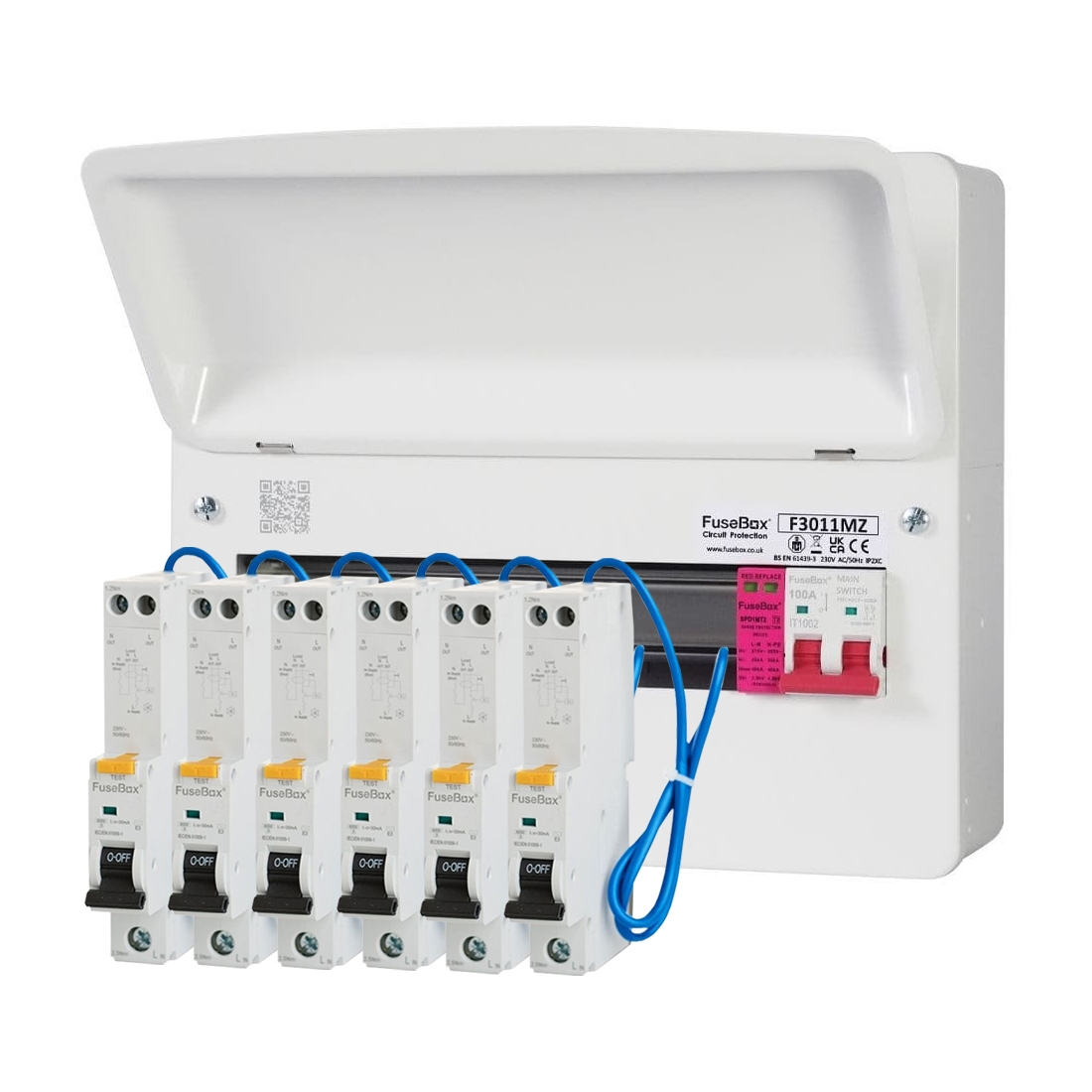

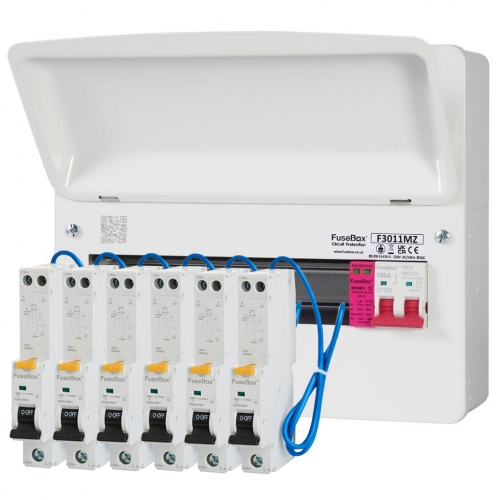

The Fusebox F3011MZ-PP is an 11 way pre-populated surge protected switch isolator consumer unit that is part of the new F3 Series range of consumer units.

Order code: F3011MZ-PP
Manufacturer:
GTIN:

£ 141.24 incl. VAT
£ 117.70 excl. VAT

Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Fusebox F3011MZ-PP Description

The Fusebox F3011MZ-PP is an 11 way pre-populated surge protected switch isolator consumer unit that is part of the new F3 Series range of consumer units.

The modern curved enclosure design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.

Supplied with a single-module Type 2 Surge Protection Device (Code: SP1MT2) that connects directly to the busbar without requiring an additional miniature circuit breaker. This not only makes the installation process easier, it also provides an extra useable way in the consumer unit.

This fully pre-populated consumer unit is supplied with 2x6A,  1x16A + 3x32A 1 module SP Type-A B-Curve standard height RCBOs. Supplied with 5 x ADRB DIN rail mounting blank modules.

An upgraded reinforced grommet strip is included along with busbar and identification label pack.

Installation is made simple with captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

Fusebox F3011MZ-PP Features

  • F3011MZ-PP 11 way pre-populated surge protected switch isolator consumer unit
  • 100A main switch isolator
  • Factory installed single module, direct-to-busbar T2 SPD (SP1MT2)
  • No MCB required for the upgraded SPD. This allows for an additional useable way
  • Supplied with 2x6A,  1x16A + 3x32A 1 module SP Type-A B-Curve standard height RCBOs
  • Supplied with 5 x ADRB DIN rail mounting blank modules.
  • Upgraded reinforced grommet strip included
  • 18th Edition and Amendment 3 compliant
  • 32mm tails clamp included
  • Earth and neutral terminal bars at the top
  • Removable and raised DIN rail
  • Round knock-outs on all faces
  • Identification label pack
  • Captive front cover screws
  • Updated model replacing the F2010MX
  • Dimensions: Width: 306mm | Height: 259mm | Depth: 113mm
