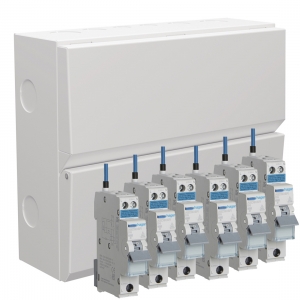

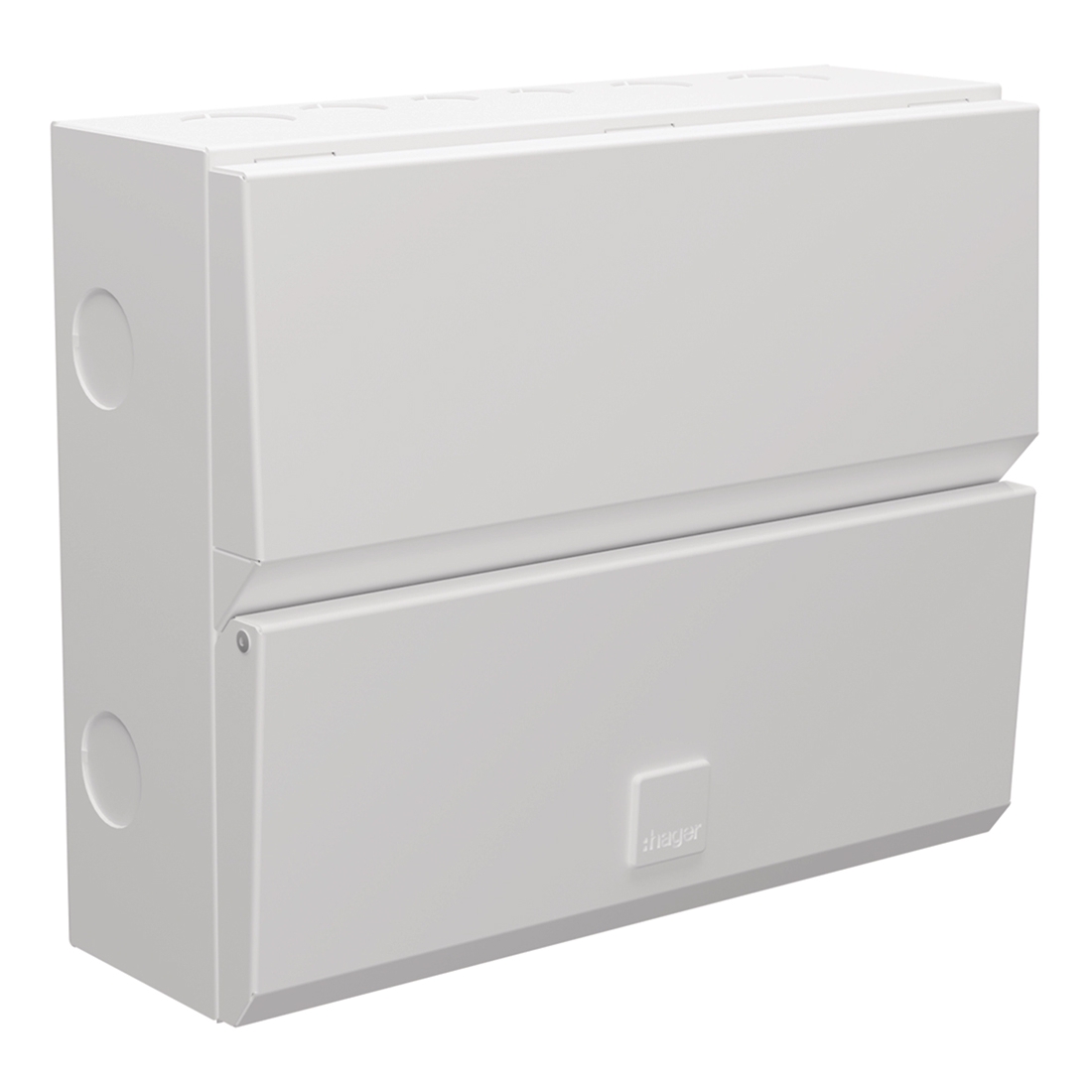

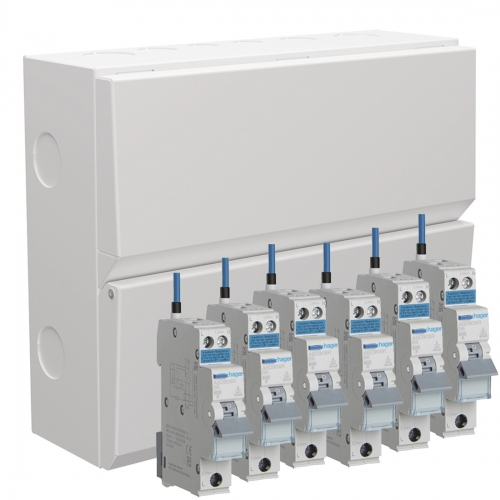

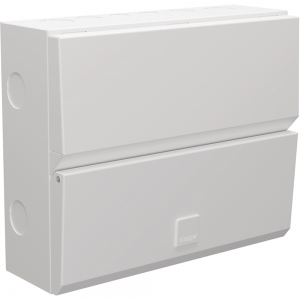

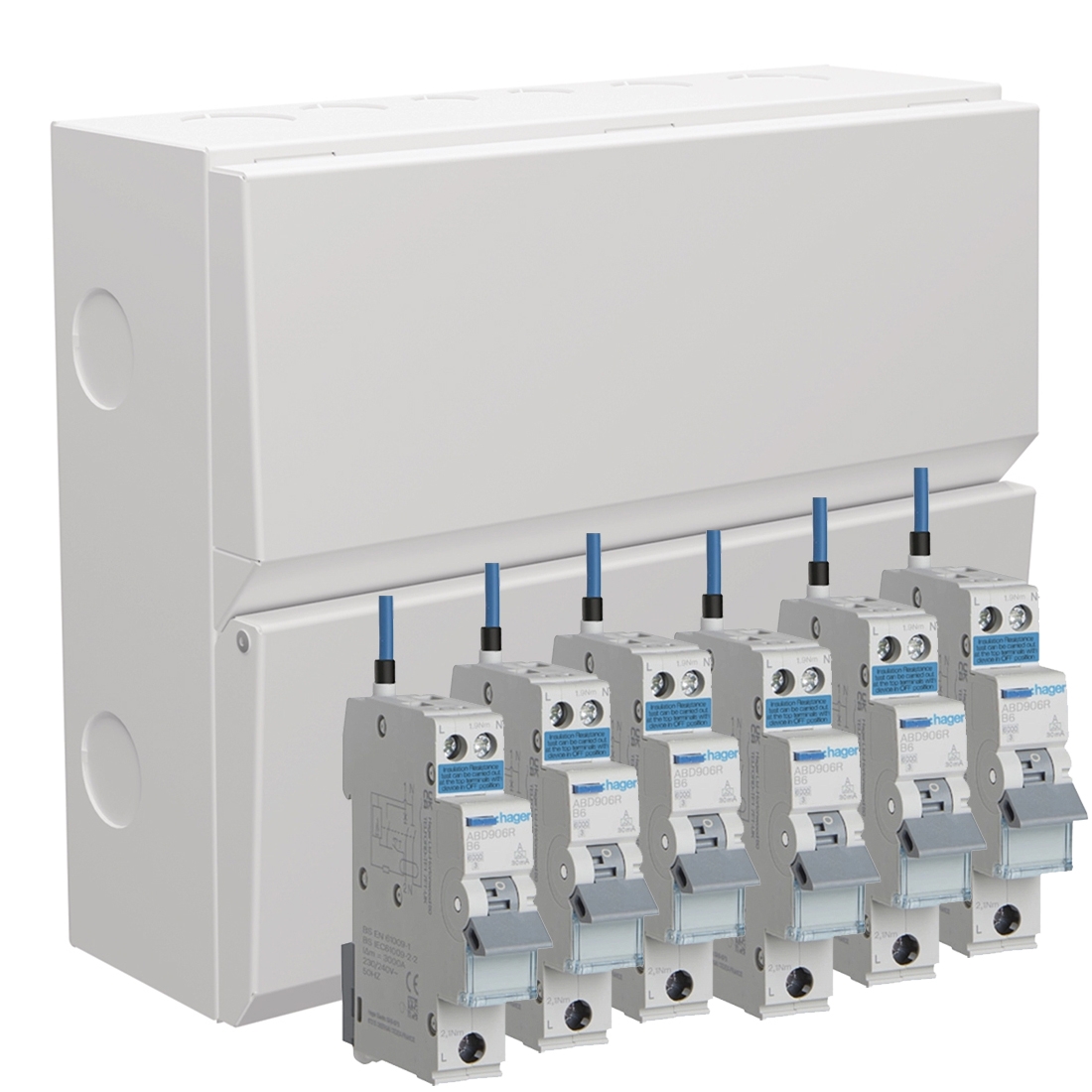

Hager VME109SPD-PP Design Evo White 9 Way Pre-Populated SPD Switch Isolator Consumer Unit With 100A Isolator, Type 2 Surge Protection Device & RCBOs

Hager VME109SPD-PP Description

The Hager VME109SPD Design Evo White 9 Way Consumer Unit combines contemporary aesthetics with advanced electrical protection, making it an ideal choice for modern domestic installations. Supplied with a 100A main switch isolator and factory-fitted Type 2 Surge Protection Device, this consumer unit helps safeguard electrical circuits and sensitive electronic equipment against transient overvoltages caused by lightning strikes and switching events.

Part of Hager's innovative Design Evo consumer unit range, the VME109SPD has been developed to meet the latest requirements of BS 7671 Wiring Regulations, offering a practical and compliant solution for new builds, renovations and consumer unit upgrades. The integrated SPD provides enhanced protection for increasingly valuable household electronics, including smart home systems, televisions, computers, broadband equipment and appliances.

The unit features 9 usable outgoing ways, providing flexibility for a wide range of residential circuit configurations. Its robust steel enclosure, modern white finish and discreet styling allow it to blend seamlessly into contemporary interiors while maintaining the durability and reliability expected from Hager products.

Designed with installers in mind, the VME109SPD incorporates generous wiring space, multiple cable entry points and a removable DIN rail assembly to simplify installation and maintenance. The consumer unit also supports Hager's latest range of RCBOs, enabling individual circuit protection and helping to minimise disruption in the event of a fault.

Combining premium design, surge protection and trusted Hager engineering, the VME109SPD is an excellent choice for homeowners and electrical contractors seeking a safe, compliant and future-proof consumer unit solution.

Hager VME109SPD-PP Features

• 9 usable outgoing ways
• Factory-fitted Type 2 Surge Protection Device (SPD)
• Supplied with 100A Double Pole Switch Isolator
• Supplied with 2 x 6A + 1 x 16A + 3 x 32A RCBOs
• Supplied with 3 x blank modules
• Designed for residential and domestic installations
• Helps protect sensitive electronic equipment from transient overvoltages
• Compliant with current BS 7671 Wiring Regulations
• Suitable for use with Hager RCBO protection devices
• Modern Design Evo white finish
• Durable steel enclosure construction
• Double pole isolation for enhanced safety
• High-integrity consumer unit design
• Generous internal wiring space for easier installation
• Multiple knockouts and cable entry options
• Removable DIN rail assembly for improved accessibility
• Flush-fitting front cover with contemporary styling
• Suitable for new installations, refurbishments and consumer unit upgrades
• Rated current: 100A
• SPD type: Type 2
• Voltage rating: 230V AC
• Frequency: 50Hz
• Colour: White (RAL 9010)
• IP rating: IP2XC
• Material: Powder-coated steel enclosure
• Manufactured to relevant BS EN 61439-3 standards
• Dimensions: Height: 240mm, Width: 293mm, Depth: 102.5mm
