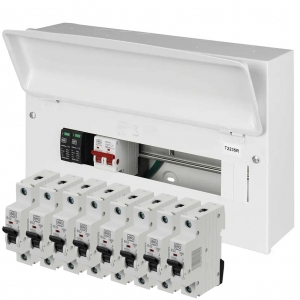

MK Sentry YS5716SMET-PP 12 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 3x6A + 1x16A + 4x32A RCBOs & 4 Blank Modules

MK Sentry YS5716SMET-PP 12 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 3x6A + 1x16A + 4x32A RCBOs & 4 Blank Modules

The MK Sentry YS5716SMET-PP is a pre-populated 12-way surge protected consumer unit designed to simplify installation while delivering reliable protection for modern domestic electrical systems. Complete with a 100A switch isolator, Type 2 SPD, eight RCBOs and four spare module spaces, it offers flexibility for both current and future circuit requirements.

Order code: YS5716SMET-PP
Manufacturer:
GTIN:

£ 179.44 incl. VAT
£ 149.53 excl. VAT

Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

MK Sentry YS5716SMET-PP Description

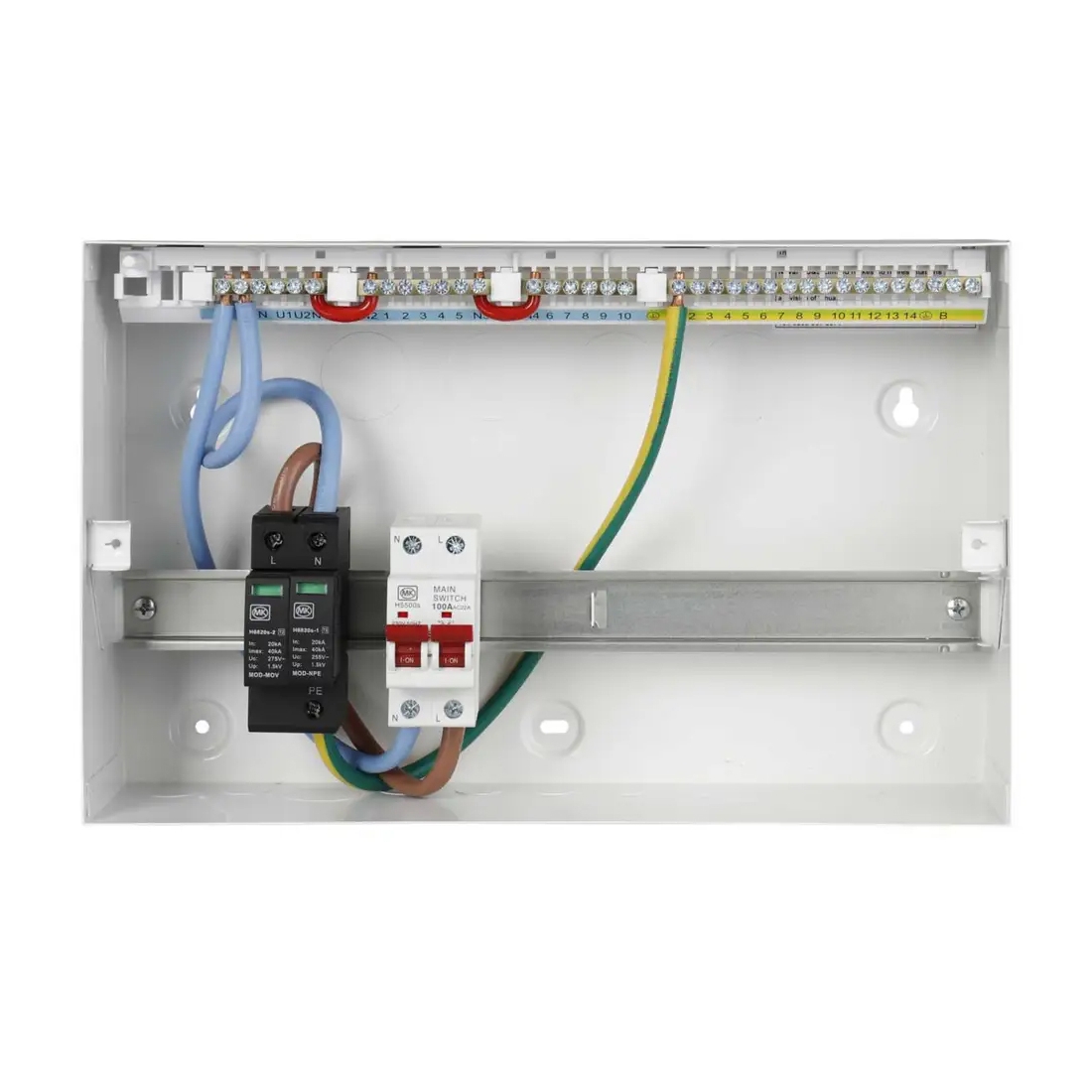

The MK Sentry YS5716SMET-PP 12 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit is an installer-ready solution that reduces installation time by arriving supplied with 3 x 6A, 1 x 16A and 4 x 32A Type A RCBOs, leaving 4 spare module positions for future expansion. Featuring a 100A double pole switch isolator and an integrated Type 2 Surge Protection Device (SPD), it provides comprehensive protection against overloads, short circuits, earth leakage faults and transient overvoltages that can damage valuable electrical equipment. Manufactured from a robust steel enclosure and tested to BS EN 61439-3, the MK Sentry range incorporates practical installation features including a floating busbar, colour-coded terminals, captive screws and generous cable space for faster, neater wiring. Ideal for new-build homes, consumer unit upgrades and rewires, the YS5716SMET-PP delivers dependable performance, high integrity protection and the flexibility to accommodate future electrical additions.

MK Sentry YS5716SMET-PP Features

  • MK Sentry YS5716SMET-PP pre-populated metal consumer unit
  • 12 usable outgoing ways (16-module enclosure)
  • Supplied with: 3 x 6A Type A RCBOs, 1 x 16A Type A RCBO, 4 x 32A Type A RCBOs, 4 blank modules for future circuit expansion
  • 100A double pole switch isolator
  • Integrated Type 2 Surge Protection Device (SPD)
  • Individual RCBO protection helps minimise nuisance tripping
  • Heavy-duty steel enclosure with white powder-coated finish
  • Surface mounting design
  • Floating busbar system for quicker installation
  • Raised DIN rail provides improved wiring access
  • Colour-coded and numbered neutral and earth terminals
  • Backed-out captive combination-head terminal screws
  • Multiple knockouts for flexible cable entry
  • Rated operational voltage: 230V AC, 50Hz
  • Busbar rating: 100A
  • Short circuit rating: 16kA
  • Manufactured to BS EN 61439-3
  • Front protection rating: IP4X (IP2XC when installed)
  • Dimensions: 382mm (W) x 244mm (H) x 116mm (D)
  • Suitable for modern domestic electrical installations requiring 18th Edition compliant circuit protection
