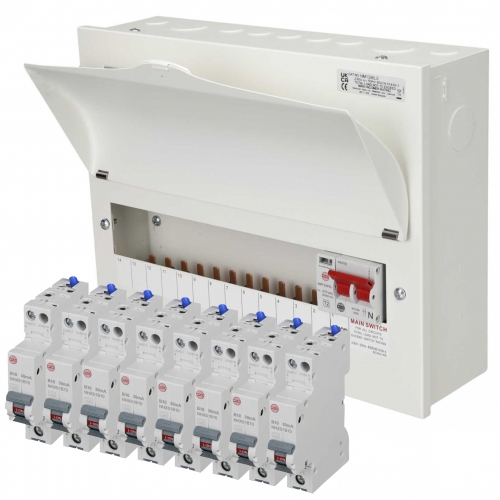

Wylex NM1306LS-PP NM Series 13 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 3x6A + 1x16A + 4x32A RCBOs & 5 Blank Modules
The Wylex NM1306LS-PP is a pre-populated 13-way surge protected consumer unit designed for fast, efficient installation in modern domestic electrical systems. Supplied with a 100A switch isolator, Type 2 SPD, eight RCBOs and five spare module spaces, it provides reliable circuit protection with excellent capacity for future expansion.
Order code: NM1306LS-PP
Manufacturer:
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Wylex NM1306LS-PP Description

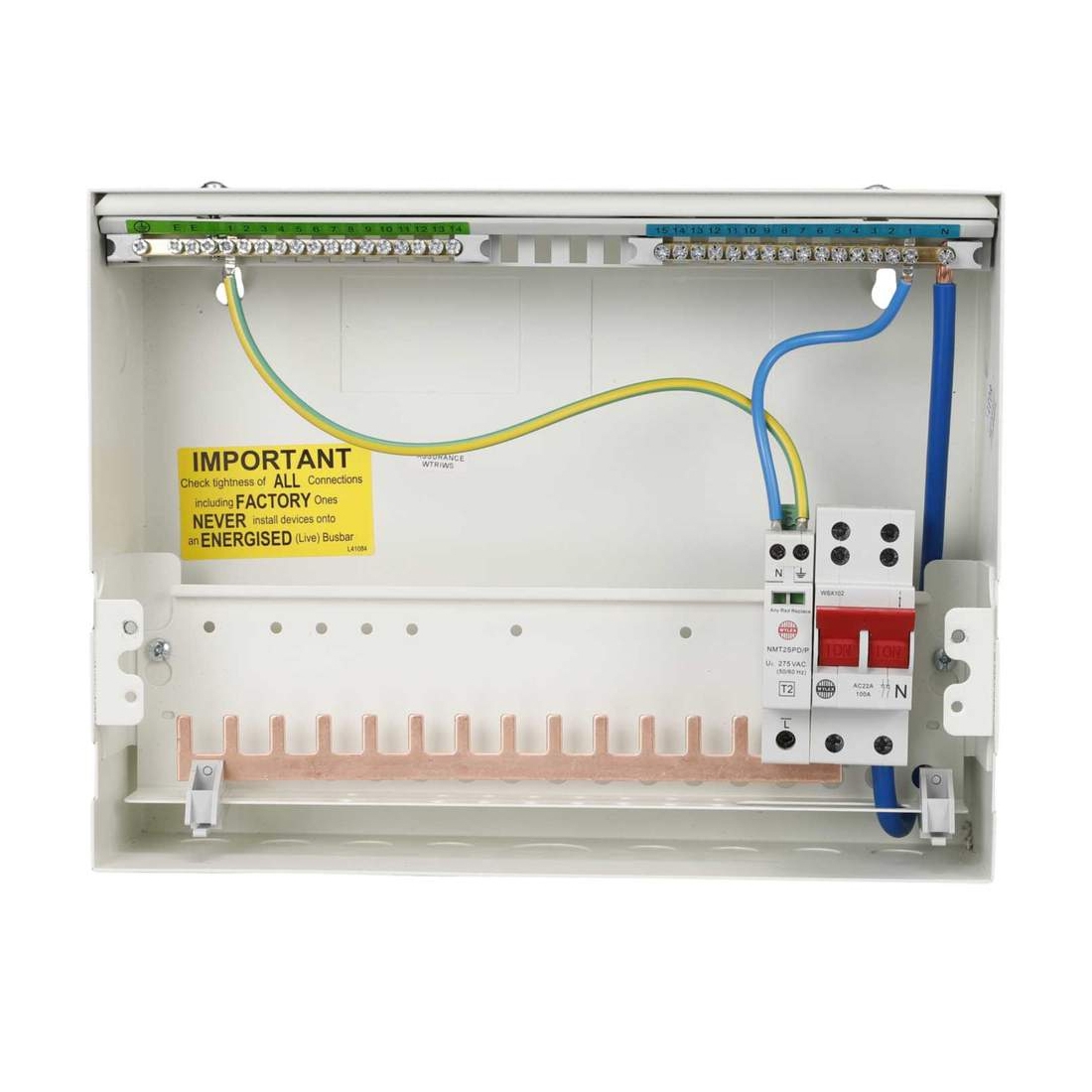

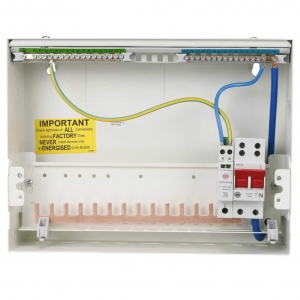

The Wylex NM1306LS-PP NM Series 13 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit is an installer-ready solution that combines convenience, safety and flexibility. Factory fitted with 3 x 6A, 1 x 16A and 4 x 32A RCBOs, along with a 100A double pole main switch, integrated Type 2 Surge Protection Device (SPD) and 5 blank module spaces, it significantly reduces installation time while leaving ample room for future circuit additions. Individual RCBO protection helps minimise nuisance tripping by isolating only the affected circuit, while the Type 2 SPD safeguards valuable electronic equipment against transient overvoltages caused by lightning strikes and switching events. Constructed from a robust steel enclosure with a curved visor, fixed busbar assembly and temporary locking facility, the NM Series is manufactured to BS EN 61439-3 and accepts the full range of Wylex MCBs, RCBOs and AFDDs, making it an ideal choice for new installations, rewires and consumer unit upgrades.
Wylex NM1306LS-PP Features
- Wylex NM1306LS-PP pre-populated metal consumer unit
- 13 outgoing ways (16-module enclosure)
- Supplied with: 3 x 6A RCBOs, 1 x 16A RCBO, 4 x 32A RCBOs, 5 blank modules for future circuit expansion
- 100A double pole switch isolator
- Integrated Type 2 Surge Protection Device (SPD)
- Individual RCBO protection helps reduce nuisance tripping
- Accepts Wylex miniature MCBs, RCBOs and AFDDs
- 100A fixed busbar assembly
- Full steel enclosure with curved visor
- Temporary locking facility for added security during installation
- Surface mounting design
- Rated operational voltage: 230V AC
- Frequency: 50Hz
- Main switch rating: 100A
- Number of poles: 2
- Degree of protection: IP2XC
- Manufactured to BS EN 61439-3
- Dimensions: 343mm (W) x 261mm (H) x 121mm (D)
- Suitable for modern 18th Edition compliant domestic electrical installations.
