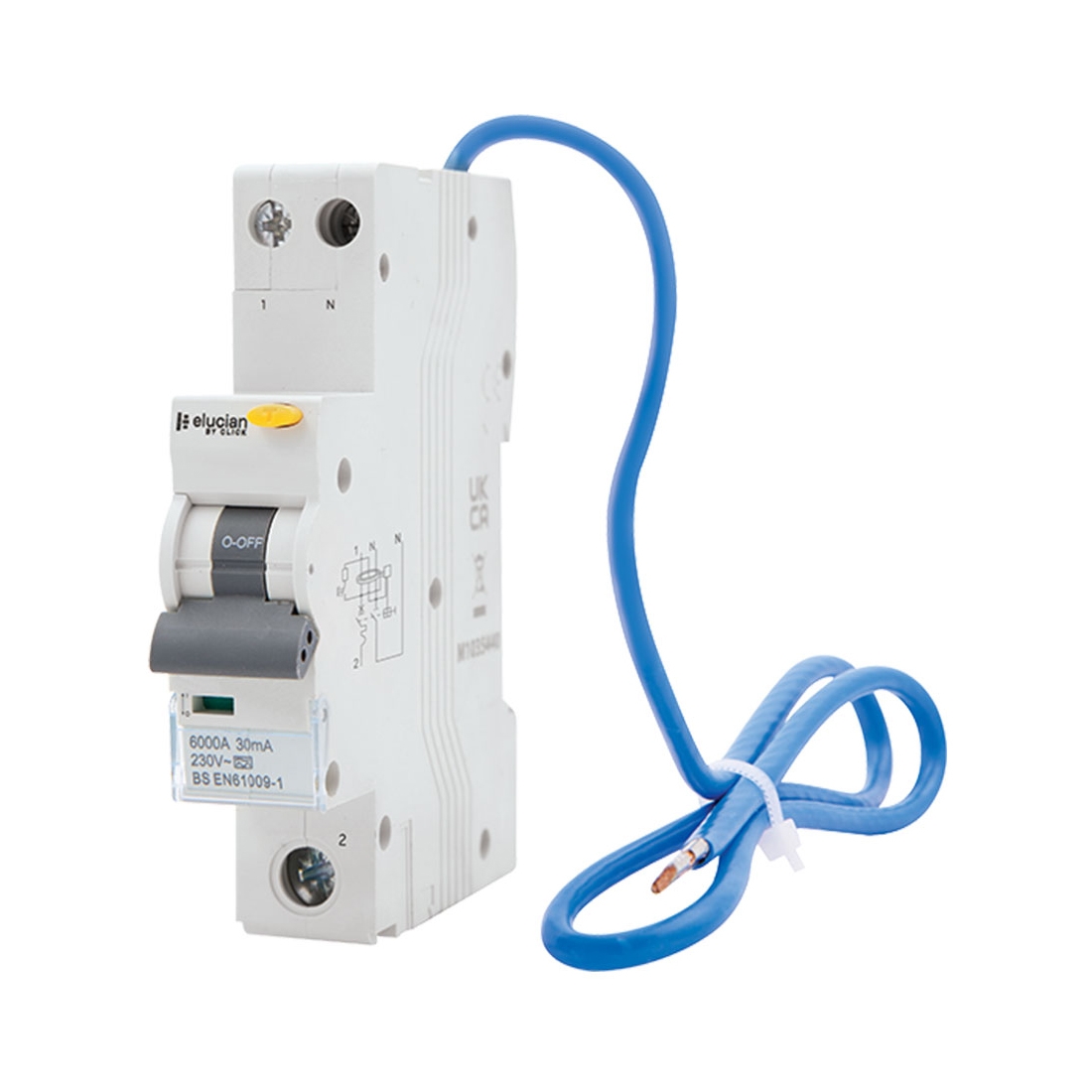

Scolmore CU1RCBOD10B Elucian 1 Module 10A 6kA 30mA 1P+SN Bi-Directional Type A B Curve RCBO - For Domestic Installations

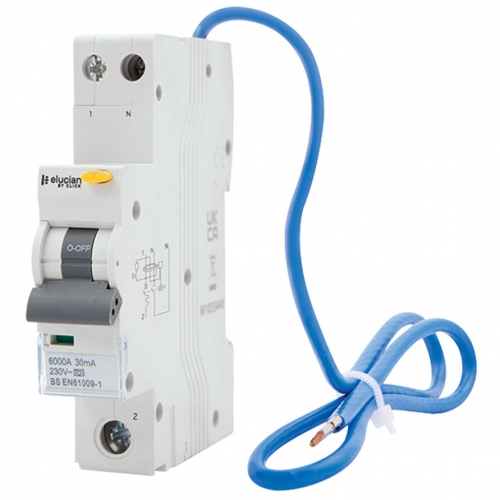

Scolmore CU1RCBOD10B Elucian

The Scolmore Elucian CU1RCBOD10B 10A Type A Bi-Directional RCBO combines 30mA residual current protection with B Curve overcurrent protection in a compact single-module design. Featuring 1 pole + switched neutral operation and a true 6kA breaking capacity, it provides flexible circuit protection for modern electrical installations.

Order code: CU1RCBOD10B
Manufacturer: Scolmore
GTIN:

£ 18.25 incl. VAT
£ 15.21 excl. VAT

Trade Price: £ 75.40
You SAVE
£ 60.19 or 80%
Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Scolmore Elucian CU1RCBOD10B Description

The Scolmore Elucian CU1RCBOD10B Bi-Directional RCBO combines residual current and overcurrent protection within one compact device. Rated at 10A with a B Curve tripping characteristic and 30mA residual current sensitivity, this Type A RCBO provides protection against earth leakage, overload and short-circuit conditions while occupying just one module within a compatible Elucian consumer unit.

Its bi-directional design allows the device to accommodate current flow in either direction, providing greater flexibility for modern electrical systems where power may be supplied from more than one direction. The 1 pole + switched neutral configuration provides switching of both line and neutral, while the Type A residual current characteristic is designed to respond to AC and pulsating DC residual currents.

With a true 6kA breaking capacity, 240V AC operating voltage and compact 17.8mm width, the CU1RCBOD10B delivers high-performance circuit protection without taking up unnecessary consumer unit space. A 450mm neutral tail and generous terminal capacities further enhance installation flexibility, making this 10A Elucian RCBO a practical choice for residential and commercial circuit protection applications.

Scolmore Elucian CU1RCBOD10B Features

  • Product type: Bi-Directional RCBO
  • Configuration: 1 Pole + Switched Neutral
  • Rated current: 10A
  • Residual trip current: 30mA
  • Tripping characteristic: B Curve
  • RCD type: Type A
  • Bi-directional: Yes
  • Rated breaking capacity: True 6kA
  • Rated operational voltage: 240V AC
  • Frequency: 50/60Hz
  • Impulse withstand voltage: 4kV
  • Neutral tail length: 450mm
  • Width: 17.8mm
  • Height: 91.8mm
  • Depth: 76.6mm
  • Number of modules: 1
  • Operating temperature: -25°C to +40°C
  • Mechanical endurance: 20,000 operations
  • Electrical endurance: 5,000 operations
  • Incoming terminal capacity: 25mm² flexible / 32mm² rigid
  • Outgoing terminal capacity: 16mm² flexible / 25mm² rigid
  • Mounting: DIN rail
  • Colour: Light Grey
  • Combines residual current and overcurrent protection in one compact device
  • Large terminal capacity for increased installation flexibility
  • Designed for use within the Elucian consumer unit and circuit protection range
  • Standard: BS EN 61009-1
  • 3-year manufacturer warranty
