Scolmore Elucian RCBOs
The Scolmore Elucian RCBO range combines residual current and overcurrent protection within a single compact device, providing individual protection for circuits within Elucian consumer units. Available across a choice of current ratings, the range includes 30mA Type A B Curve RCBOs designed to respond to AC and pulsating DC residual currents while also providing overload and short-circuit protection. The latest Elucian bi-directional RCBOs add greater flexibility by allowing the source of supply to be connected to either set of connection terminals, supporting modern electrical systems where current may flow in either direction. These new 1 pole + switched neutral bi-directional models feature a true 6kA breaking capacity and compact single-module design, helping installers maximise available consumer unit space. With Elucian's established consumer unit compatibility and a broad selection of current ratings, the range provides a flexible circuit protection solution for modern domestic and commercial electrical installations.
Showing 1 - 16 of 16 items
SCOLMORE ELUCIAN TYPE A RCBOS

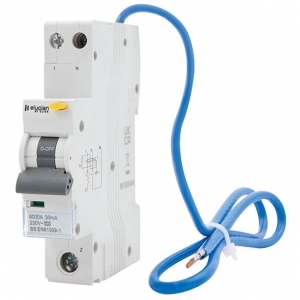

SCOLMORE ELUCIAN TYPE A BI-DIRECTIONAL REDUCED HEIGHT RCBOS
Showing 1 - 16 of 16 items
Key Features & Benefits
- Type A residual current protection – designed to detect both AC and pulsating DC residual currents
- 30mA sensitivity across the Type A RCBO range for individual circuit residual current protection
- B Curve overcurrent characteristics provide protection against overload and short-circuit conditions
- Range of current ratings available to suit different final circuit requirements
- New bi-directional RCBO range provides additional flexibility for modern electrical installations
- Bi-directional operation allows the source of supply to be connected to either set of connection terminals
- New bi-directional models feature 1 pole + switched neutral operation
- True 6kA breaking capacity across the new bi-directional range
- Compact 17.8mm single-module width on the bi-directional models helps maximise available consumer unit capacity
- 240V AC, 50/60Hz operation on the new bi-directional RCBO range
- 450mm neutral tail on bi-directional models
- IP20 rated bi-directional RCBO construction
- Designed for compatibility with Scolmore Elucian consumer units and circuit protection equipment
