Scolmore CU1RCBOD32B Elucian 1 Module 32A 6kA 30mA 1P+SN Bi-Directional Type A B Curve RCBO - For Domestic Installations

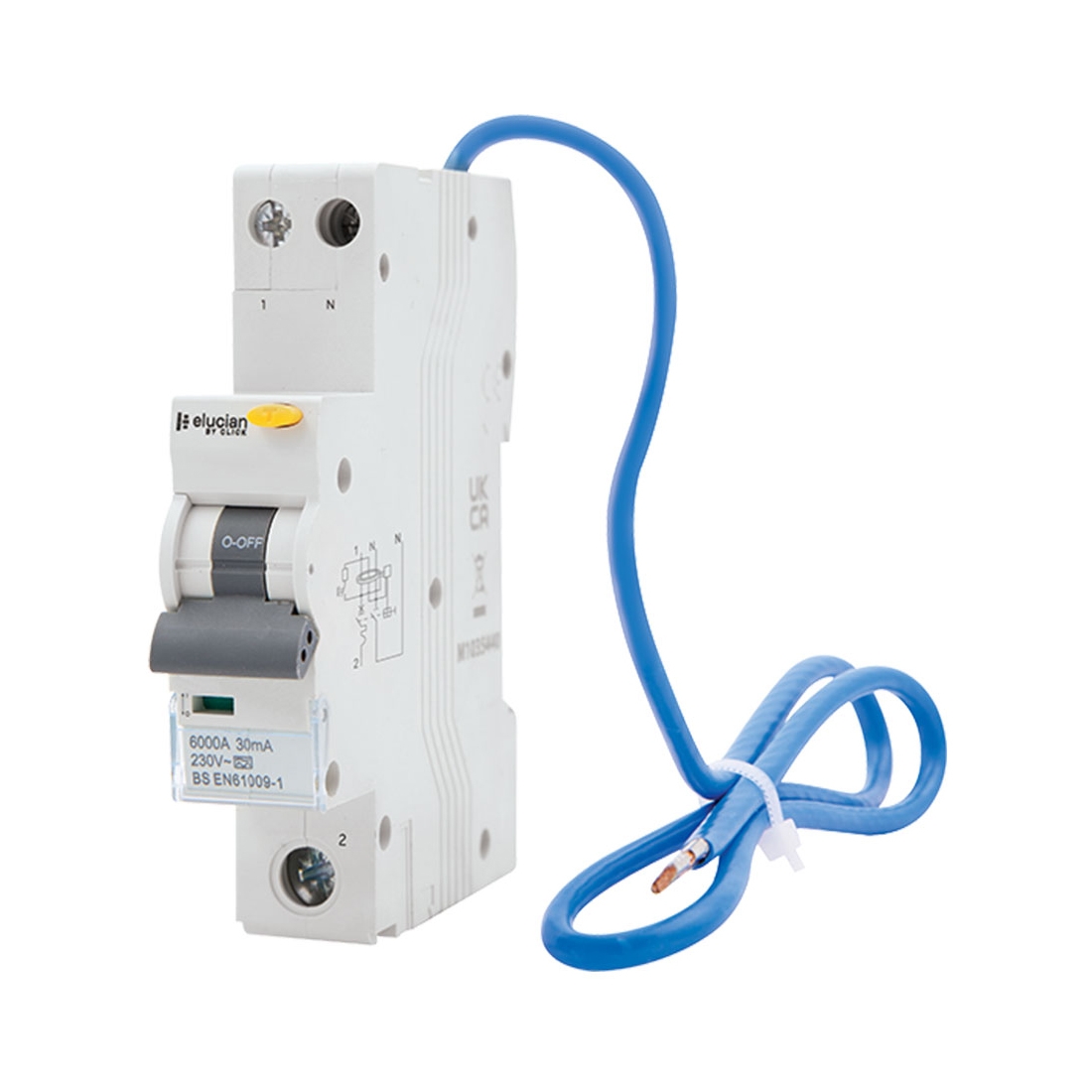

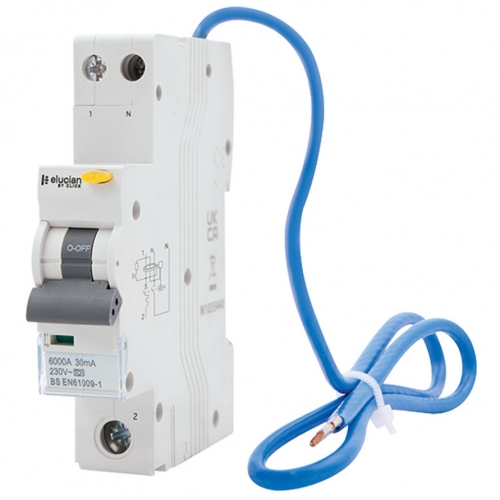

Scolmore CU1RCBOD32B Elucian

The Scolmore Elucian CU1RCBOD32B 32A Type A Bi-Directional RCBO combines 30mA residual current protection with B Curve overcurrent protection in a compact single-module design. Featuring switched neutral operation and a true 6kA breaking capacity, it delivers versatile circuit protection for modern electrical installations.

Order code: CU1RCBOD32B
Manufacturer: Scolmore
GTIN:

£ 18.25 incl. VAT
£ 15.21 excl. VAT

Trade Price: £ 75.40
You SAVE
£ 60.19 or 80%
Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Scolmore Elucian CU1RCBOD32B Description

The Scolmore Elucian CU1RCBOD32B Bi-Directional RCBO combines earth fault, overcurrent and short-circuit protection within one compact device. Rated at 32A with a B Curve tripping characteristic and 30mA residual current sensitivity, this Type A RCBO provides individual circuit protection while occupying just a single module within a compatible Elucian consumer unit.

Featuring bi-directional operation, the CU1RCBOD32B allows the source of supply to be connected to either set of connection terminals, providing greater flexibility for electrical systems where current may flow in either direction. The 1 pole + switched neutral configuration switches both line and neutral, while Type A residual current protection is designed to respond to AC and pulsating DC residual currents.

With a true 6kA breaking capacity, 240V AC rating and compact 17.8mm width, this 32A Elucian RCBO delivers comprehensive circuit protection while making efficient use of consumer unit space. Large terminal capacities and a 450mm neutral tail further enhance installation flexibility, making the CU1RCBOD32B a practical solution for a wide range of domestic and commercial circuit protection applications.

Scolmore Elucian CU1RCBOD32B Features

  • Product type: Bi-Directional RCBO
  • Configuration: 1 Pole + Switched Neutral
  • Rated current: 32A
  • Residual trip current: 30mA
  • Tripping characteristic: B Curve
  • RCD type: Type A
  • Bi-directional: Yes
  • Rated breaking capacity: True 6kA
  • Rated operational voltage: 240V AC
  • Frequency: 50/60Hz
  • Impulse withstand voltage: 4kV
  • IP rating: IP20
  • Neutral tail length: 450mm
  • Dimensions: 17.8mm (W) x 91.8mm (H) x 76.6mm (D)
  • Width: Single module – 17.8mm
  • Operating temperature: -25°C to +40°C
  • Mechanical endurance: 20,000 operations
  • Electrical endurance: 5,000 operations
  • Incoming terminal capacity: 25mm² flexible / 32mm² rigid
  • Outgoing terminal capacity: 16mm² flexible / 25mm² rigid
  • Device terminals: Screwed lug and pin
  • Ground fault trip: Electronic/Electromagnetic
  • Overcurrent trip: Thermal/Magnetic
  • Colour: Light Grey
  • Provides combined earth fault, overcurrent and short-circuit protection
  • Designed for use within the Elucian consumer unit and circuit protection range
  • Standard: BS EN 61009-1
  • 3-year manufacturer warranty
