Scolmore CU1RCBOD6B Elucian 1 Module 6A 6kA 30mA 1P+SN Bi-Directional Type A B Curve RCBO - For Domestic Installations

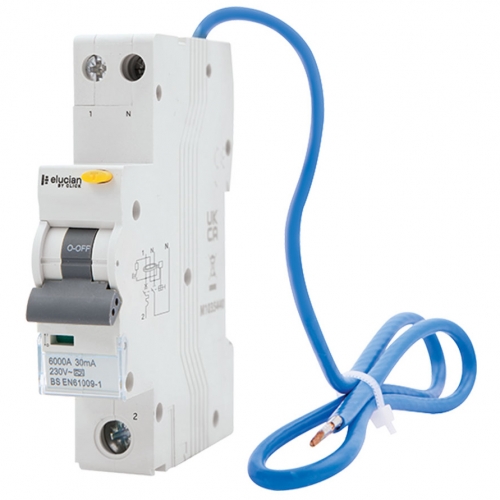

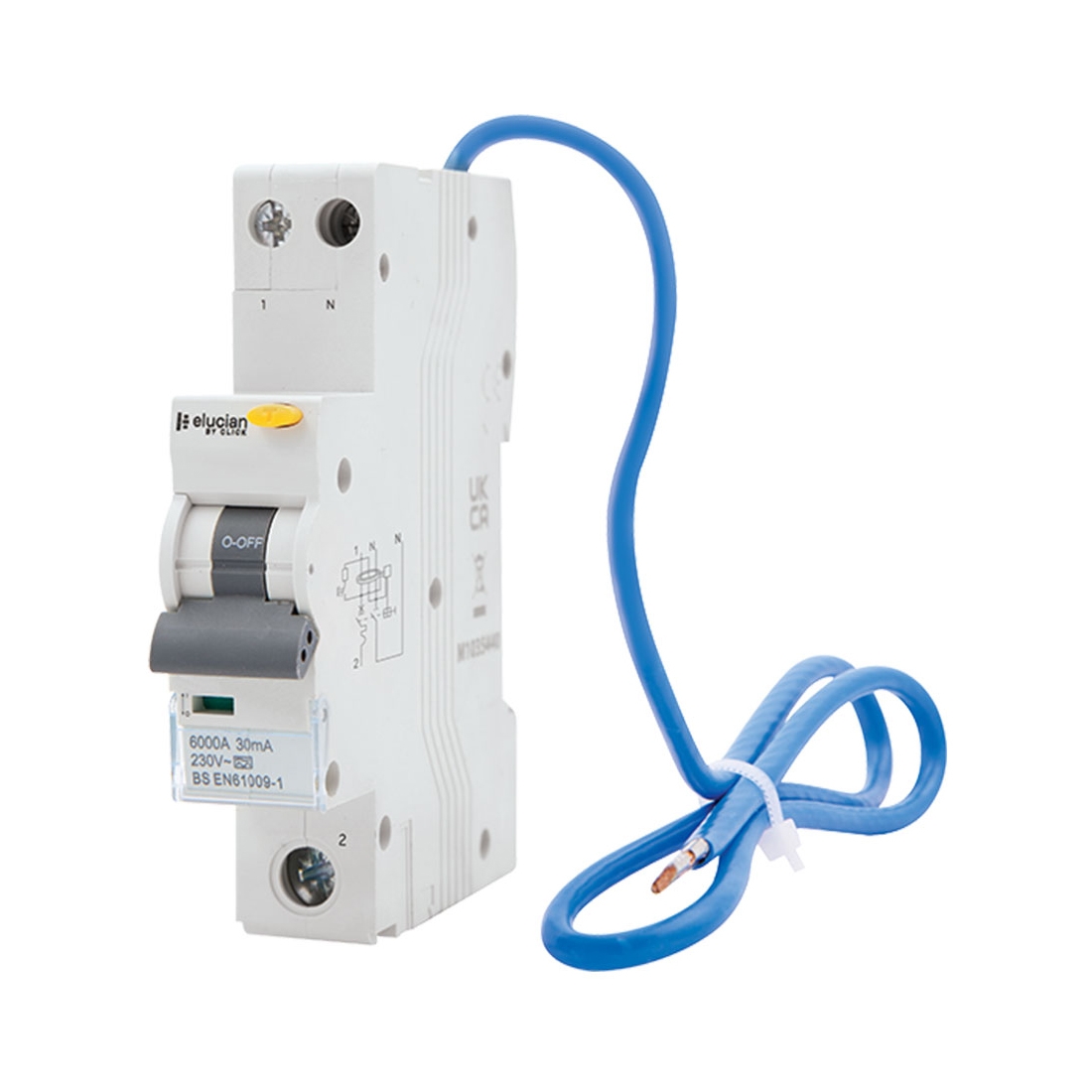

Scolmore CU1RCBOD6B Elucian

The Scolmore Elucian CU1RCBOD6B 6A Type A Bi-Directional RCBO combines 30mA residual current protection with B Curve overcurrent protection in a compact single-module design. Featuring 1 pole + switched neutral operation and a true 6kA breaking capacity, it provides versatile circuit protection for Elucian consumer units.

Order code: CU1RCBOD6B
Manufacturer: Scolmore
GTIN:

£ 18.25 incl. VAT
£ 15.21 excl. VAT

Trade Price: £ 75.40
You SAVE
£ 60.19 or 80%
Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Scolmore Elucian CU1RCBOD6B Description

The Scolmore Elucian CU1RCBOD6B Bi-Directional RCBO is a compact circuit protection device combining residual current and overcurrent protection within a single module. Rated at 6A with a B Curve characteristic and 30mA trip current, it is a Type A RCBO designed to provide protection against earth leakage, overload and short-circuit conditions.

Unlike conventional unidirectional devices, the CU1RCBOD6B features bi-directional operation, allowing the source of supply to be connected to either set of connection terminals where appropriate. This makes the Elucian bi-directional RCBO range particularly relevant to modern electrical installations where current may flow in either direction, including applications involving alternative or distributed power sources.

The device features 1 pole + switched neutral operation, disconnecting both the line and neutral conductors when operated. Its true 6kA short-circuit capacity, compact 17.8mm single-module width and 450mm neutral tail make it a practical addition to the Elucian circuit protection range. Designed with installers in mind, the CU1RCBOD6B provides a compact and flexible solution for protecting individual final circuits.

Scolmore Elucian CU1RCBOD6B Features

  • Product type: Bi-Directional RCBO
  • Poles: 1 Pole + Switched Neutral
  • Rated current: 6A
  • Trip current: 30mA
  • Tripping curve: B Curve
  • RCD type: Type A
  • Bi-directional: Yes
  • Short-circuit breaking capacity: True 6kA
  • Rated operational voltage: 240V AC
  • Neutral tail length: 450mm
  • Width: 17.8mm
  • Height: 91.8mm
  • Depth: 76.6mm
  • Compact single-module design
  • Combines residual current and overcurrent protection in one device
  • Switched neutral operation
  • Suitable for applications where current may flow in either direction
  • Operating temperature: -25°C to +40°C
  • Large terminal capacity
  • Designed for use within the Elucian consumer unit and circuit protection range
  • 3-year manufacturer warranty
