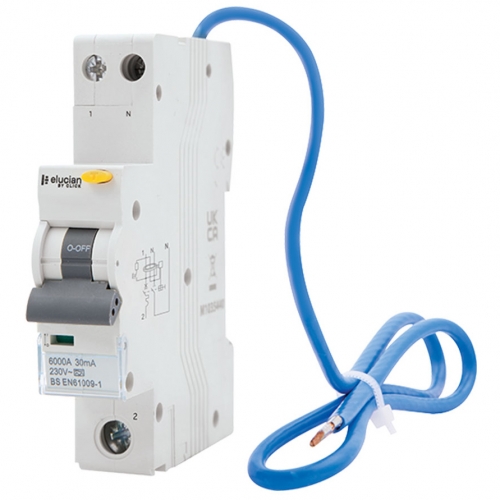

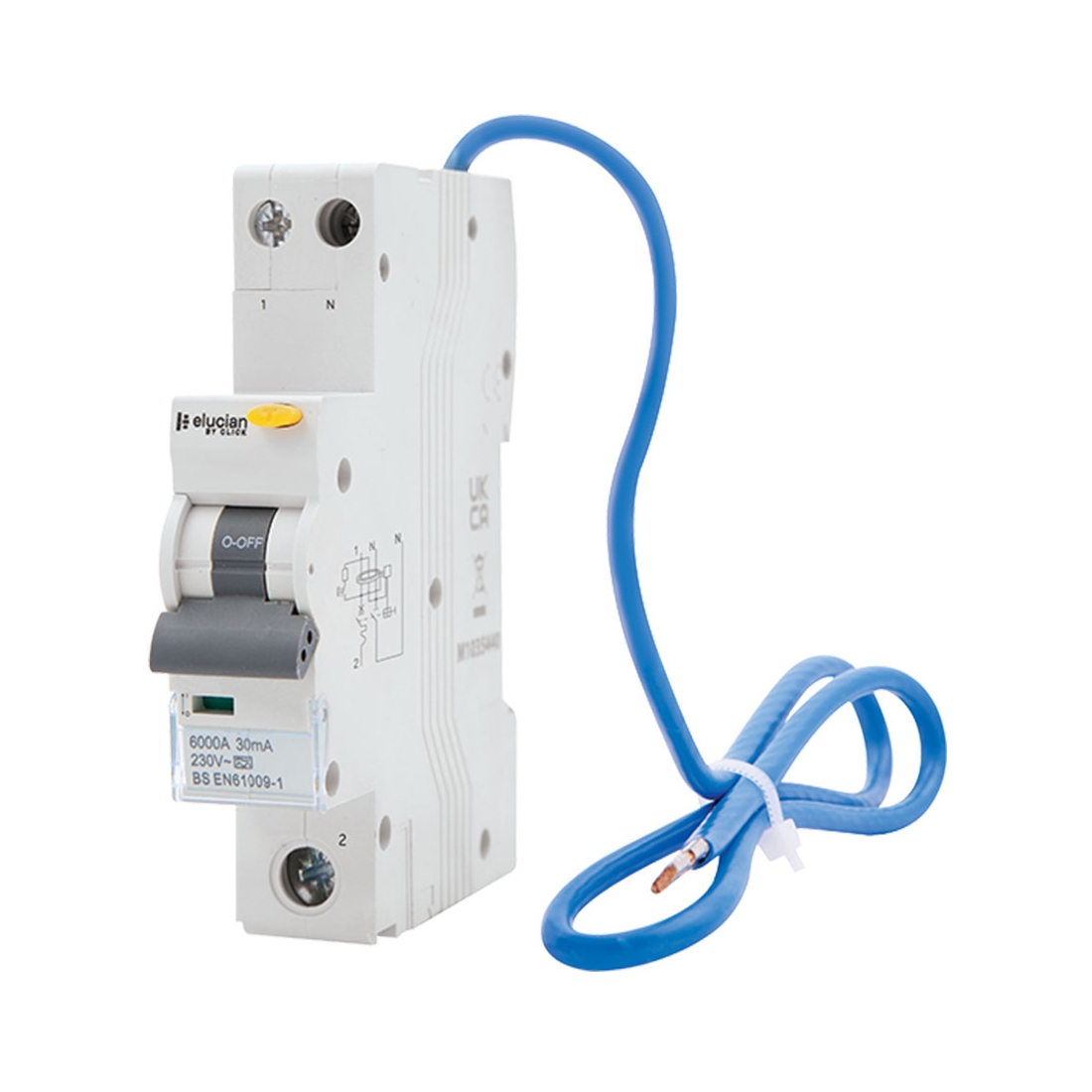

Scolmore CU1RCBOD45B Elucian 1 Module 45A 6kA 30mA 1P+SN Bi-Directional Type A B Curve RCBO - For Domestic Installations

Scolmore CU1RCBOD45B Elucian

The Scolmore Elucian CU1RCBOD45B 45A Type A Bi-Directional RCBO combines 30mA residual current protection with B Curve overcurrent protection in a compact single-module design. With switched neutral operation and a true 6kA breaking capacity, it provides versatile circuit protection for modern electrical installations.

Order code: CU1RCBOD45B
Manufacturer: Scolmore
GTIN:

£ 18.25 incl. VAT
£ 15.21 excl. VAT

Trade Price: £ 75.40
You SAVE
£ 60.19 or 80%
Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Scolmore Elucian CU1RCBOD45B Description

The Scolmore Elucian CU1RCBOD45B Bi-Directional RCBO provides combined earth fault, overcurrent and short-circuit protection within one compact device. Rated at 45A with a B Curve tripping characteristic and 30mA residual current sensitivity, this Type A RCBO provides individual circuit protection while occupying just a single module within a compatible Elucian consumer unit.

Featuring bi-directional operation, the CU1RCBOD45B provides increased flexibility for electrical systems where current may flow through the protective device in either direction. Its 1 pole + switched neutral configuration switches both line and neutral, while Type A residual current protection is designed to respond to AC and pulsating DC residual currents.

With a true 6kA breaking capacity, 240V AC rating and compact 17.8mm width, this 45A Elucian RCBO combines high-performance circuit protection with efficient use of consumer unit space. Large terminal capacities and a 450mm neutral tail further enhance installation flexibility, making the CU1RCBOD45B a practical circuit protection solution for domestic and commercial electrical applications.

Scolmore Elucian CU1RCBOD45B Features

  • Product type: Bi-Directional RCBO
  • Configuration: 1 Pole + Switched Neutral
  • Rated current: 45A
  • Residual trip current: 30mA
  • Tripping characteristic: B Curve
  • RCD type: Type A
  • Bi-directional: Yes
  • Rated breaking capacity: True 6kA
  • Rated operational voltage: 240V AC
  • Frequency: 50/60Hz
  • Impulse withstand voltage: 4kV
  • Rated making & breaking capacity: 500A
  • IP rating: IP20
  • Neutral tail length: 450mm
  • Dimensions: 17.8mm (W) x 91.8mm (H) x 76.6mm (D)
  • Width: 17.8mm single-module design
  • Operating temperature: -25°C to +40°C
  • Mechanical endurance: 20,000 operations
  • Electrical endurance: 5,000 operations
  • Incoming terminal capacity: 25mm² flexible / 32mm² rigid
  • Outgoing terminal capacity: 16mm² flexible / 25mm² rigid
  • Incoming terminal torque: 2Nm
  • Outgoing terminal torque: 1.2Nm
  • Device terminals: Screwed lug & pin
  • Ground fault trip: Electronic/Electromagnetic
  • Overcurrent trip: Thermal/Magnetic
  • Colour: Light Grey
  • Provides combined earth fault, overcurrent and short-circuit protection
  • Designed for use within the Elucian consumer unit and circuit protection range
  • Standard: BS EN 61009-1
  • 3-year manufacturer warranty
