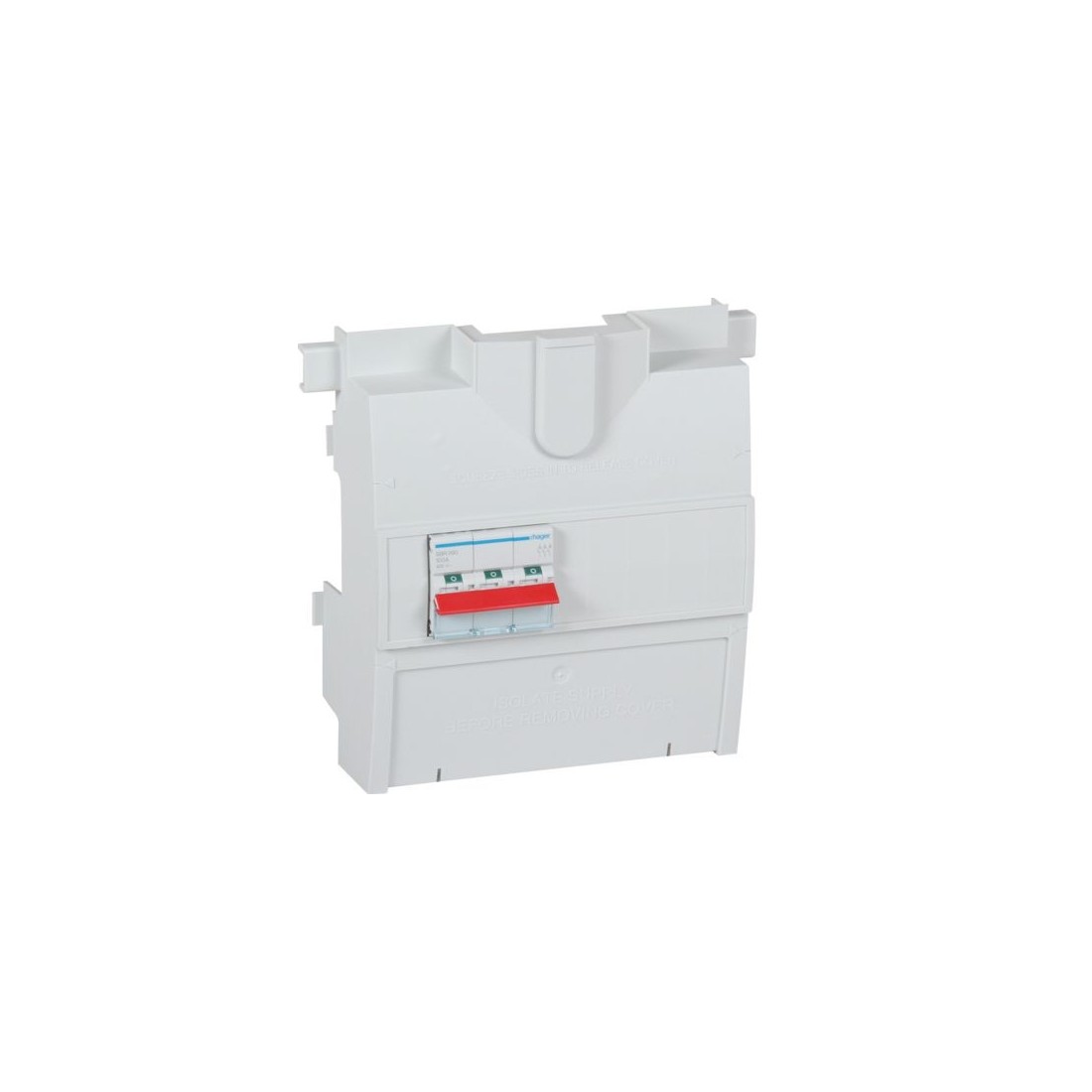

Hager JK11004S 4 Pole Switch Disconnector Incomer Kit TP/100A
The Hager JK11004S 4 Pole Switch Disconnector Incomer Kit is a TP/100A 4 pole isolator for Hager distribution boards.
Order code: JK11004S
Manufacturer: Hager
GTIN: 5015652250319
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Hager JK11004S Description

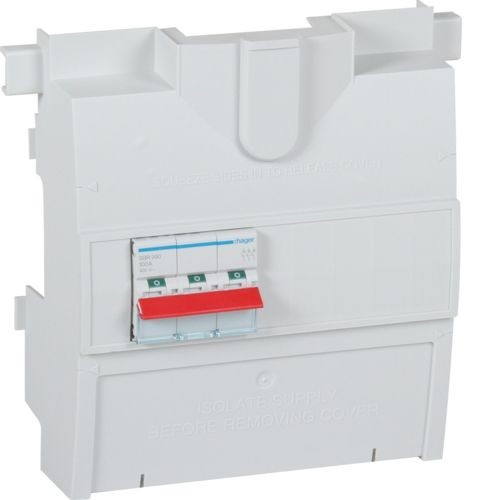

The Hager Invicta3 JK11004S is 4 module 100A four pole mains switch isolator kit to be used in conjunction with the Invicta3 distribution boards. Allows complete isolation of all circuits within the distribution board
The kit contains: 1 x terminal shield, 1 x 100A 4 Pole modular switch, 3 x Incomer Links, 3 x M5 carp nuts, 1 x caged terminal & M6 carp nut. Everything needed to install a mains switch in any 125A Invicta3 distribution board.
Hager JK11004S Features
- Hager Invicta3 JK11004S mains switch isolator kit
- 4 module triple pole isolator
- Rating: 100A
- Fits within any 125A Invicta3 type B three phase distribution board
- Contains everything needed to install the mains switch
- 1 x Terminal Shield
1 x SBN490 100A 4 Pole Modular Switch / Isolator and DIN Rail
4 x Incomer L1, L2, L3 & N - to fit M6 stud link
3 x M5 Carp Nuts
1 x Caged Terminal and M6 Carp Nut - Dimensions Switch Isolator: Height: 84mm | Width: 70mm | Depth: 70mm
- Dimensions Incoming Shield: Height: 200mm | Width: 170mm | Depth: 90mm
