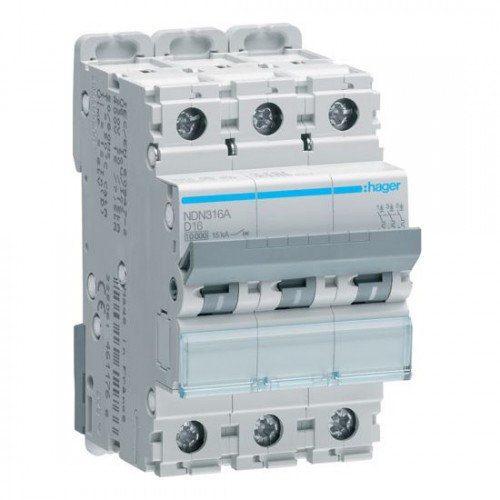

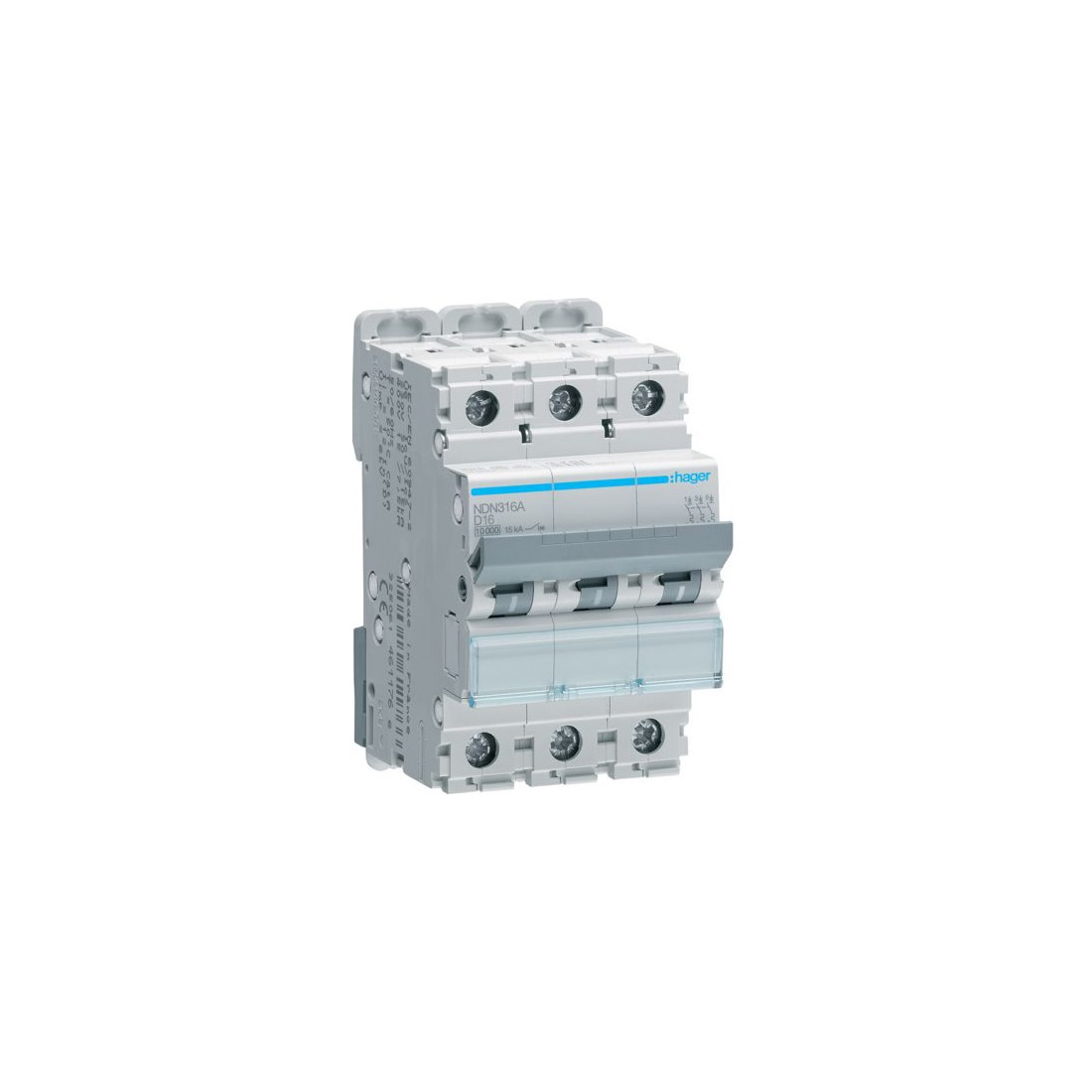

Hager NDN316A 3 Module Triple Pole Type D Miniature Circuit Breaker MCB For Commercial Installations 16A 10kA

Hager NDN316A Description

The Hager NDN316A is a 3 module 16A 10kA triple pole DIN rail mounting miniature circuit breaker MCB with type D tripping characteristics suitable for installation in Hager Invicta3 commercial distribution boards.

It provides protection against overload and short circuits and has been designed to provide comprehensive circuit protection isolation and protection by interrupting the power supply, preventing damage to the domestic installations.

The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour. The operating dolly on the device may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate. There is also a flap under which you can write what the MCB is responsible for.

Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor.

Complies with British Standards EN 60898-2 (10kA) and EN 60947-2 (15kA).

Hager NDN316A Features

• Hager NDN316A 3 module triple pole MCB
• Rated current: 16A
• Rated short circuit breaking capacity: 10kA
• DIN rail mounting
• Type D tripping characteristics
• Trip free mechanism
• For use in Hager Invicta3 commercial distribution boards
• Protects circuits against short circuits and overload current
• Operating dolly on the device may be locked in either the ON or OFF position without affecting the operation of the trip mechanism
• State of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour
• Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor
• Tightening torque: 2.8Nm
• Complies with EN 60898-2 (10kA) and EN 60947-2 (15kA)
• Dimensions: Height: 83mm | Depth: 70mm | Width: 52.5mm
