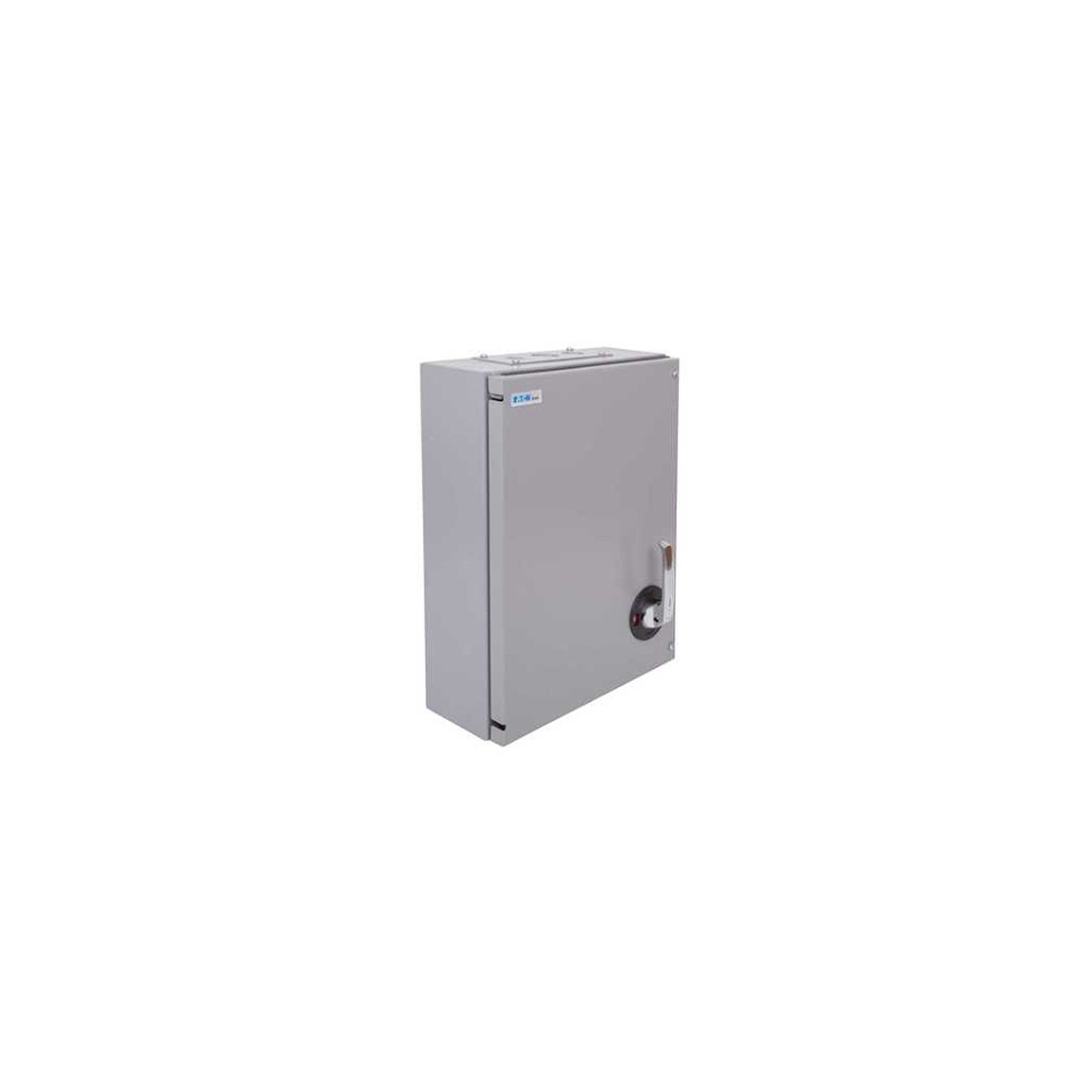

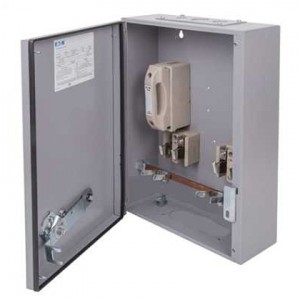

Eaton 100KXDC2F Exel2 Grey Metal Three Phase DP Switch Fuse 100A 415V Height: 503mm | Width: 367mm | Depth: 167mm

Eaton 100KXDC2F Description

The Eaton Exel2 100KXDC2F is a three phase 415V 100A double pole switch fuse designed to isolate and cut-off the current supply with downstream electrical installations for safety purposes during maintenance.

Surface mounted and fabricated from rust-protected sheet steel with a light grey paint finish. Supplied with removable top and bottom endplates incorporating knockouts and gasketed doors giving IP41 protection. Chromium-plated, front-operated handle with with 'ON (I) OFF (O)' indicators. Internal fixing enabling units to be mounted closely side-by-side.

Switches are of the quick make and break type, suitable for use on AC or DC. Units have removable moving contact assemblies to facilitate wiring. Interiors comprise porcelain bases fitted with non-ferrous conducting components.

Eaton HRC fuse links fitted to switch fuses are suitable on systems up to 415V AC. Units are fitted with fuse links of maximum rating but will accept a lower rating if required.

Type tested to BSEN60947-3 and meets the constructional requirements for isolation as specified in BSEN60947-3.

Maximum cable size 70mm².

Eaton 100KXDC2F Features

• Eaton Exel2 100KXDC2F is a 3-phase double pole switch fuse
• 100A 415V AC rated
• Surface mounted
• Fabricated from rust-protected sheet steel
• Light grey paint finish
• Removable top and bottom endplates incorporating knockouts
• Gasketed doors giving IP41 protection
• Chromium-plated, front-operated handle with with 'ON (I) OFF (O)' indicators
• Switches are of the quick make and break type, suitable for use on AC or DC
• Red and green switch position indicators
• Switch can be locked on or off by means of a padlock
• Interiors comprise porcelain bases fitted with non-ferrous conducting components
• Eaton HRC fuse links fitted are suitable on systems up to 415V AC
• Large capacity easy to wire terminals
• Suitable for 70mm² cable
• Internal fixing enabling units to be mounted closely side-by-side
• Tested and approved in accordance with BSEN60947-3
• Dimensions: Height: 503mm | Width: 367mm | Depth: 167mm
