Eaton 30AXTN2 Exel2 Grey Metal Three Phase TPN Switch Disconnector 32A 415V Height: 173mm | Width: 245mm | Depth: 101mm

Eaton 30AXTN2 Description

The Eaton Exel2 30AXTN2 is a three phase 415V 32A triple pole & neutral switch disconnector designed to isolate and cut-off the current supply with downstream electrical installations for safety purposes during maintenance.

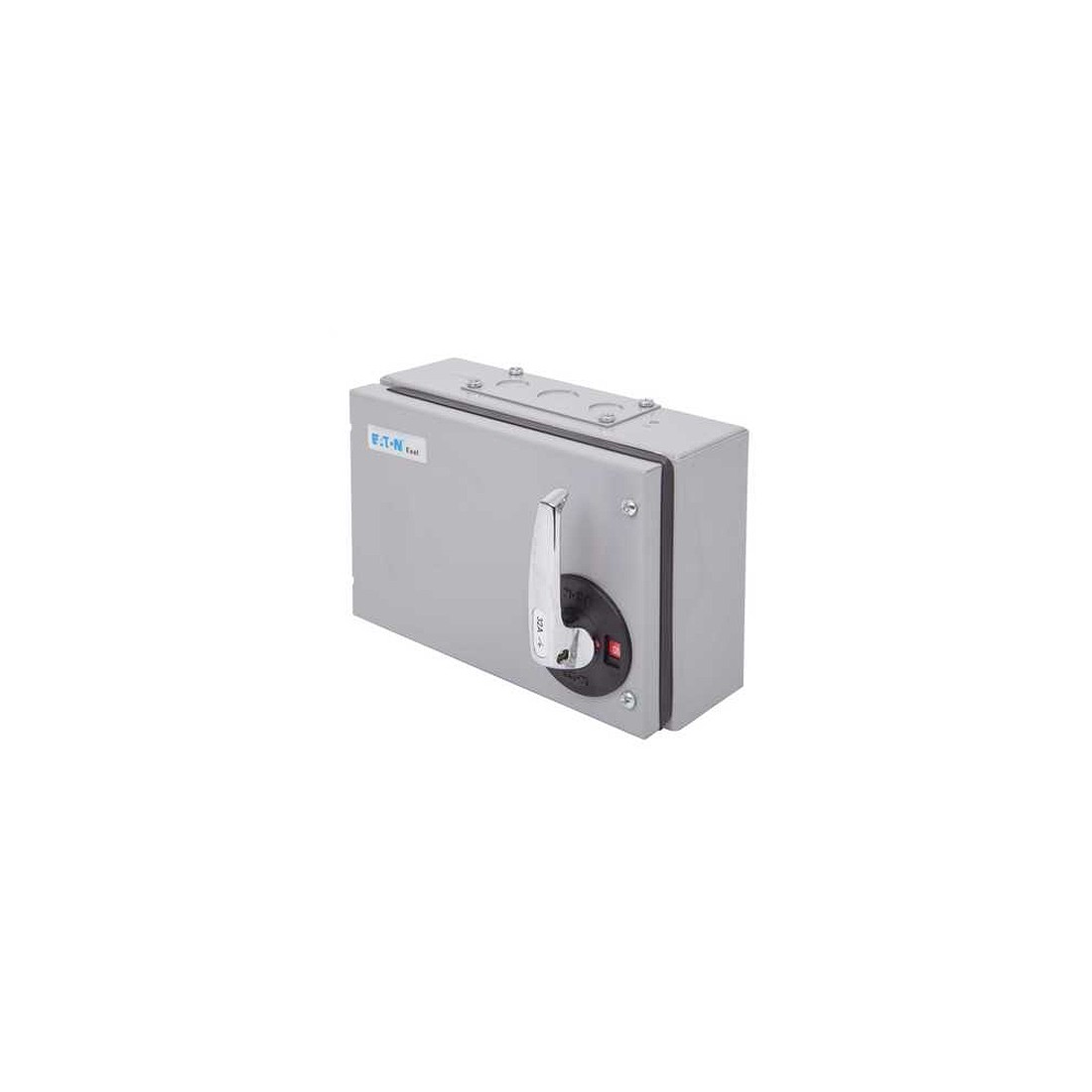

Surface mounted and fabricated from rust-protected sheet steel with a light grey paint finish. Supplied with removable top and bottom endplates incorporating knockouts and gasketed doors giving IP41 protection. Chromium-plated, front-operated handle with with 'ON (I) OFF (O)' indicators. Internal fixing enabling units to be mounted closely side-by-side.

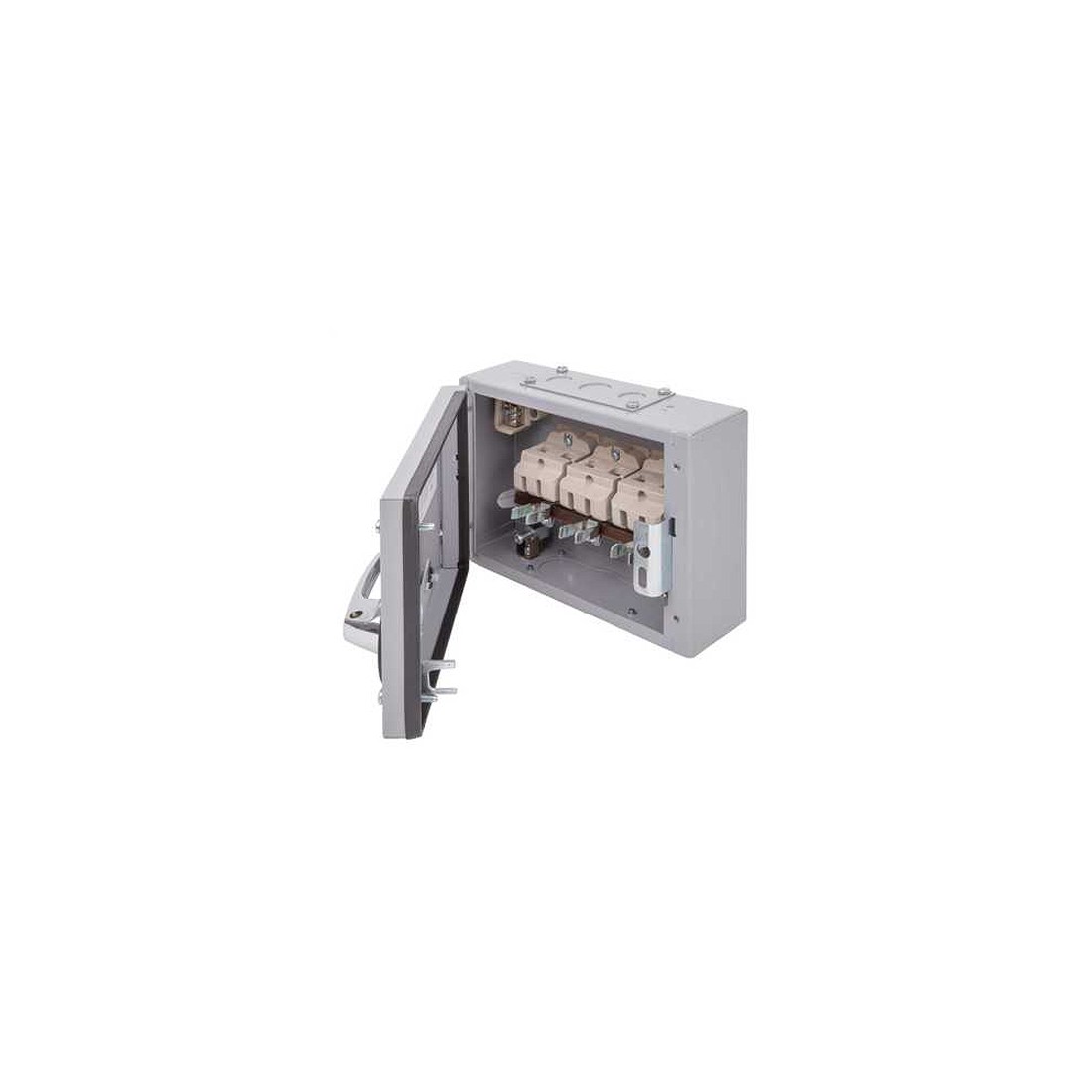

Switches are of the quick make and break type, suitable for use on AC or DC. Units have removable moving contact assemblies to facilitate wiring. Interiors comprise porcelain bases fitted with non-ferrous conducting components.

Type tested to BSEN60947-3 and meets the constructional requirements for isolation as specified in BSEN60947-3.

Maximum cable size 10mm².

Eaton 30AXTN2 Features

• Eaton Exel2 30AXTN2 is a 3-phase triple pole & neutral switch disconnector
• 32A 415V AC rated
• Surface mounted
• Fabricated from rust-protected sheet steel
• Light grey paint finish
• Removable top and bottom endplates incorporating knockouts
• Gasketed doors giving IP41 protection
• Chromium-plated, front-operated handle with with 'ON (I) OFF (O)' indicators
• Switches are of the quick make and break type, suitable for use on AC or DC
• Red and green switch position indicators
• Switch can be locked on or off by means of a padlock
• Interiors comprise porcelain bases fitted with non-ferrous conducting components
• Large capacity easy to wire terminals
• Suitable for 10mm² cable
• Internal fixing enabling units to be mounted closely side-by-side
• Tested and approved in accordance with BSEN60947-3
• Dimensions: Height: 173mm | Width: 245mm | Depth: 101mm
