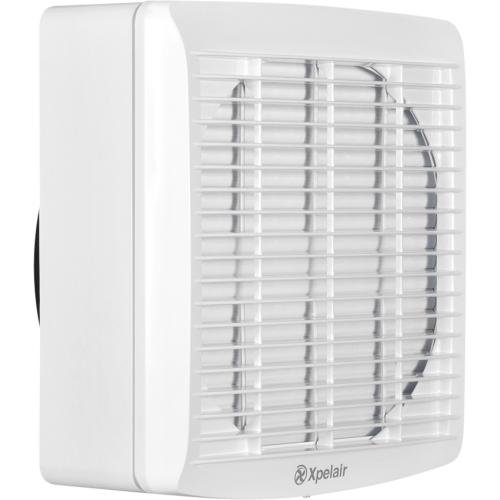

Xpelair GX9 89994AW White Commercial Single Speed Axial Window Fan With Silent Electro-Thermal Shutter & Window Kit IPX4 240V Height: 312mm | Width: 294mm | Spigot DiaØ: 225mm
Order code: GX9
Manufacturer: Xpelair
GTIN: 5013562899949
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Xpelair GX9 Description
Features
• High performance intake/extract axial ventilation unit.
• Choice of optional controllers.
• Suitable for single and sealed double glazing windows and panels up to 25mm.
• Balanced external rotor motor and sickle blade impeller for quiet efficiency.
• Sealed for life maintenance free bearings, suitable for running at any angle.
• Built-in silent action electro-thermal shutter cassette.
• Passive tricklevent facility for background ventilation with fan Off.
• Easy clean high gloss ABS housing with integral finger safety guard.
• Shadow grey external grille for unobtrusive external appearance.
• Tamperproof internal connection safety plug and socket.
• Unique metal ladderstrip / screw connection to external grille for security and weather tight seal.
• IPX4 rated motor.
Technical Specification
|
Order Code |
GX9 |
|
| Remote switch (supplied separately) | yes | |
| Selectable intake, extract or controller operation | yes | |
| Speeds | 2 (controller options apply) | |
| Extract performance (FID, m³/h) | high low |
728 618 |
| Extract performance (FID, l/s) | high low |
202 172 |
| Intake performance (FID, m³/h) | high low |
456 412 |
| Intake performance (FID, l/s) | high low |
127 114 |
| Sound pressure level (dB(A)@3m) | high low |
50 48 |
| Electrical power rating (W) | 41 | |
| Weight (kg) | 4 | |
| Hole (mm) | 257 | |
| Hole with wall liner (mm) | 266 | |
| Guarantee (years, UK) | 3 | |
